Abov MC97F6108A - Figure 92. Boot Process Waveform; Table 28. Boot Process Description

MC97F6108A User’s manual 18. Reset
193
Reset Release
Config Read
POR
:VDD Input
:Internal OSC
󰏎
󰏏
󰏐
󰏑
󰏒
󰏓
󰏔

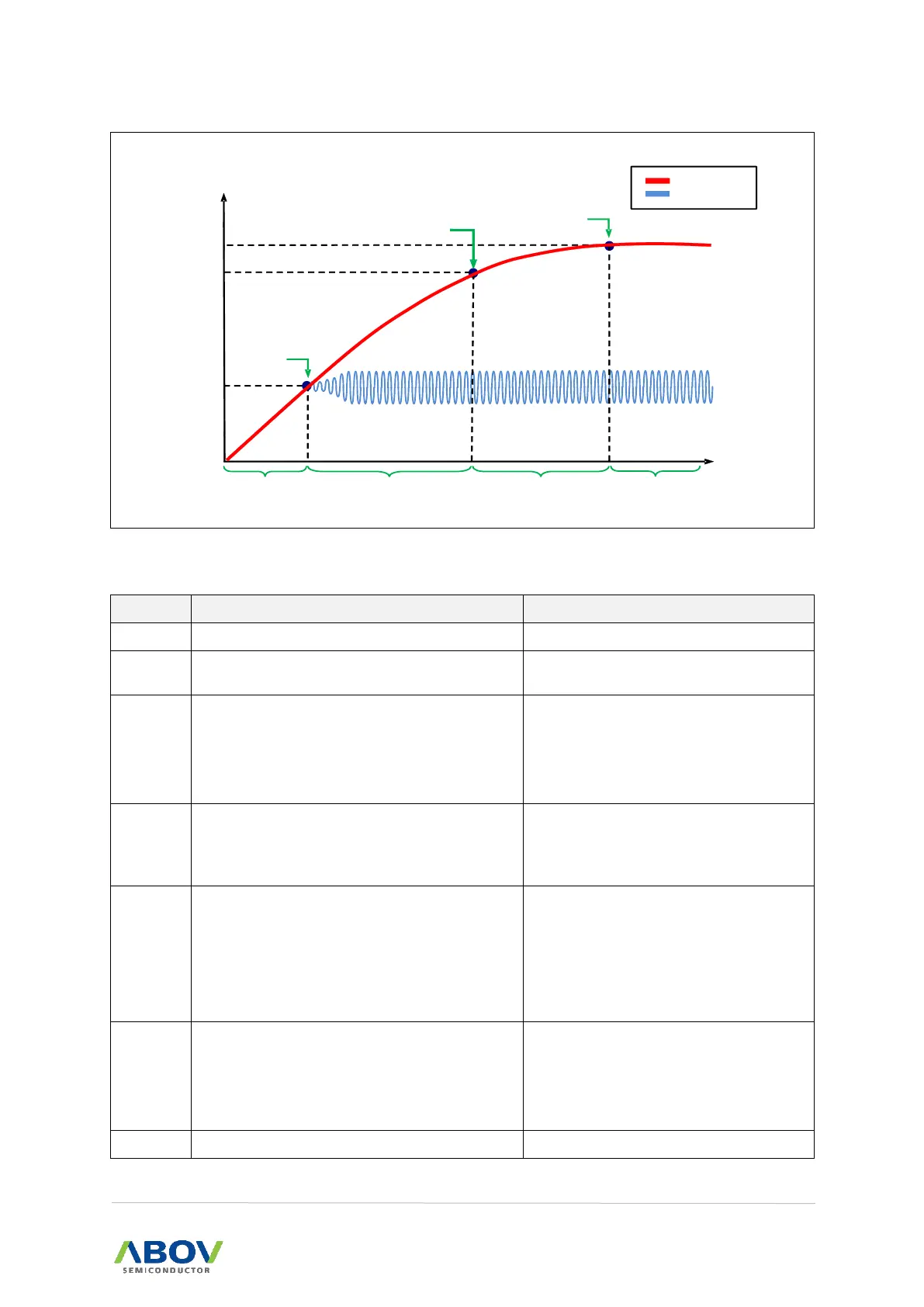

Figure 92. Boot Process Waveform
Table 28. Boot Process Description
Process
Description
Remarks

No Operation
0.7V to 0.9V

1st POR level Detection
Internal OSC (16MHz) ON
About 1.2V to 1.6V

(INT-OSC16MHz/2)×29H Delay section (=5ms)
VDD input voltage must rise over than flash
operating voltage for Configure option read
Slew Rate >= 0.025V/ms
*Ports with DSCL/DSDA are operated to
DSCL/DSDA pins with internal pull-up
resistor.

Configure option read point
About 1.5V to 1.6V
Configure Value is determined by the
writing option

Rising section to Reset Release Level
8ms point after POR or the external
Reset Release
*Ports with DSCL/DSDA are operated to
DSCL/DSDA pins with internal pull-up
resistor.

Reset Release section (BIT overflow)
I. 8ms after the external Reset Release
(External Reset)
II. 8ms point after POR (POR only)
BIT is used for Peripheral stability

Normal operation
