23. Development tools MC97F6108A User’s manual

248

Connection of transmission

Two-pin interface connection uses open-drain (wire-AND bidirectional I/O).

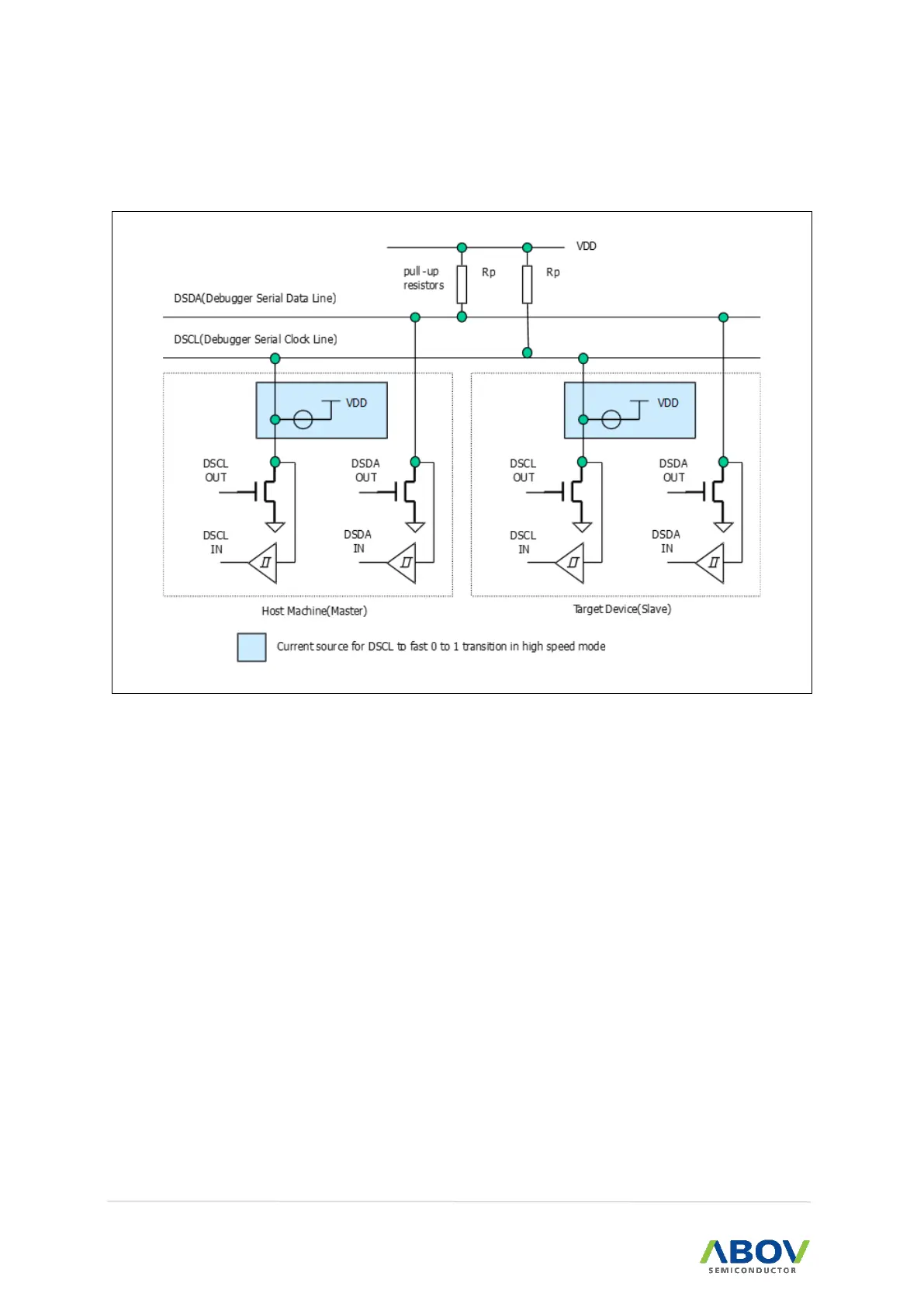

Figure 133. Connection of Transmission
