6.6 Effective timing after controlling interrupt bit

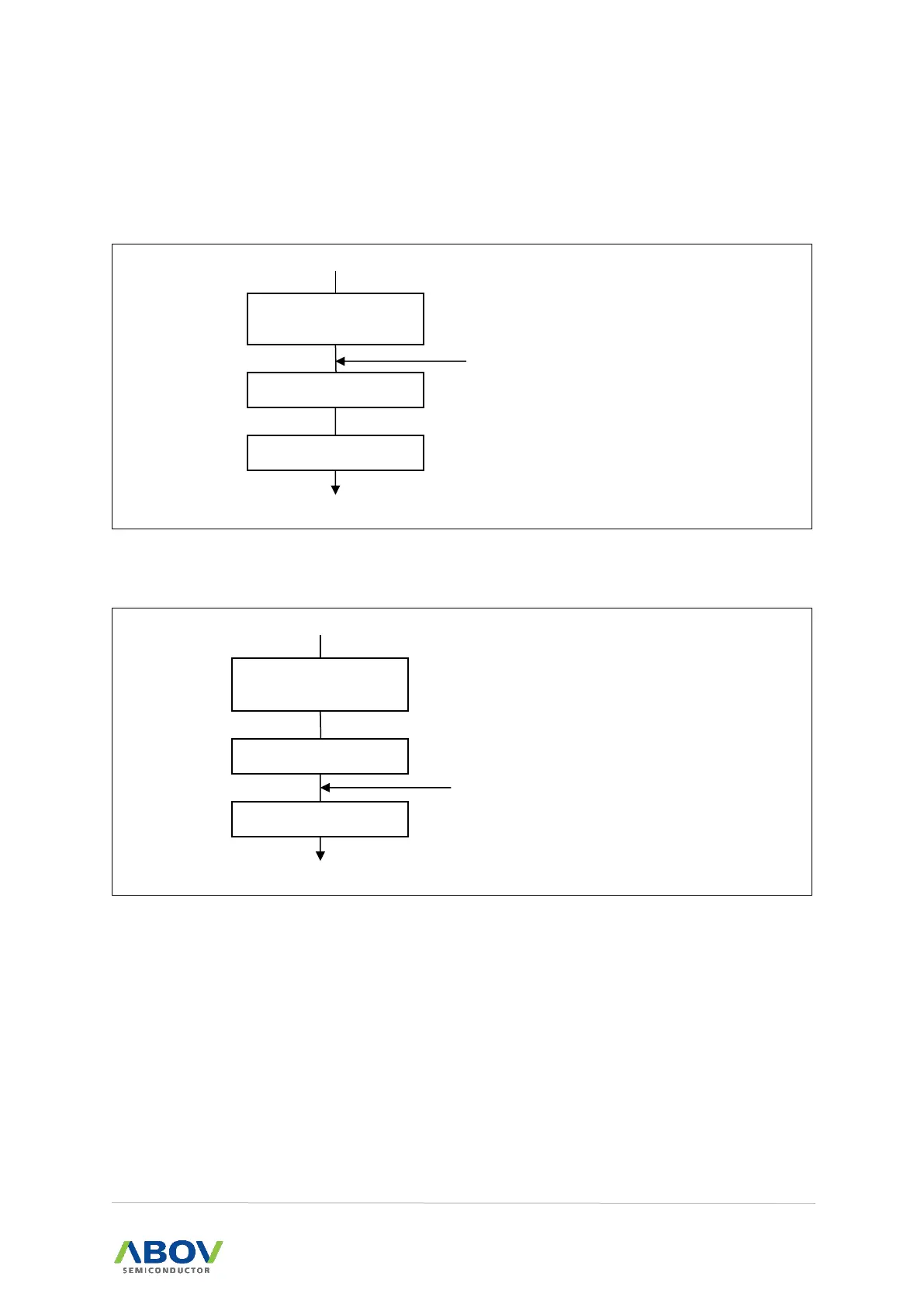

Case A in Figure 16 shows the effective time after controlling Interrupt Enable Registers (IE, IE1, IE2,
and IE3).
Figure 16. Effective Timing of Interrupt Enable Register
Case B in Figure 17 shows the effective time after controlling Interrupt Flag Registers.
Figure 17. Effective Timing of Interrupt Flag Register
Interrupt Enable Register
command
Next Instruction
Next Instruction
After executing IE set/clear,
enable register is effective.
Interrupt Flag Register
Command
Next Instruction
Next Instruction
After executing next instruction,
interrupt flag result is effective.
