BZ001M056A ADT‐DK300A/400A Engraving Machine

4

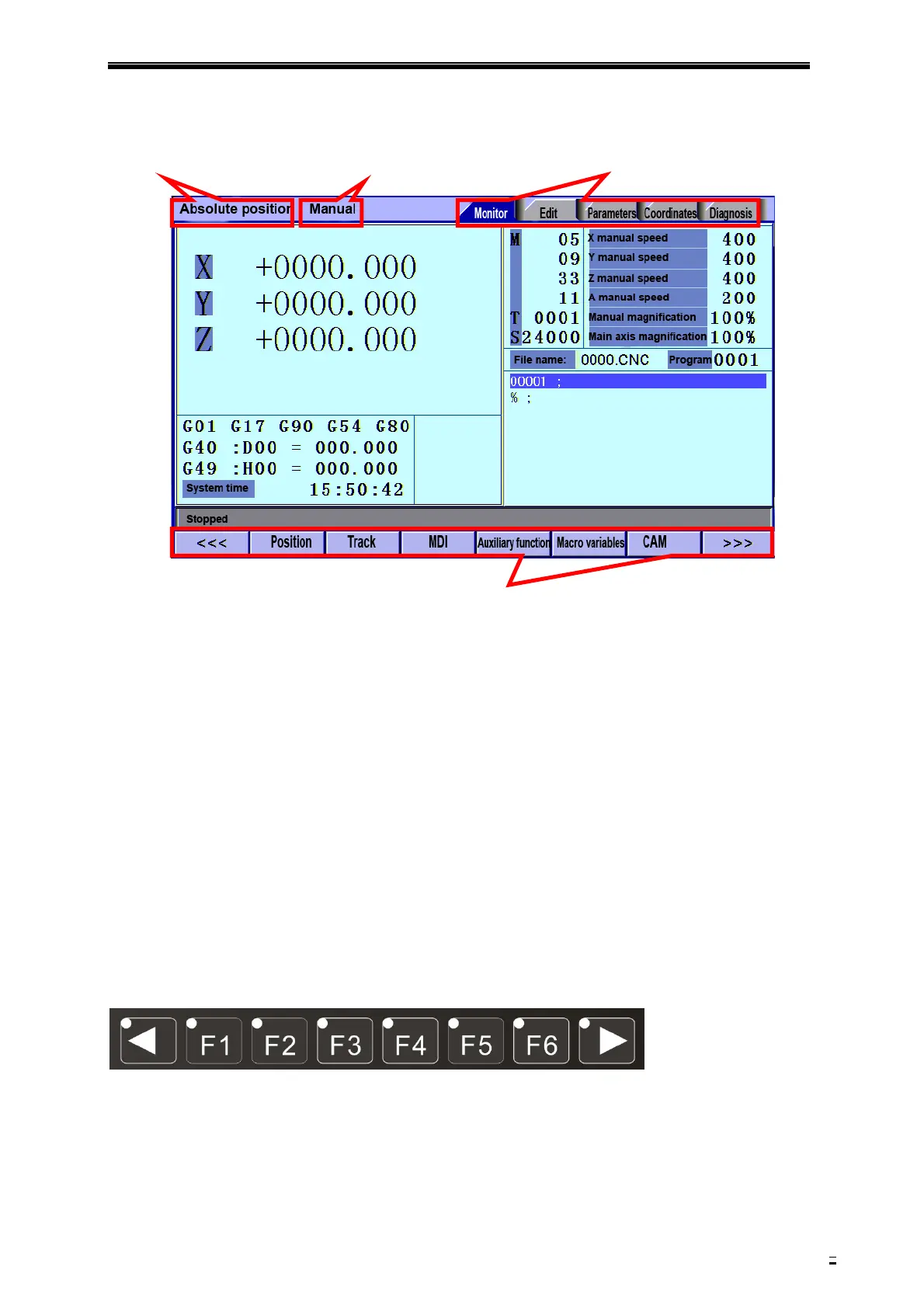

 LCDunit
ScreeninfoWorkingmodeSystemmainmenu

Submenus
Caution:
Screeninfoshowstheinformationofcurrentwindow
Workingmodeinfoshowscurrentlyselectedworkingmode
Systemmainscreenshowscurrentmainscreen.
Thesubmenuoptionsareusedtoswitchsubmenuswithlefttriangle,F1~F6andrighttriangle.Theright
arrowisusedtoturnpages,andtheleftarrow
isusedtoclosethesubmenusinnextlevelandpreviousmenu.

2.2  Systemmenus
DK300Asystemusescascadingmenustructure.Youcanpressthefollowingkeystooperatethemenus.


PressakeytoshowthecorrespondingcontentinthebottomoftheLCD.
