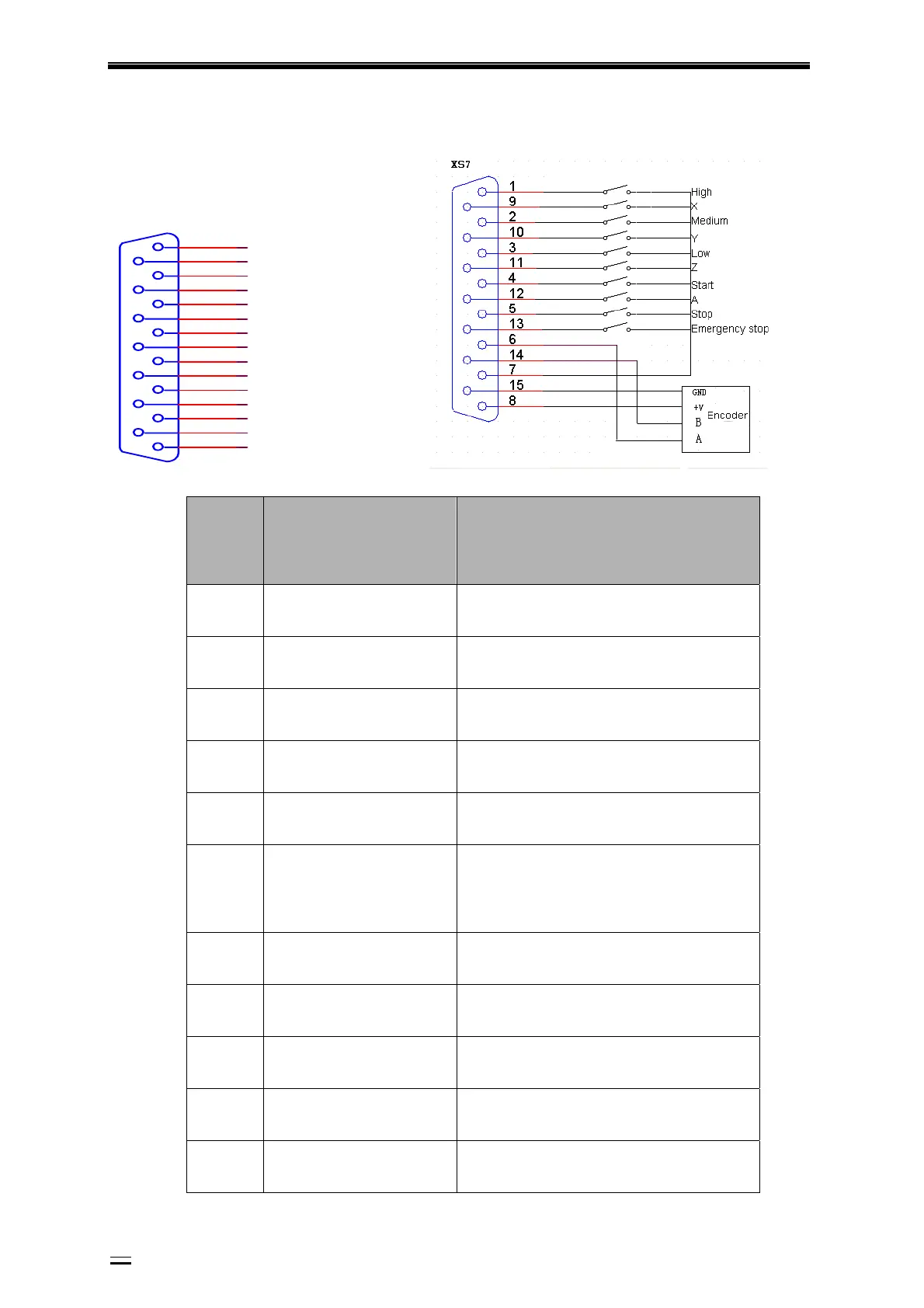

11.2.4. Handheldboxinterface(XS7)
HA
IN33
8
15
7
14
6
13
5
12
4
11
3
10
2
9
1
5V+
IN32
IN31
HB
24V-
IN28
IN26
IN25
IN24
IN29
IN30
IN27
5V-
 
Wire
No.
Definition Function
1 (IN24)gearswitch 0.1gear‐‐‐Highspeed
2 (IN26)gearswitch 0.01gear‐‐‐Mediumspeed
3 (IN28)gearswitch 0.001gear‐‐‐Lowspeed
4 (IN30)button Cyclestart
5 (IN32)button Emergencystop
7 24V‐
Negativepoleofinternallyprovided24V
powersupply
9 (IN25)axisselection Xaxis
10 (IN27)axisselection Yaxis
11 (IN29)axisselection Zaxis
12 (IN31)axisselection Aaxis
13 (IN33)button Emergencystop
