Section 2 Engineering Guidelines Total Access 600R System Manual
22 © 2002 ADTRAN, Inc. 61200600L1-1A
1. EQUIPMENT DIMENSIONS
The Total Access 600R measures 11.25” W, 7.5” D, and 2” H and comes equipped for table top or wall
mount use.
2. POWER REQUIREMENTS
The Total Access 600R has a maximum power consumption of 90-125 VAC 60 Hz and a maximum current
draw of 300 mA.
3. REVIEWING THE FRONT PANEL DESIGN
Figure 1 shows the front panel of the Total Access 600R which contains the LAN, WAN, and power LEDs.
These LEDs and their functions are described in Table 1.

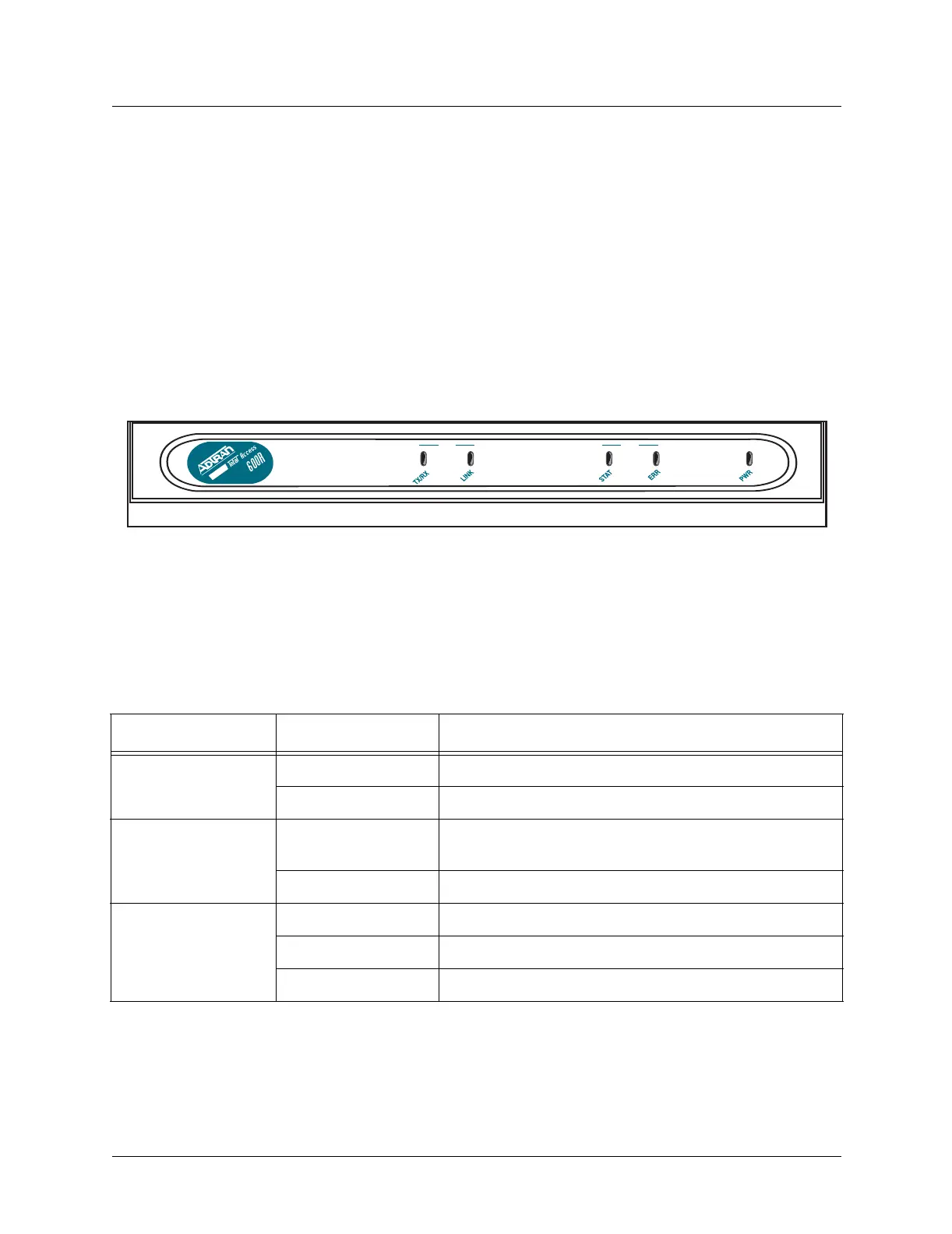

Figure 1. Total Access 600R Front Panel
Front Panel LEDs
The front panel provides five status LEDs to monitor operation and activity. The following table provides
LED activity explanations.
Table 1. Total Access 600R Front Panel LEDs
For these LEDs... This color light... Indicates that...
LAN TX/RX Off There is no data traffic on the LAN.
Green (blinking) There is data traffic on the LAN.
LAN LINK Off The physical link is down; there is no Ethernet
connection.
Green (solid) There is link integrity on the LAN (physical link is up).
WAN STAT Red (solid) The T1 is in red alarm or T1 sync loss.
Yellow (solid) The T1 is in yellow alarm.
Green (solid) The unit is not in alarm.
LAN WAN
