Total Access 600R System Manual Section 4 User Interface Guide
61200600L1-1A © 2002 ADTRAN, Inc. 105
SECURITY
Configure the SECURITY FILTERS and RADIUS SERVER parameters from this menu as shown in Figure 10.

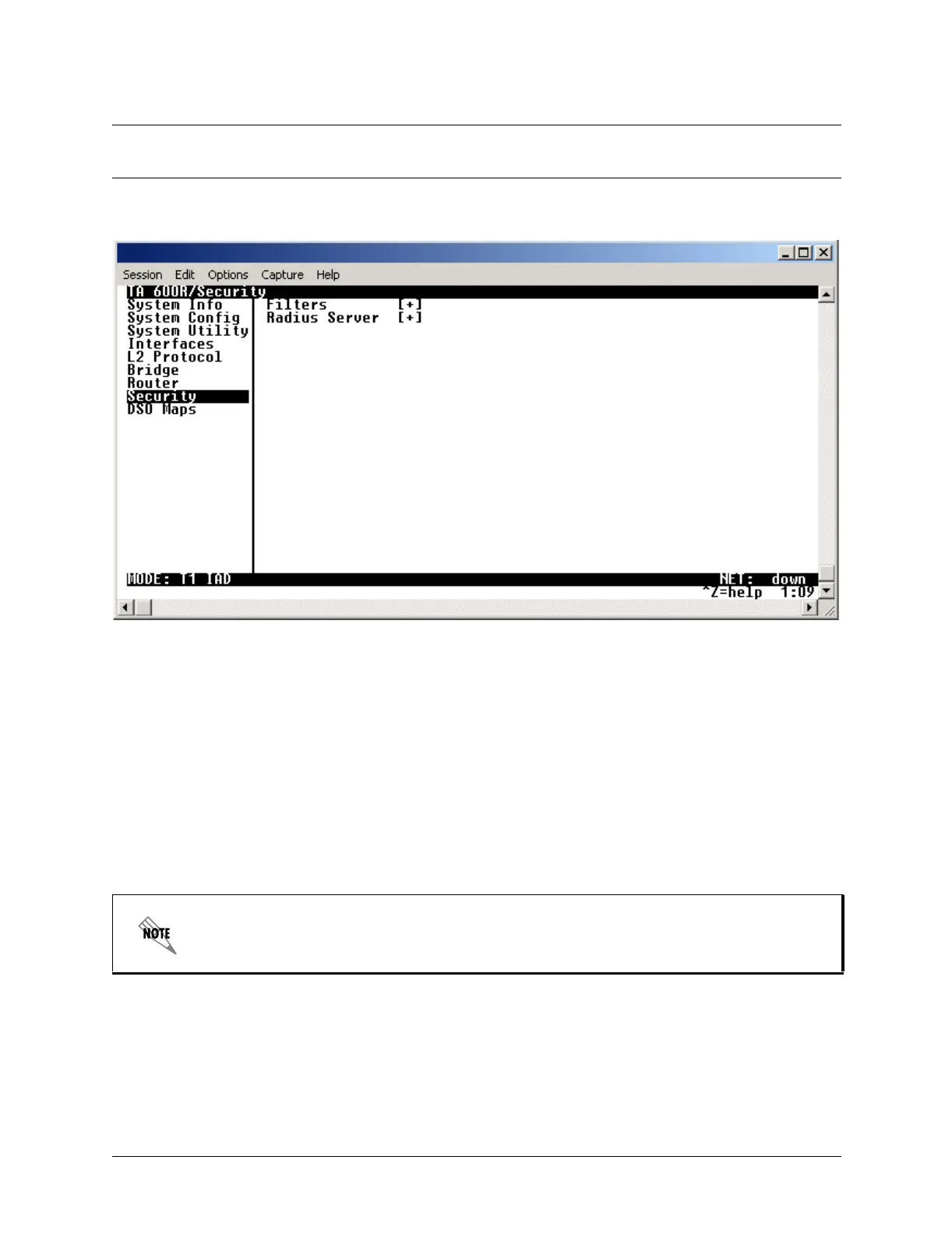

Figure 10. Security Menu
SECURITY > FILTERS
Configure the filter characteristics from this menu.
SECURITY > FILTERS > FILTER DEFINES
The unit can filter packets based on certain parameters within the packet. The method used by the unit
allows the highest flexibility for defining filters and assigning them to a PVC or PPP link. The filters are
set up in two steps: (1) defining the filter types, and (2) applying them to a list under the PVC or PPP
configuration. This menu is used to define the individual filter defines based on packet type.
SECURITY > FILTERS > FILTER DEFINES > MAC FILTER DEFINES
The MAC filter is applied to bridge packets only. Bridge packets which are forwarded by the bridge
functionality of the unit are defined here. Up to 32 MAC defines can be specified.
The Filter Defines option works for Frame Relay and PPP.
