Total Access 600R System Manual Section 2 Engineering Guidelines
61200600L1-1A © 2002 ADTRAN, Inc. 23
4. REVIEWING THE REAR PANEL DESIGN
The Total Access 600R rear panel is shown in Figure 2.

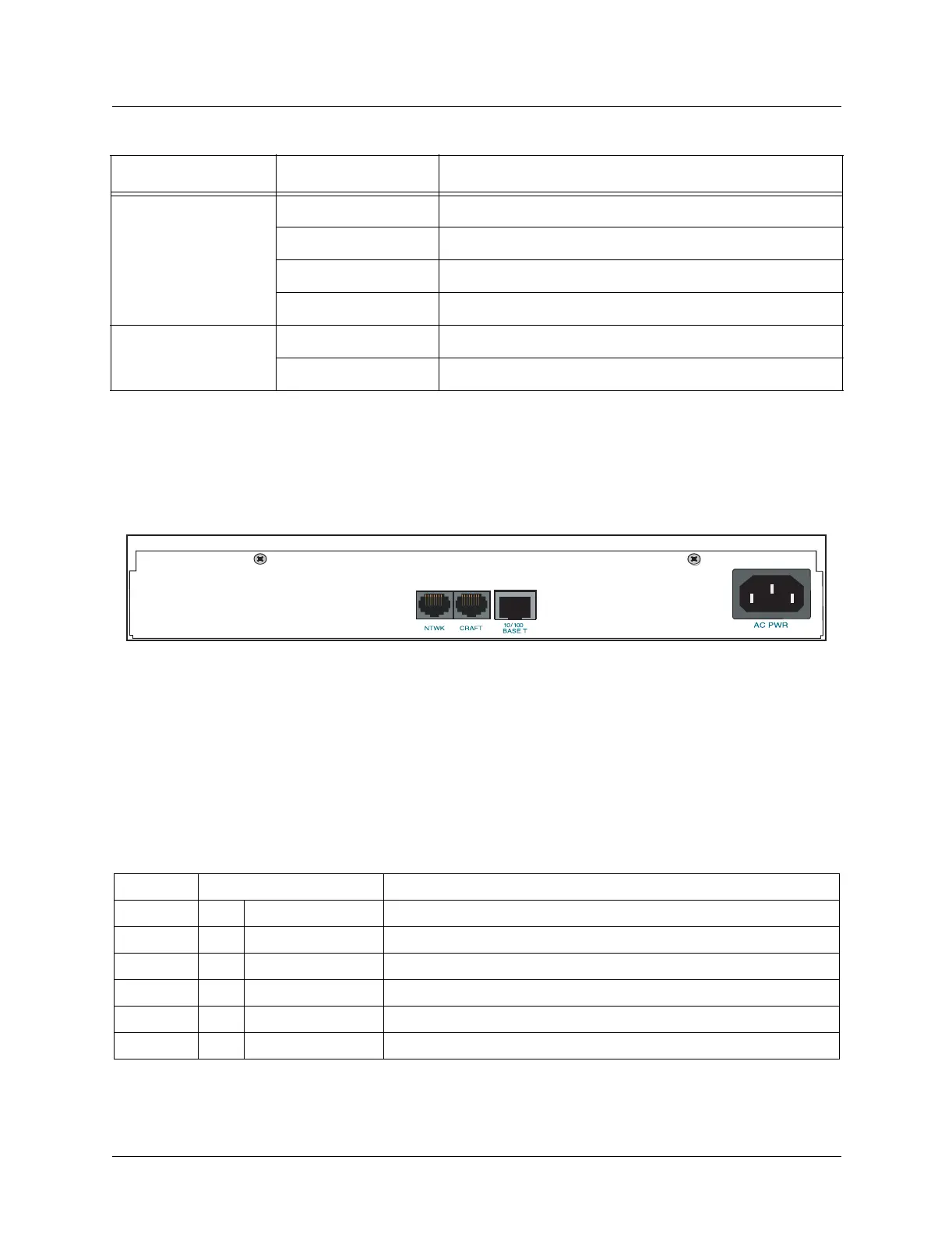

Figure 2. Total Access 600R Rear Panel
NTWK Connection
The NTWK connection pinout is a T1 connection. Table 2 shows the pinout for this connection.
Table 2. T1 NTWK Connection Pinout
WAN ERR Red (flashing) The T1 is down.
Yellow (solid) Errors are present on the WAN link.
Red (solid) Severe errors are present on the WAN link.
Off WAN link is up and error-free.
PWR Green (solid) Power is supplied to the unit.
Off Power is not supplied to the unit.
Connector type RJ-48C
PIN NAME DESCRIPTION
1 R1 RXDATA-RING Receive data from the network
2 T1 RXDATA-TIP Receive data from the network
3 — UNUSED —
4 R TXDATA-RING Transmit data toward the network
5 T TXDATA-TIP Transmit data toward the network
6, 7, 8 — UNUSED —
Table 1. Total Access 600R Front Panel LEDs (Continued)
For these LEDs... This color light... Indicates that...
