Advanced Instruments OsmoPRO Service Manual

112100RPM Rev0
(OsmoPRO Service Manual)
Page 2 of 5
6. Disconnect the following Connectors
located on the Cooling System Harness
from their mating Connectors: A1, A2,
A3 & A4.

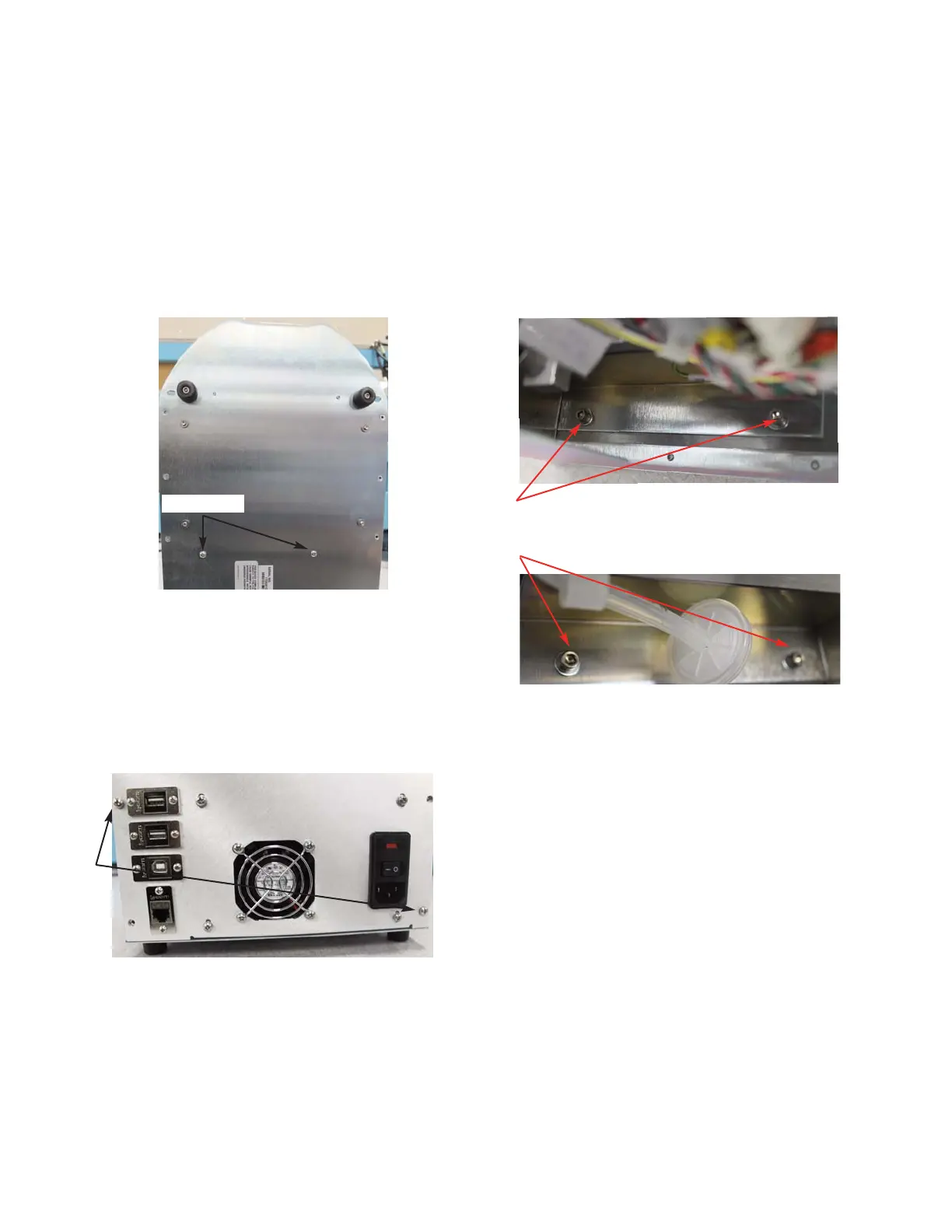

7. Rest the instrument on its back side.
Remove the two screws that secure the
Power Supply & Controls Assembly to
the bottom of the Chassis (
Figure 3).
8. Place the instrument in the upright posi-
tion. Remove the two screws that secure
the Power Supply & Controls Assembly
to the rear of the Chassis (
Figure 4).
9. Slide the Power Supply & Controls
Assembly out of the Base Assembly.
10. Remove the four socket head cap screws
and washers that mount the Osmometer
Module Mounting Bracket to the Chassis.
Carefully, slide the Osmometer Module
out of the instrument (
Figure 5A & Figure
5B
).
11. Remove the hex nut and washer that
secure the SPG & BPG Ring Terminals
to the side of the Osmometer Module
Mounting Bracket (
Figure 6).
12. Remove the four socket head cap screws
and washers that mount the Osmometer
Module to the Osmometer Module
Mounting Bracket, which is secured to
the Chassis. Lift the Osmometer Module
off of the Osmometer Module Mounting
Bracket (
Figure 7A & 7B).
13. Remove the Turntable Motor’s Wire
Leads from the Cable Clamp (
Figure 8).
Figure 4
Figure 3
Figure 5A
Two Screws
Two Screws
Figure 5B
Four Socket
Head Cap
Screws
