23. Secure the Block Probe Cable, the
Thermo-electric Cable and the Solenoid
Cable wire leads with the two Cable
Clamps shown in Figure 6. Be sure that
there is a service loop between the two
Cable Clamps (
Figure 15).
24. Reconnect the Sample Well Drain Tube
to the Fitting located on the Drain Tube
Adapter (
See Figure 7).
25. Mount the Cooling Fan, the Finger
Guard and the Air-Flow Diverter to the
Cooling Assembly’s Heatsink using the
four screws and washers. The Air-Flow
Diverter must be equally spaced on the
Heatsink (
Figure 16).
26. Slide the Osmometer Module into the
instrument and mount the Osmometer
Module Mounting Bracket to the Chassis
using the four socket head cap screws
and washers.
27. Slide the Power Supply & Controls
Assembly into the Base Assembly.
28. Secure the Power Supply & Controls
Assembly to the rear of the Chassis with
the two screws.
29. Rest the instrument on its back side.
Secure the Power Supply & Controls
Assembly to the bottom of the Chassis
using the two screws. Return the instru-
ment to the upright position.
30. Attach the following Connectors on the
Cooling System Harness to their mating
Connectors: A1, A2, A3 & A4.
31. Pair the following Connectors on the
Motor/Sensor Cable Harness with their
corresponding Connectors: B1, B2, B3,
B4, B6, B7, B8, B9 & B10.
32. Plug the C10 and C11 Connectors into
the Control PCB
33. Attach the C3G Ring Terminal to the
side of the Power Supply & Controls
Assembly using a screw. Plug the C3
Connector into the Control PCB.
34. Secure the C10 Sample Probe Cable and
the C11 Block Probe Cable to the side of
the Power Supply & Controls Assembly
with a Cable Clamp and a screw.
35. Reverse steps one through twelve of the
General Disassembly Instructions to re-
assemble the instrument.

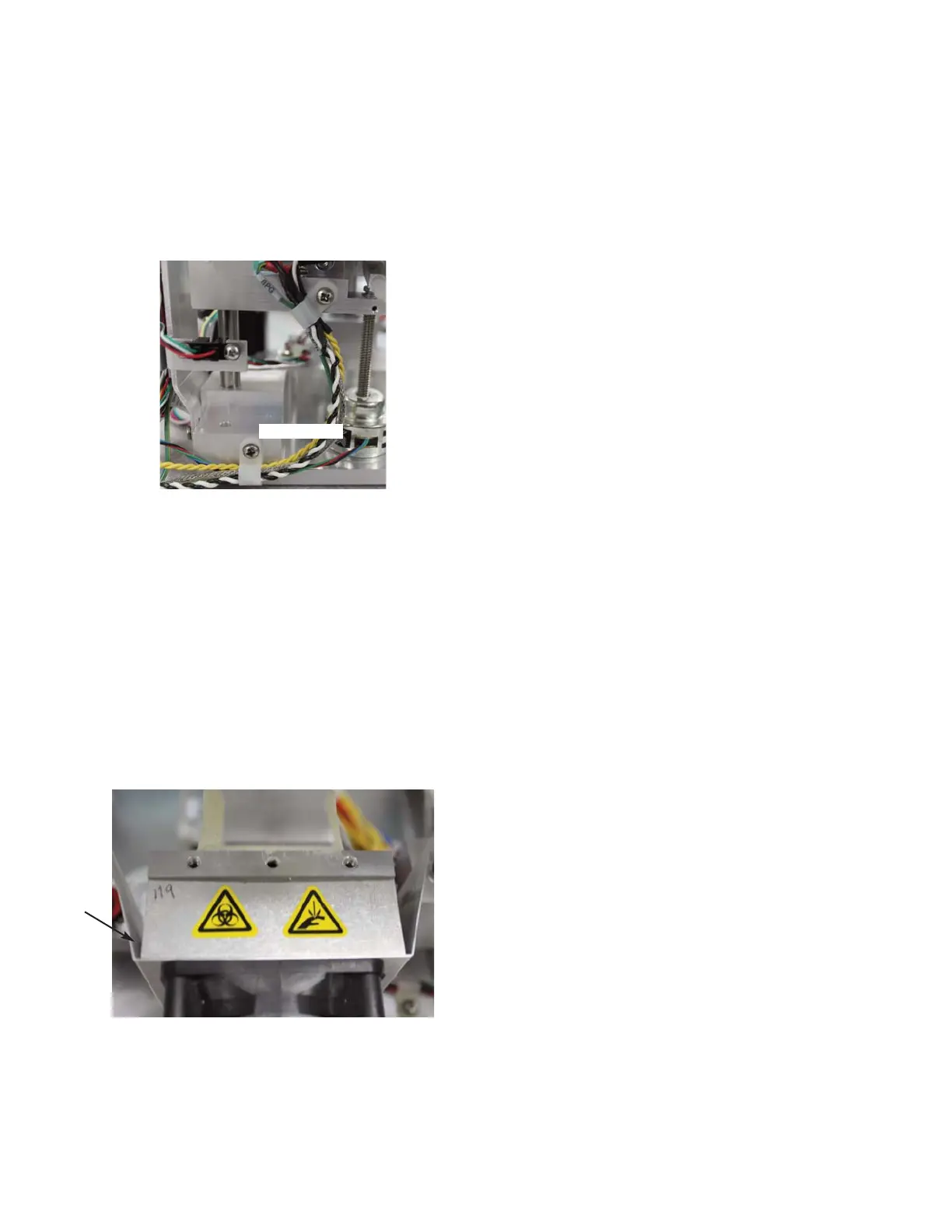

Figure 15
Figure 16
Service Loop
Air-Flow
Diverter
