Milling Machine Series
CNC operations
151
Advantech-LNC Technology Co., Ltd.

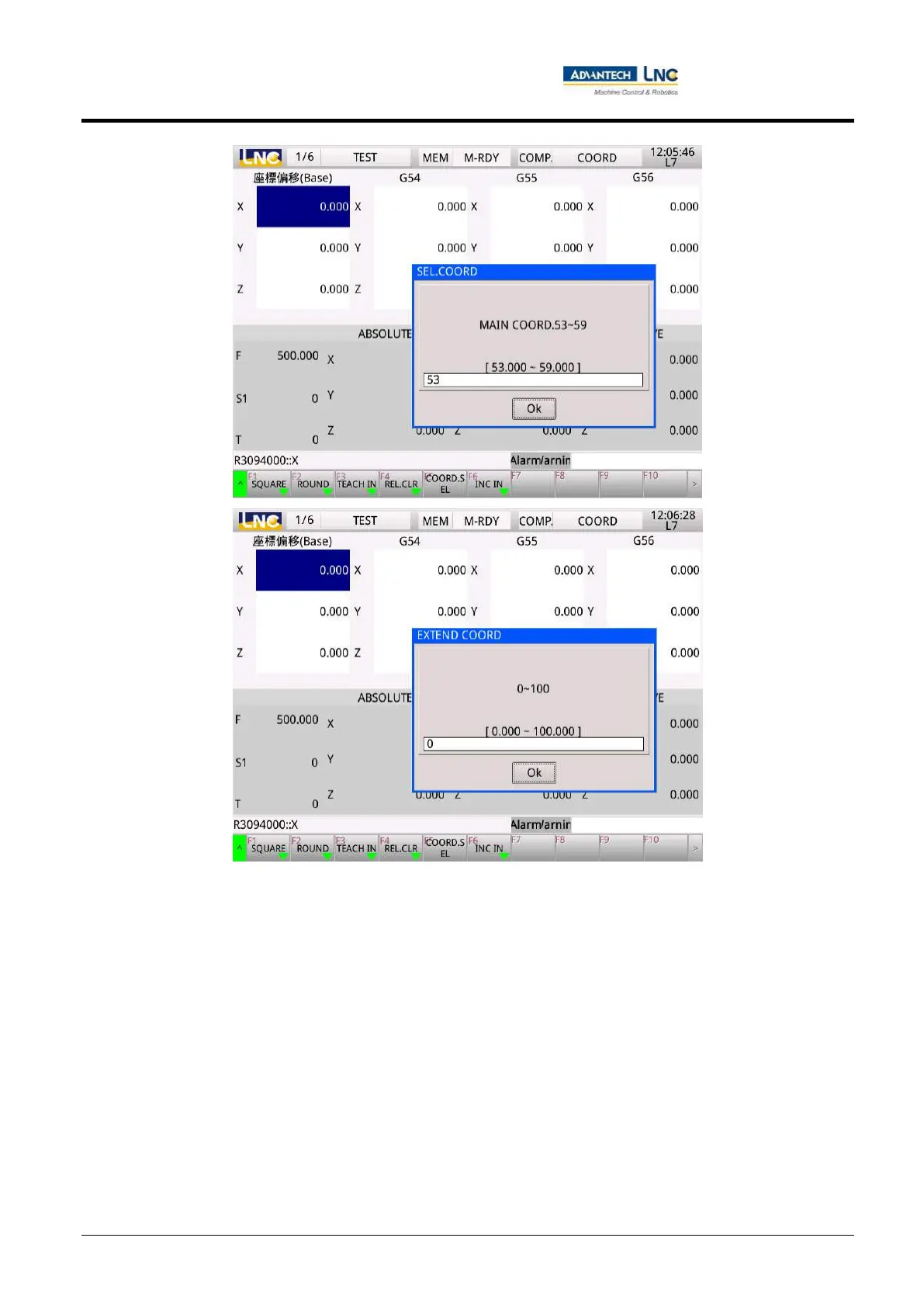

 Take G54 as an example.
 If the workpiece is rectangular in shape and the program's reference point is the center point of the workpiece,
the 【Rectangle】 key on the human machine page can be pressed to enter the rectangle center settings page.
