Milling Machine Series
CNC operations
37
Advantech-LNC Technology Co., Ltd.

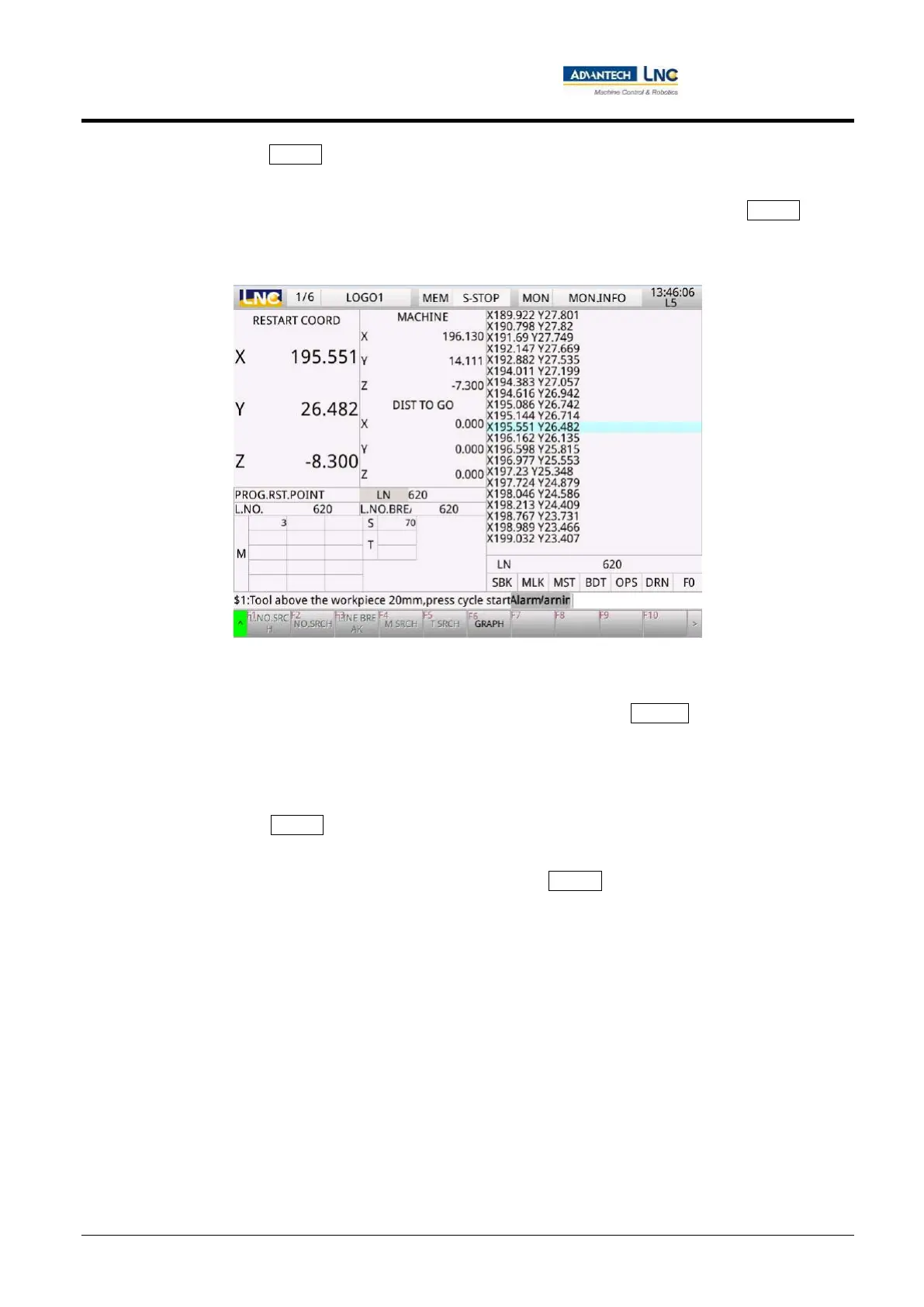

4. Press Confirm to close the window and press the program start (CYCLE START) key for the tool to
move to the coordinate position of that program block and stop at 20 mm above the workpiece,
while a confirmation window will appear (as shown in the figure below). Press Confirm to start
the tool and continue with machining.
Search by serial number: 1. Press Serial number search key.
2. Enter the program serial number you wish to find and press Confirm to start searching for the
specific serial number.
3. After the designated serial number is found, a confirmation message window will appear
indicating that the target has been found.
4. Press Confirm to close the window and then press the program start (CYCLE START) key for the
tool to move to the coordinate position of that block and stop at 20 mm above the workpiece; a
confirmation window will also pop up. Press Confirm to start the tool and continue with
machining.
Search by line break: 1. Press the Line break search key to start searching for the line number of previous
program line break recorded by NC.
