Advantech LNC M5800 Series User Manual

Milling Machine Series
CNC operations
38
Advantech-LNC Technology Co., Ltd.

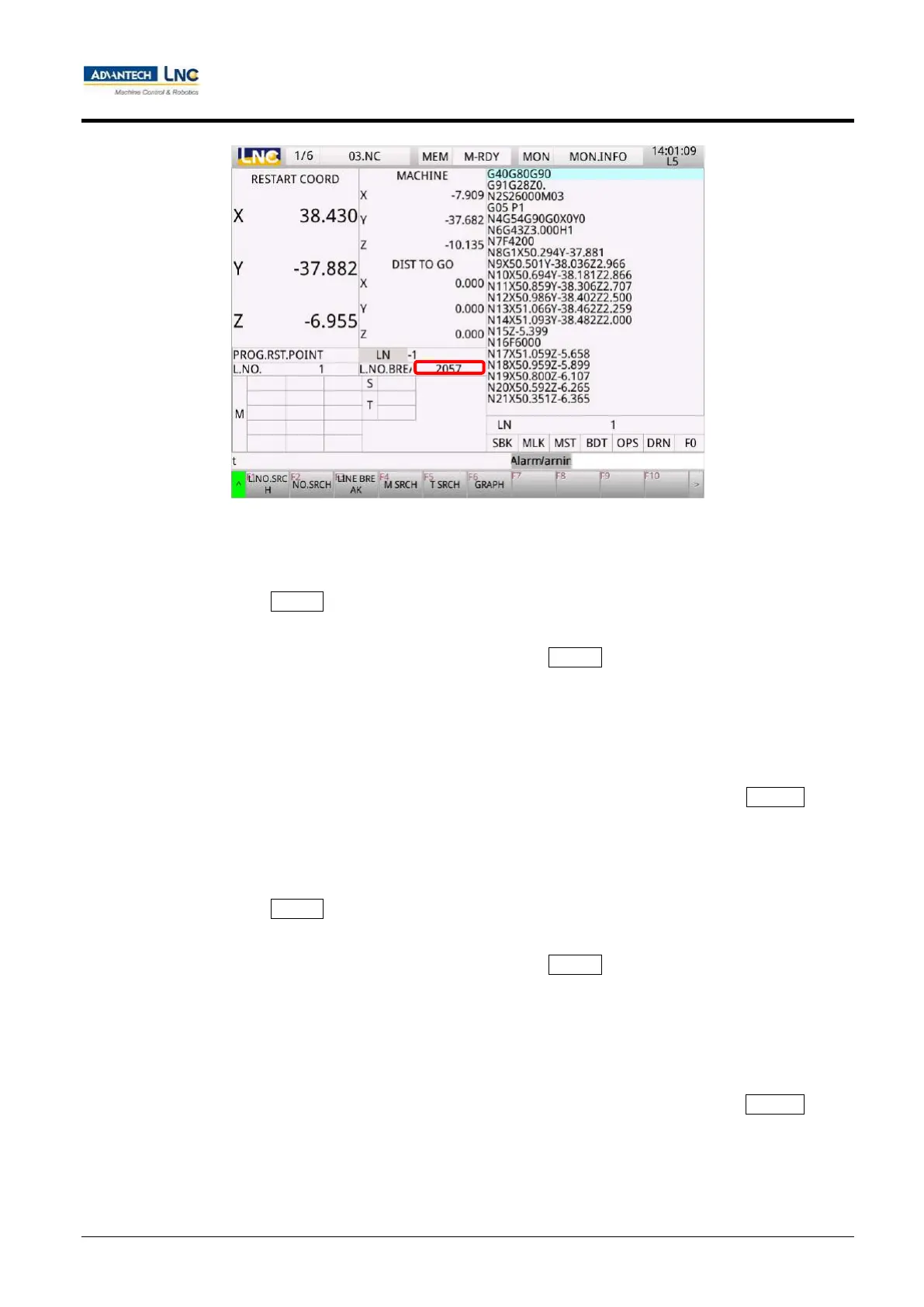

2. After the line break's line number is found, a confirmation message window will appear indicating
that the target has been found.
3. Press Confirm to close the window and then press the program start (CYCLE START) key for the
tool to move to the coordinate position of that block and stop at 20 mm above the workpiece; a
confirmation window will also pop up. Press Confirm to start the tool and continue with
machining.
 Search by M code: 1. Press the 【M code search】 key.
2. Enter the numerical value of the program M code you wish to find, then press Confirm to start
searching for the M code.
3. After the designated M code is found, a confirmation message window will pop up indicating the
target has been found.
4. Press Confirm to close the window and then press the program start (CYCLE START) key for the
tool to move to the coordinate position of that block and stop at 20 mm above the workpiece; a
confirmation window will also pop up. Press Confirm to start the tool and continue with
machining.
 Search by T code: 1. Press the 【T code search】 key.
2. Enter the numerical value of the program T code you wish to find, then press Confirm to start
searching for the T code.
3. After the designated T code is found, a confirmation message window will pop up indicating the
target has been found.
