7713395 R2 33

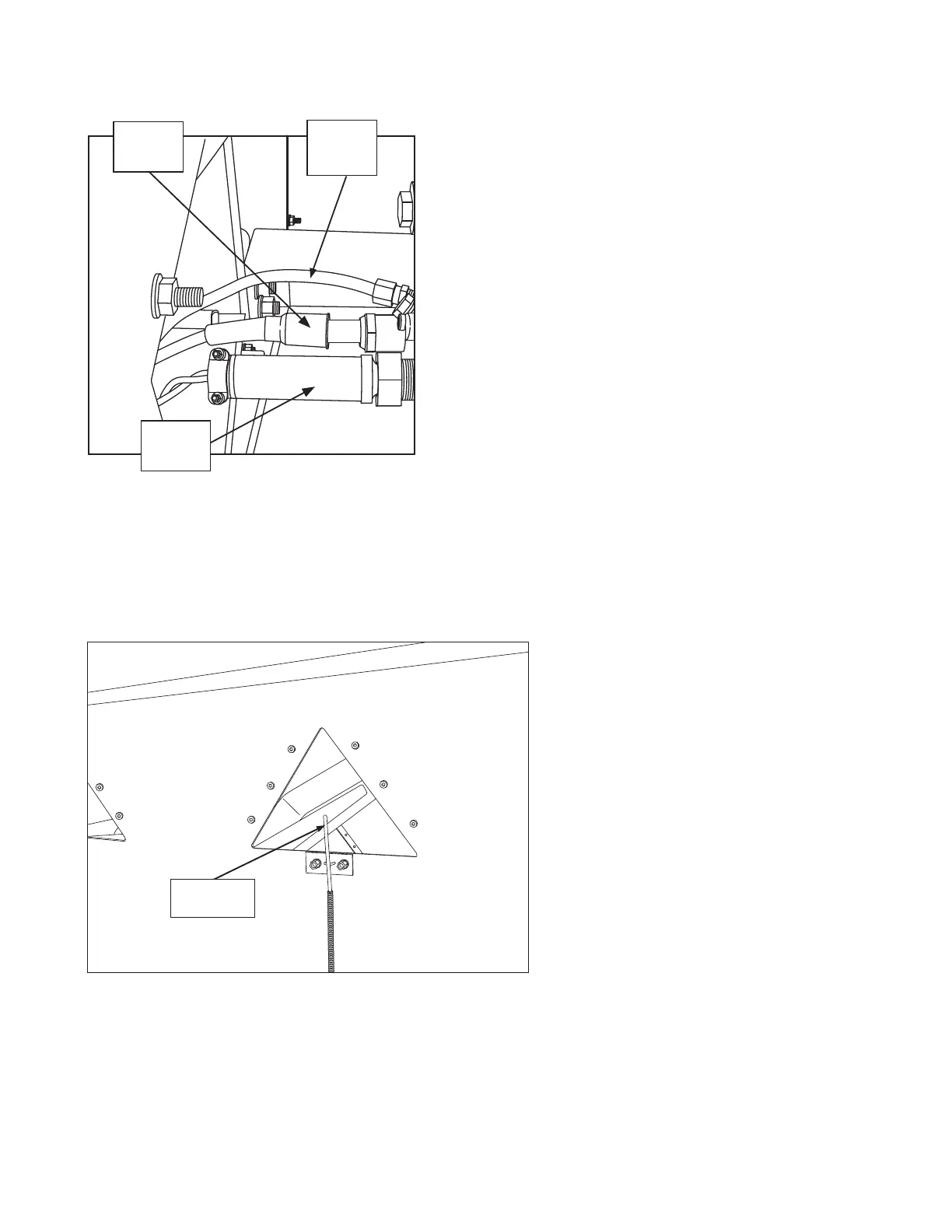

Figure 26. Components located at each burner
SPARK
PLUG
UV
SENSOR
FUEL
LINE
PILOT
Temperature Control
(each plenum section with a burner)
• The sealed dual temperature probe has two thermocouples: one for the temperature control (KS45), and
the other for the high temperature limit sensing (TB45).
Figure 27. Thermocouple probe
Note
Locate the dual temperature probe in the plenum, 5 ducts away from the burner horizontally and 3
ducts from the floor vertically.
CONTINUOUS MIXED-FLOW GRAIN DRYER WITH COMMANDER CONTROL SYSTEM 3. FEATURES
