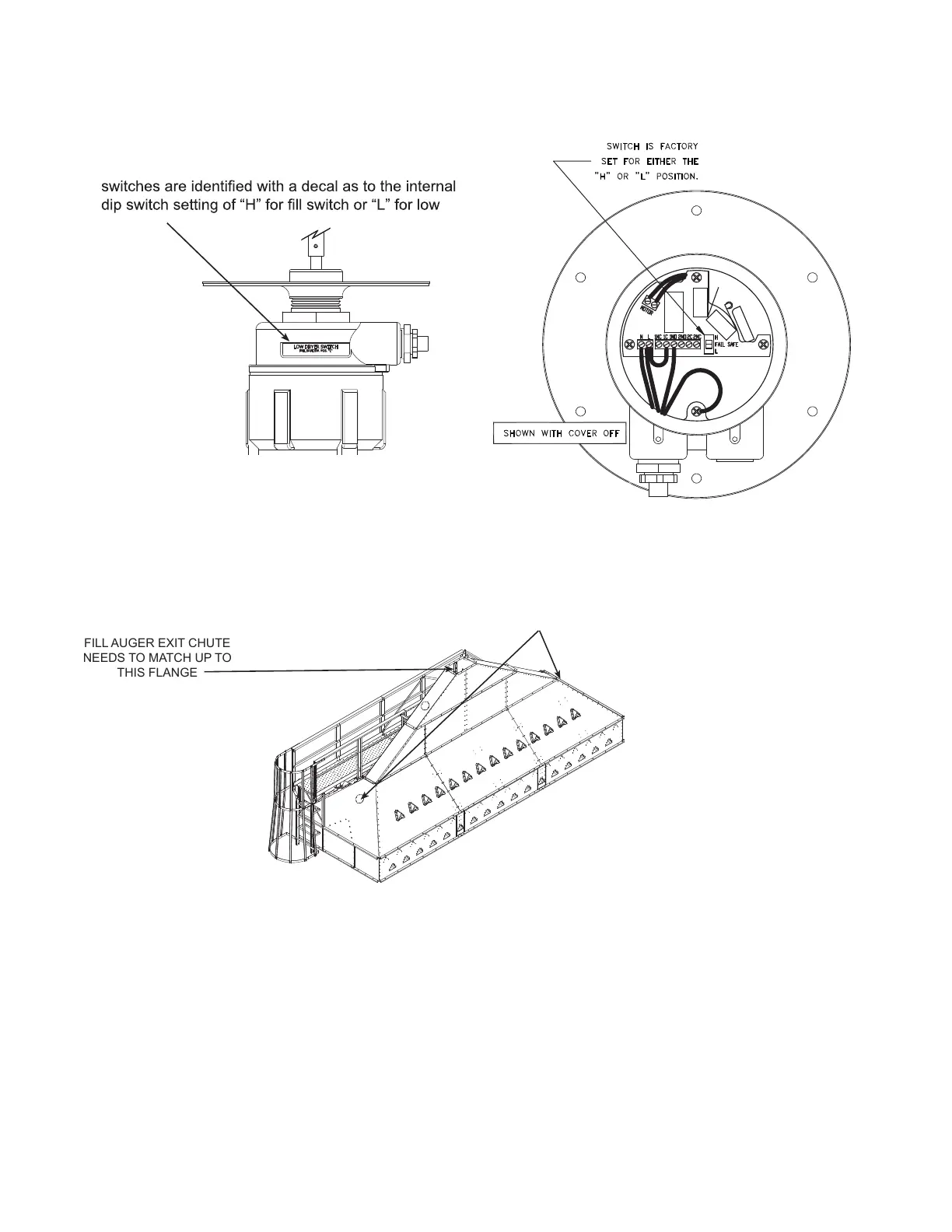

Figure 31. Switch — side view
ATTENTION: Correctly set switches MUST be used
at the proper locations for both FILL & EMPTY -
switch.
Figure 32. Switch — top view
Roof with Gravity Fill System
Gravity fill system intake grain at the center. The intake auger system must match to this location.
Figure 33. Gravity Fill Switch and Cover Locations
FILL AUGER EXIT CHUTE
NEEDS TO MATCH UP TO
THIS FLANGE
CONTINUOUS MIXED-FLOW GRAIN DRYER WITH COMMANDER CONTROL SYSTEM 3. FEATURES
