38 7713395 R2

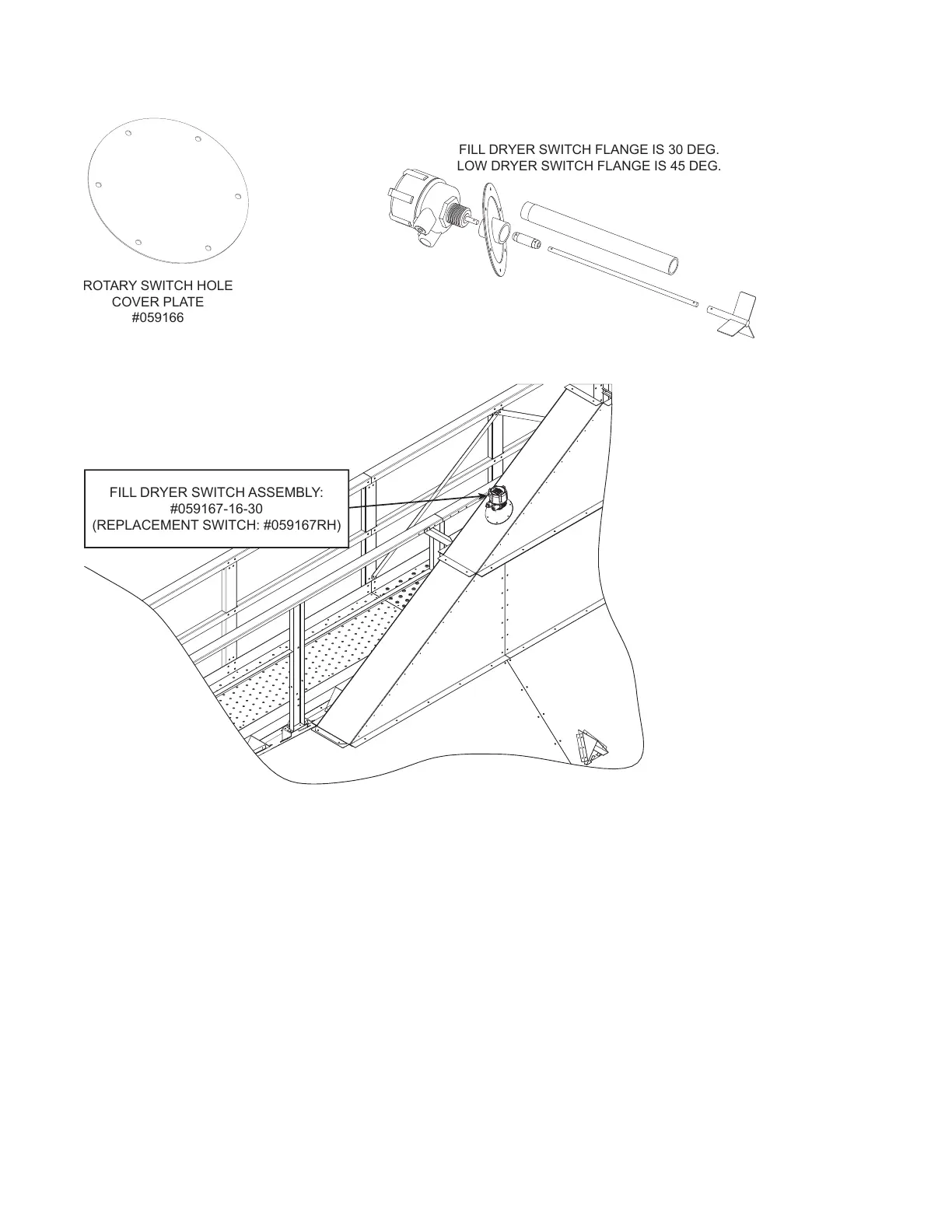

Figure 34. Hole Cover and Switch Flanges
ROTARY SWITCH HOLE
COVER PLATE
#059166
FILL DRYER SWITCH FLANGE IS 30 DEG.
LOW DRYER SWITCH FLANGE IS 45 DEG.
Figure 35. Fill Dryer Switch Location – Gravity Fill System
FILL DRYER SWITCH ASSEMBLY:
#059167-16-30
(REPLACEMENT SWITCH: #059167RH)
3. FEATURES CONTINUOUS MIXED-FLOW GRAIN DRYER WITH COMMANDER CONTROL SYSTEM
