7713395 R2 39

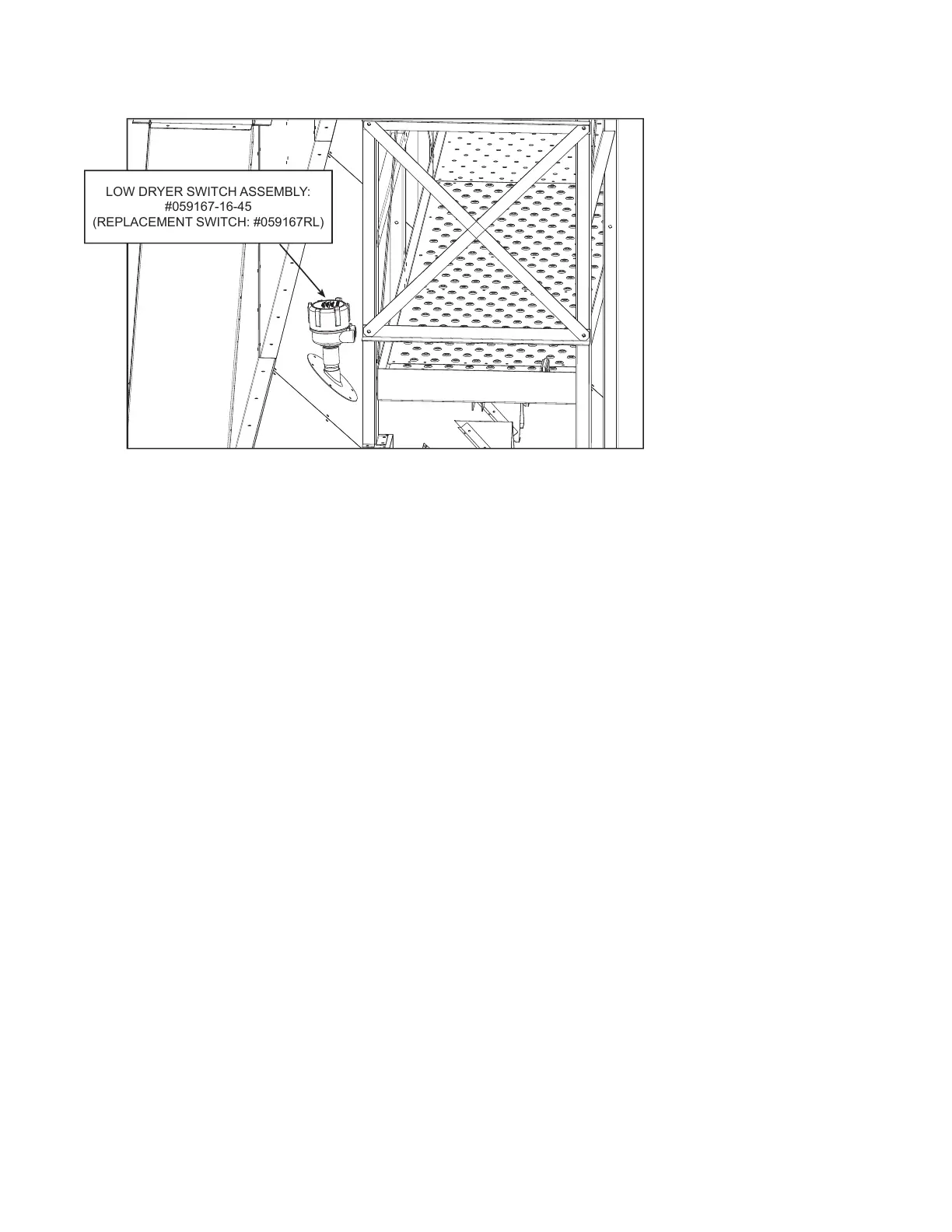

Figure 36. Low Dryer Switch Location – Gravity Fill and Level Auger Fill Systems
LOW DRYER SWITCH ASSEMBLY:
#059167-16-45
(REPLACEMENT SWITCH: #059167RL)
Level Auger Fill System Overview
• Grain intake position must be between 1' and 2' from the end of the dryer level auger.
• Factory configuration, per motor cable length and catwalk access, has the level auger motor located at the
front end of the dryer closest to the control box.
• The Fill dryer switch and the Low dryer switch must be located at the OPPOSITE end of the intake grain
entry for correct operation.
• Standard auger motor rotation brings the intake grain FORWARD from a grain entry position located at the
rear end of the dryer. Reversed auger rotation results in the opposite.
CONTINUOUS MIXED-FLOW GRAIN DRYER WITH COMMANDER CONTROL SYSTEM 3. FEATURES
