AGI D1660 - Page 40

40 7713395 R2

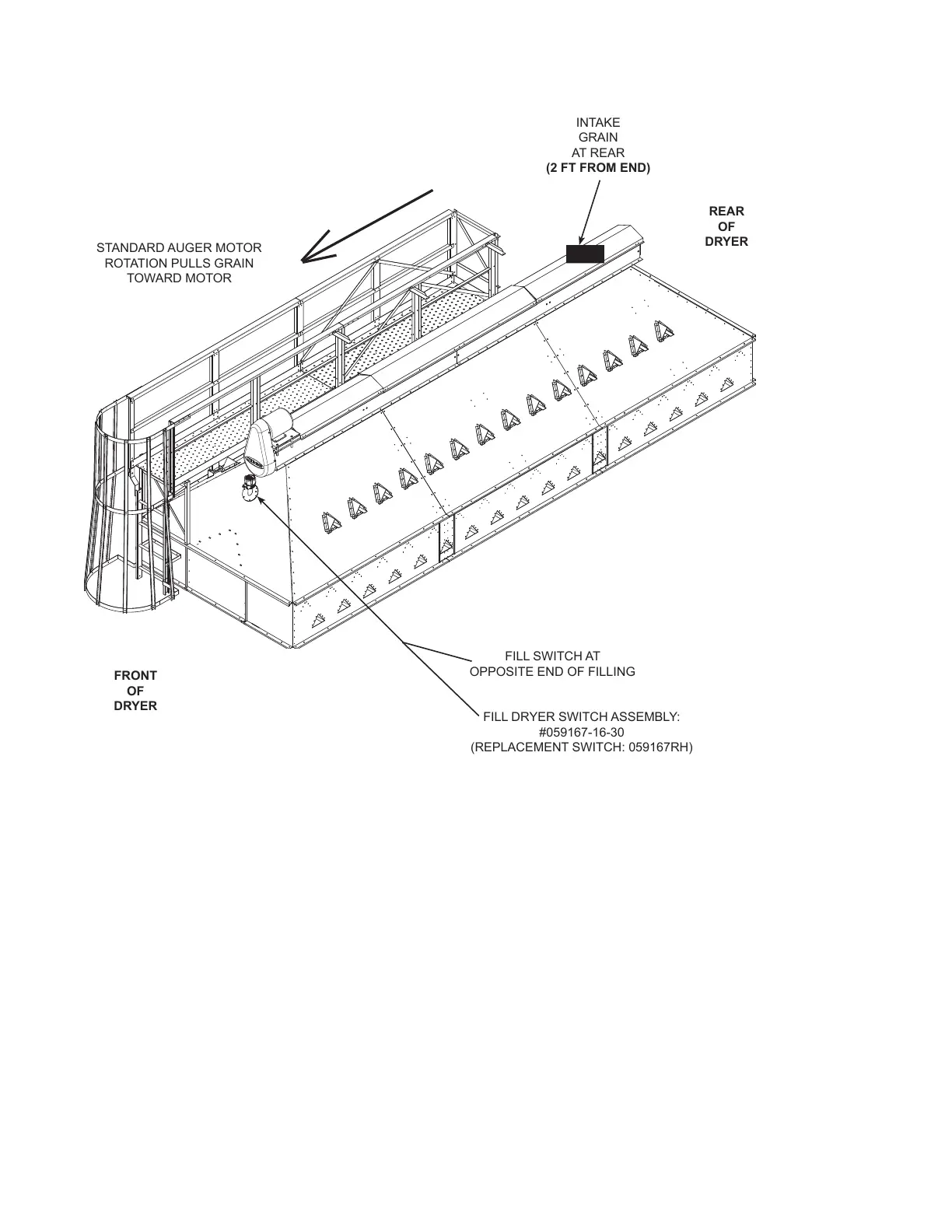

Figure 37. Level Auger Fill Switch Location
FRONT
OF
DRYER
REAR
OF
DRYER
INTAKE
GRAIN
AT REAR
(2 FT FROM END)
FILL SWITCH AT
OPPOSITE END OF FILLING
STANDARD AUGER MOTOR
ROTATION PULLS GRAIN
TOWARD MOTOR
FILL DRYER SWITCH ASSEMBLY:
#059167-16-30
(REPLACEMENT SWITCH: 059167RH)
3. FEATURES CONTINUOUS MIXED-FLOW GRAIN DRYER WITH COMMANDER CONTROL SYSTEM
