7713395 R2 45

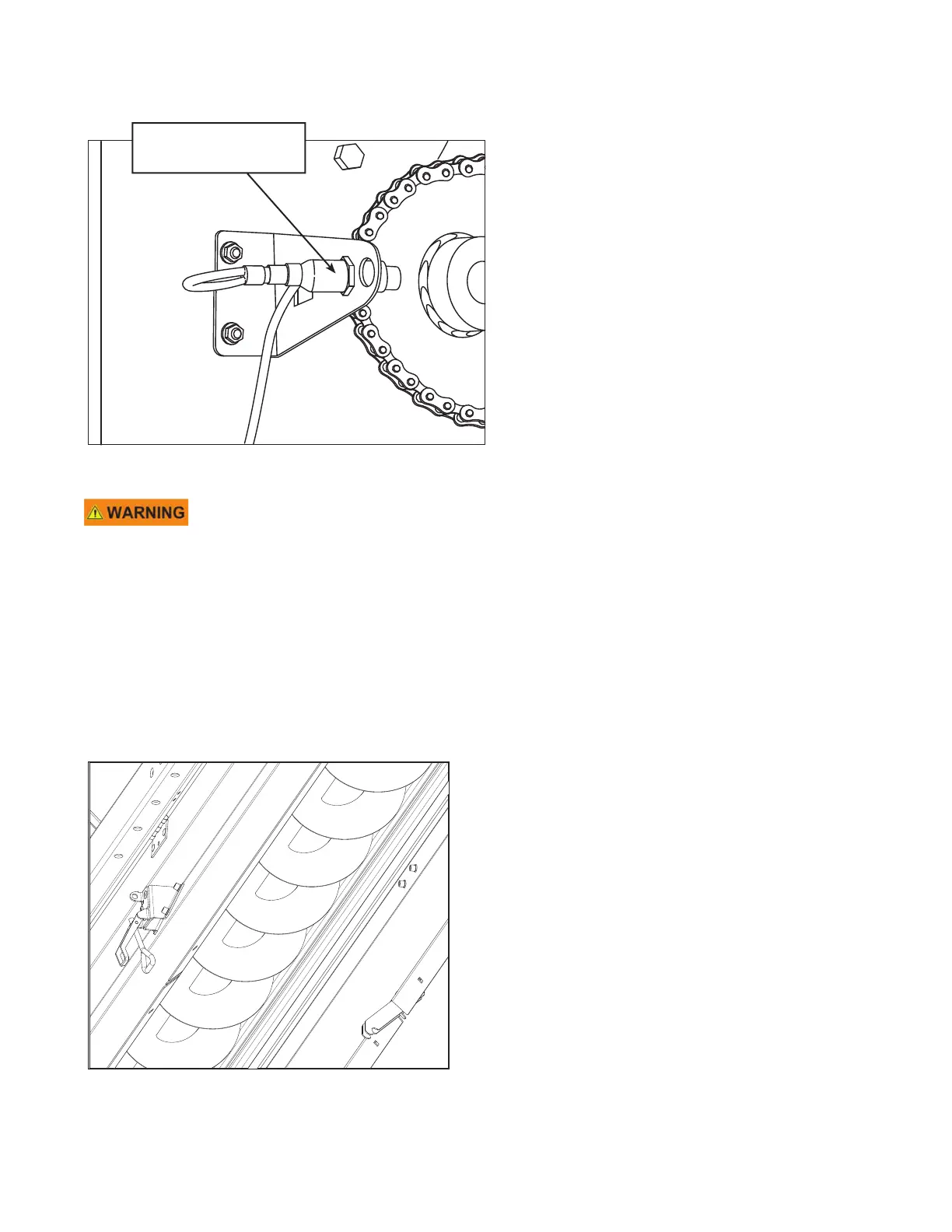

Figure 43. Metering rolls stall proximity switch
Auger Style Discharge
Shut down the dryer and lock out power before opening any conveyor access points. Use a
stick or tool (not hands) for cleanout.
• The discharge motor turns the discharge augers counterclockwise, as seen from the front of the dryer. Grain
moves to the rear.
• Each set of clean-out doors open for access to the discharge augers facilitating ease of clean-out.
• Normally, the discharge drive motor has a motor starter, but can be optionally controlled by a VFD. The VFD
allows the auger system to match the speed of the metering rolls, resulting in less grain damage, etc.
Note
See Section 8.1 – Manual Dryer Speed on page 127 in the Appendix.
Figure 44. View into the open clean-out doors at the auger
CONTINUOUS MIXED-FLOW GRAIN DRYER WITH COMMANDER CONTROL SYSTEM 3. FEATURES
