AGI D1660 - Page 46

46 7713395 R2

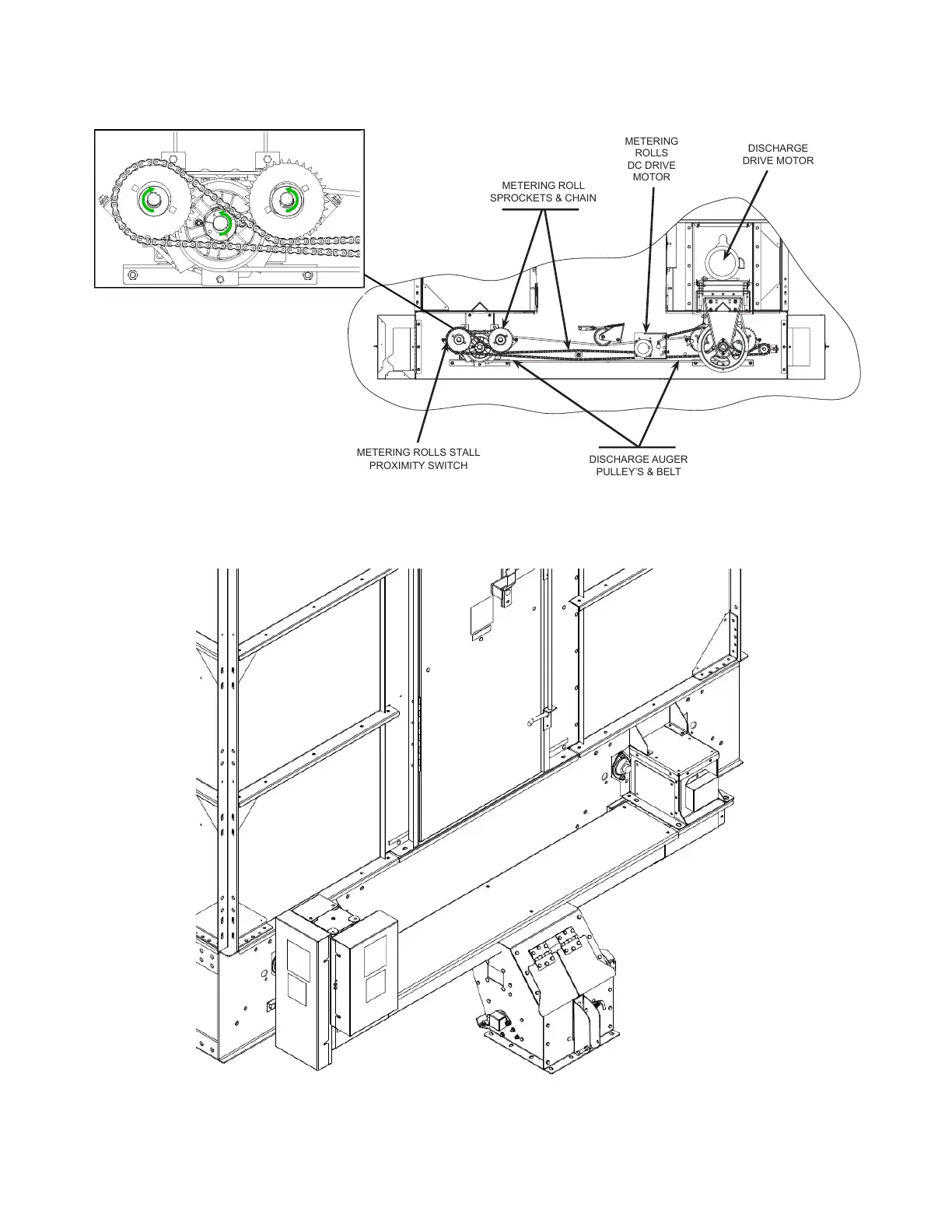

Figure 45. Drive system for auger discharge system (guards are shown open to show detail)
DISCHARGE
DRIVE MOTOR
DISCHARGE AUGER
PULLEY’S & BELT
METERING ROLLS STALL
PROXIMITY SWITCH
METERING ROLL
SPROCKETS & CHAIN
METERING
ROLLS
DC DRIVE
MOTOR
Rear Cross-Auger System
Figure 46. Rear cross-auger system
3. FEATURES CONTINUOUS MIXED-FLOW GRAIN DRYER WITH COMMANDER CONTROL SYSTEM
