Figure 51. Closed clean-out door Figure 52. Open clean-out door
Note
To access the drag conveyor itself, open the hinged doors on the bottom of the conveyors. To minimize
stress on the bolts, first remove the three nuts on the hinge side of the door, and then remove the
three nuts on the opposite side before swinging the door open. Reverse the order when shutting the
door. Refer to the figure below.

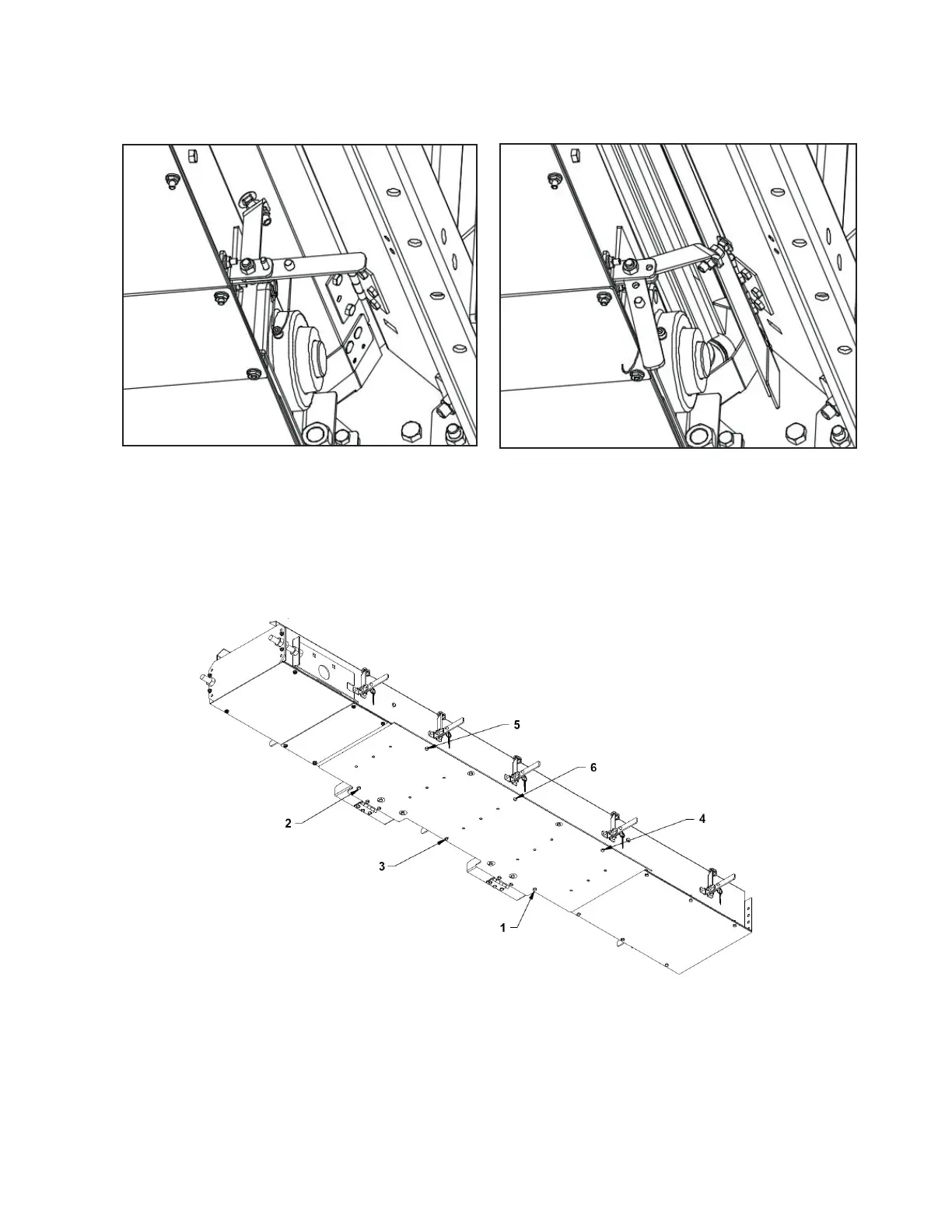

Figure 53. Removing the hinged door
Rear Cross Drag System
• The cross drag combines the dried grain from the two main drags and transfers it to a single discharge
output. This can be supplied with a left-hand or right-hand discharge.
