Drag Style Discharge
• The discharge motor rotates the two drags positioned along the sides and moves the grain to the rear of the
dryer.
• Normally the discharge drive motor has a motor starter, but can be optionally controlled by a variable
frequency drive (VFD).

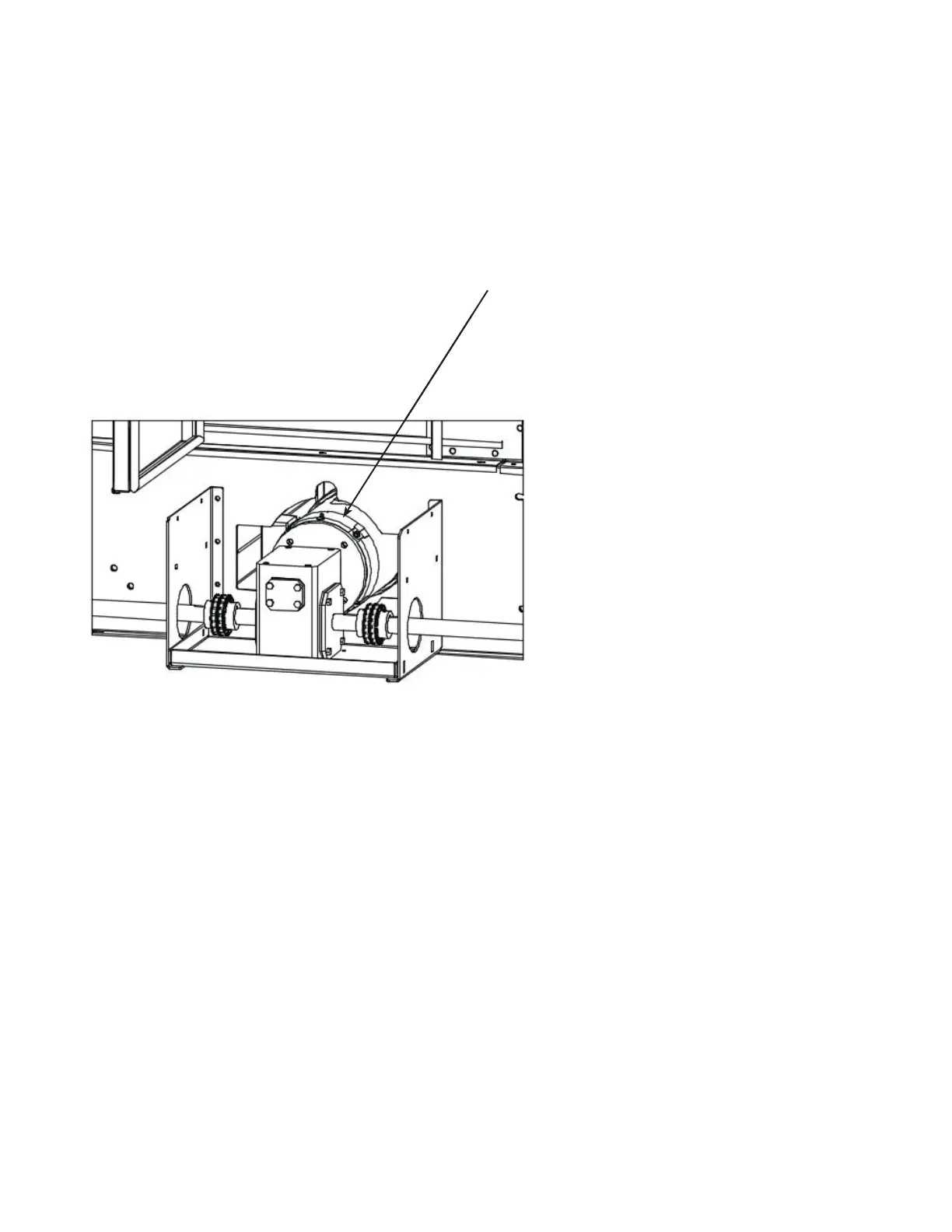

Figure 50. Drive system for drag discharge system (guard removed to show detail)
Note
On both sides of the main drags under the dryer are metering roll clean-out doors. To open, pull out
the pin on each of the clamps. See Figure 51 and Figure 52.
