82 7713395 R2

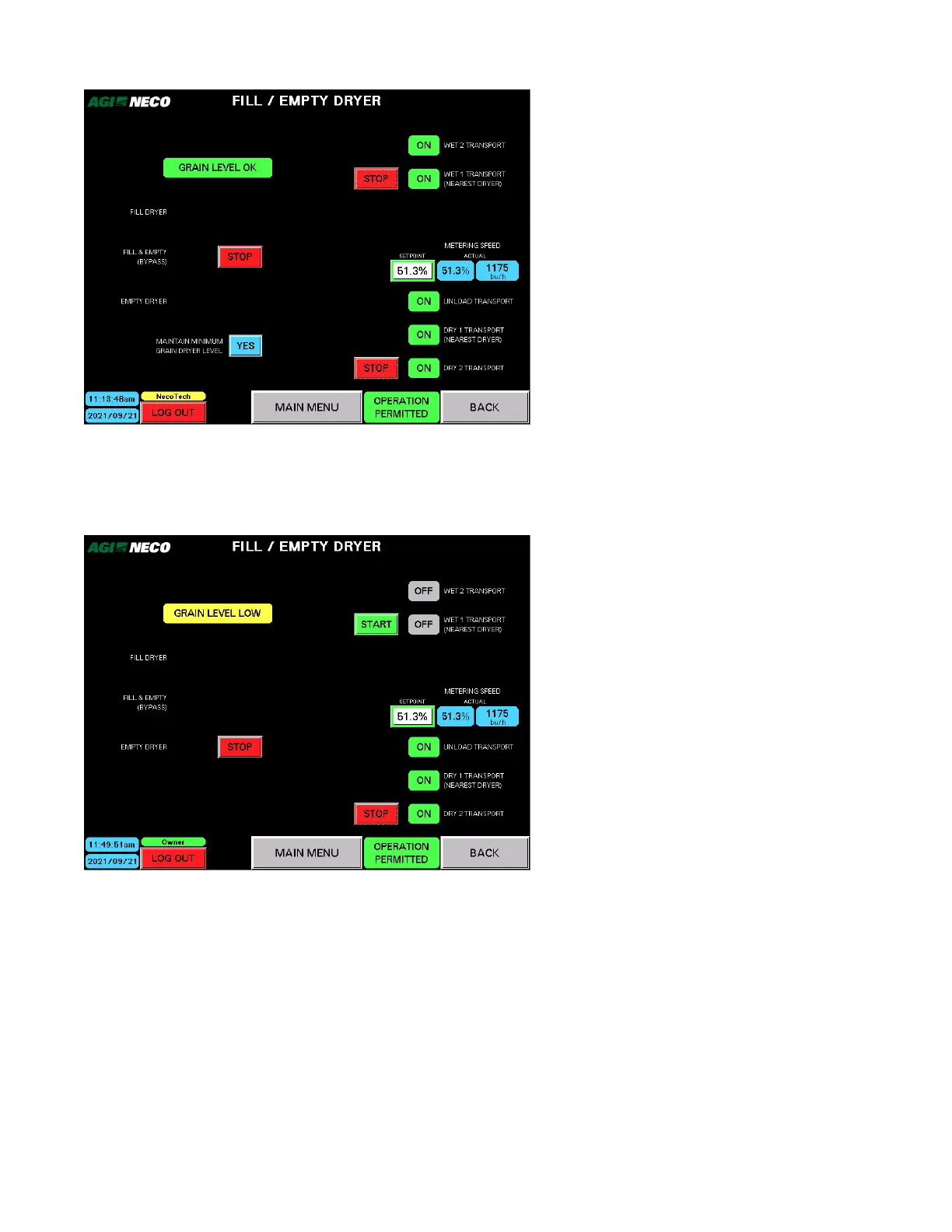

Empty Dryer
• Used when no further filling of wet grain is to occur and the remaining grain must be discharged.
• Tap START to start; tap STOP to stop.
Manual Mode
• Press the Manual Mode button to allow manual operation of the Wet 1, Wet 2 and Dry 1, Dry 2 transports
when not drying.
• The external transports can be run manually without the need for additional external local/auto switches.
• Both the Wet 1 & Wet 2 transports as well as Dry 1 & Dry 2 transports can be interlocked so that if one
faults out the other will stop.
4. OPERATION CONTINUOUS MIXED-FLOW GRAIN DRYER WITH COMMANDER CONTROL SYSTEM
