84 7713395 R2

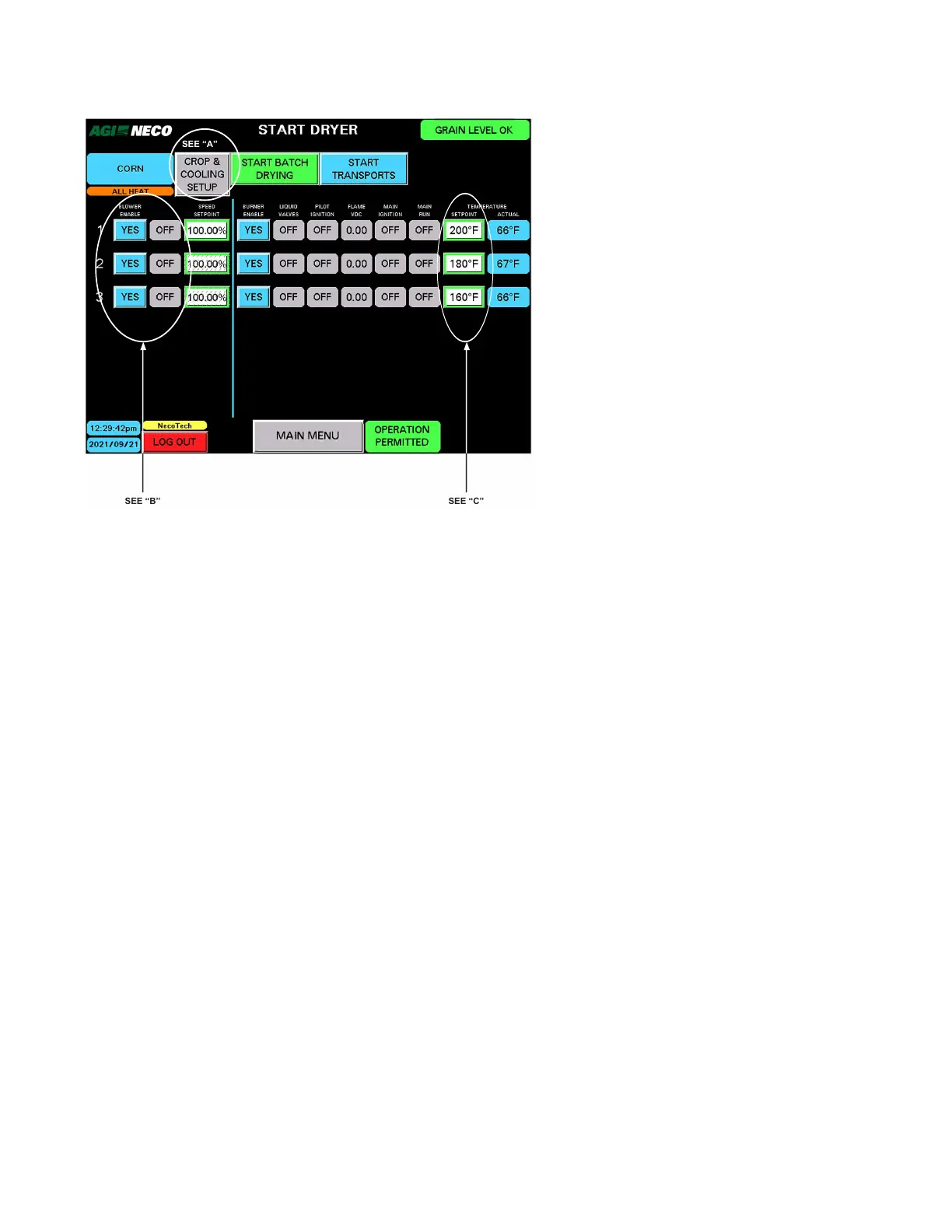

Figure 98. Start Dryer – Main
2021/09/21
SEE “A”
SEE “B”
SEE “C”
A. Crop and Cooling Setup
This CROP/TIER screen appears when CROP AND COOLING SETUP is selected. This screen displays YES beside the
current crop selection. The operator can:
• Select a different crop
• Set cooling tiers
• Edit or enter a crop name or description
4. OPERATION CONTINUOUS MIXED-FLOW GRAIN DRYER WITH COMMANDER CONTROL SYSTEM
