3 Inlets
Stage 2. Solvent purging
After the sample has transferred to the column, the split
vent valve opens to purge remaining solvent vapor from the
inlet.
Timelines

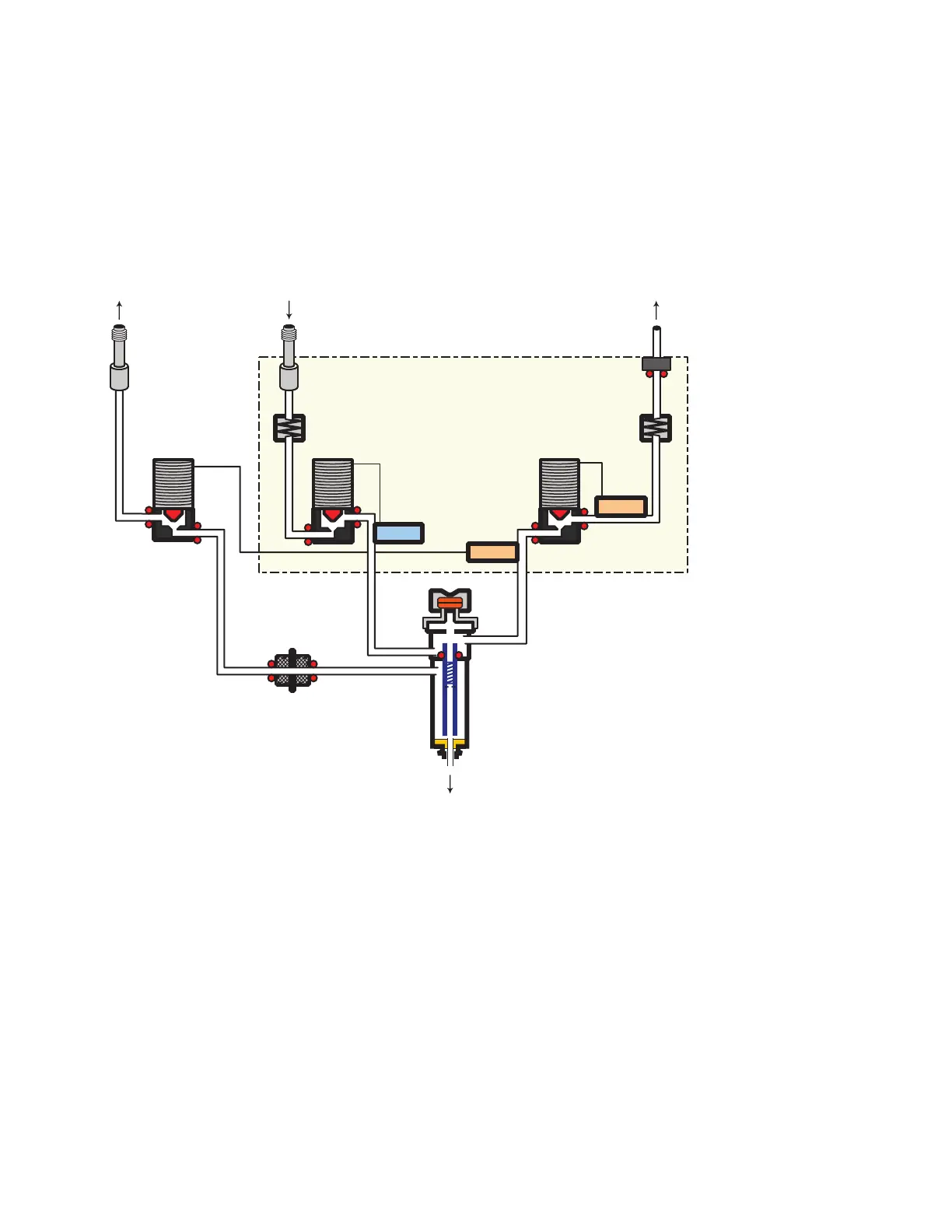

This figure summarizes the flow, pressure, and temperature
changes during a splitless mode analysis.
Valve
Frit Frit
Valve
EPC Module
Valve
Split Vent Trap
PTV Inlet Weldment
FS = Flow Sensor
PS = Pressure Sensor
FS
PS
PS
Split
Carrier Supply
80 PSI
Septum Purge
Column
