Inlets 3
Advanced Operation Manual 129
Setpoint dependencies
Some setpoints are interdependent. If you change one
setpoint, other setpoints may change to compensate. With a
defined capillary column, setting column flow or linear
velocity will set the inlet pressure.

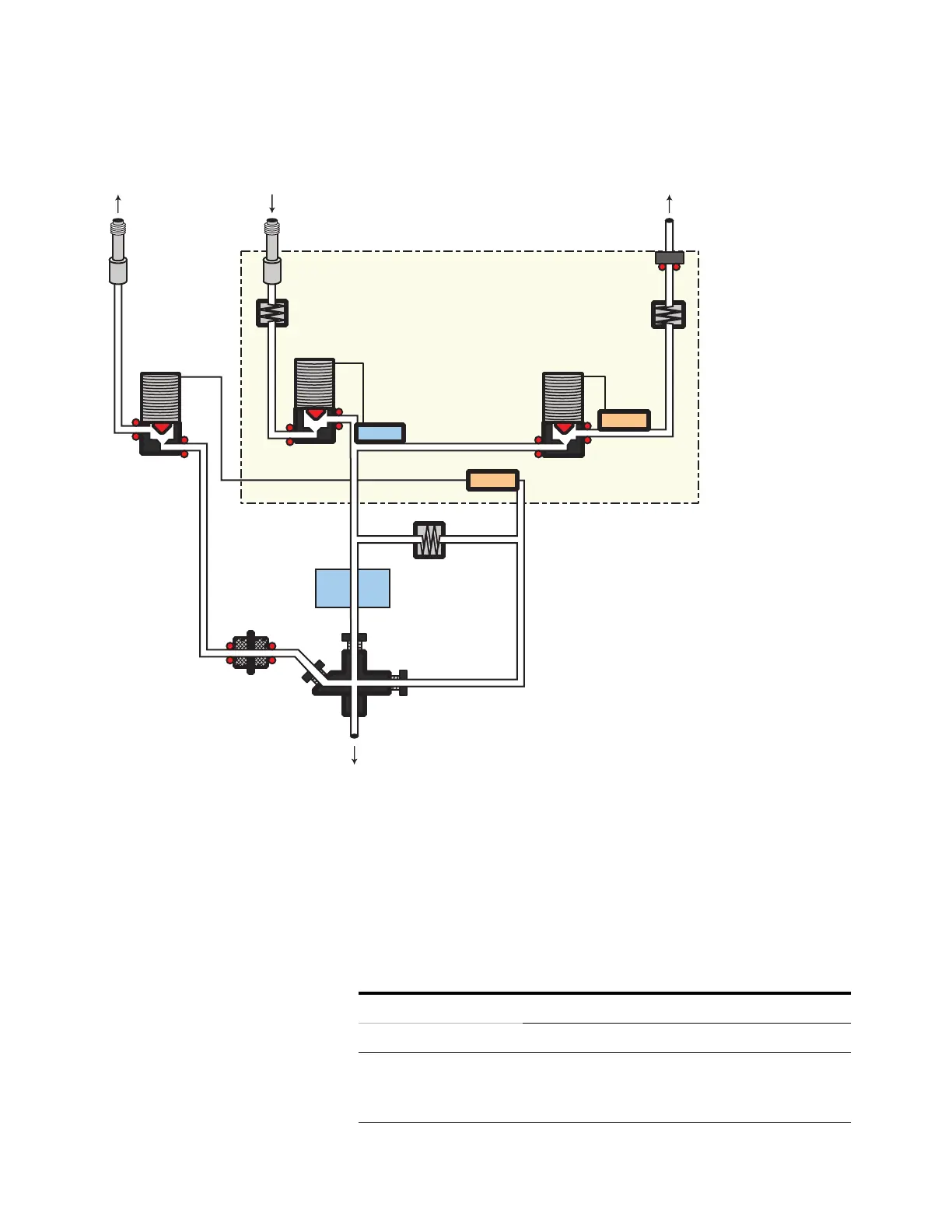

Valve
Frit
Frit
Frit
Valve
EPC Module
Valve
Split Vent Trap
Gas Sampling Valve
Headspace
Purge and Trap
FS = Flow Sensor
PS = Pressure Sensor
Column
FS
PS
PS
Split
Carrier Supply
80 PSI
Septum Purge
Tabl e 32 Setpoint dependencies
When you change These setpoints change
Column defined Column not defined
Pressure Column flow*
Split flow
Total flow
No changes
