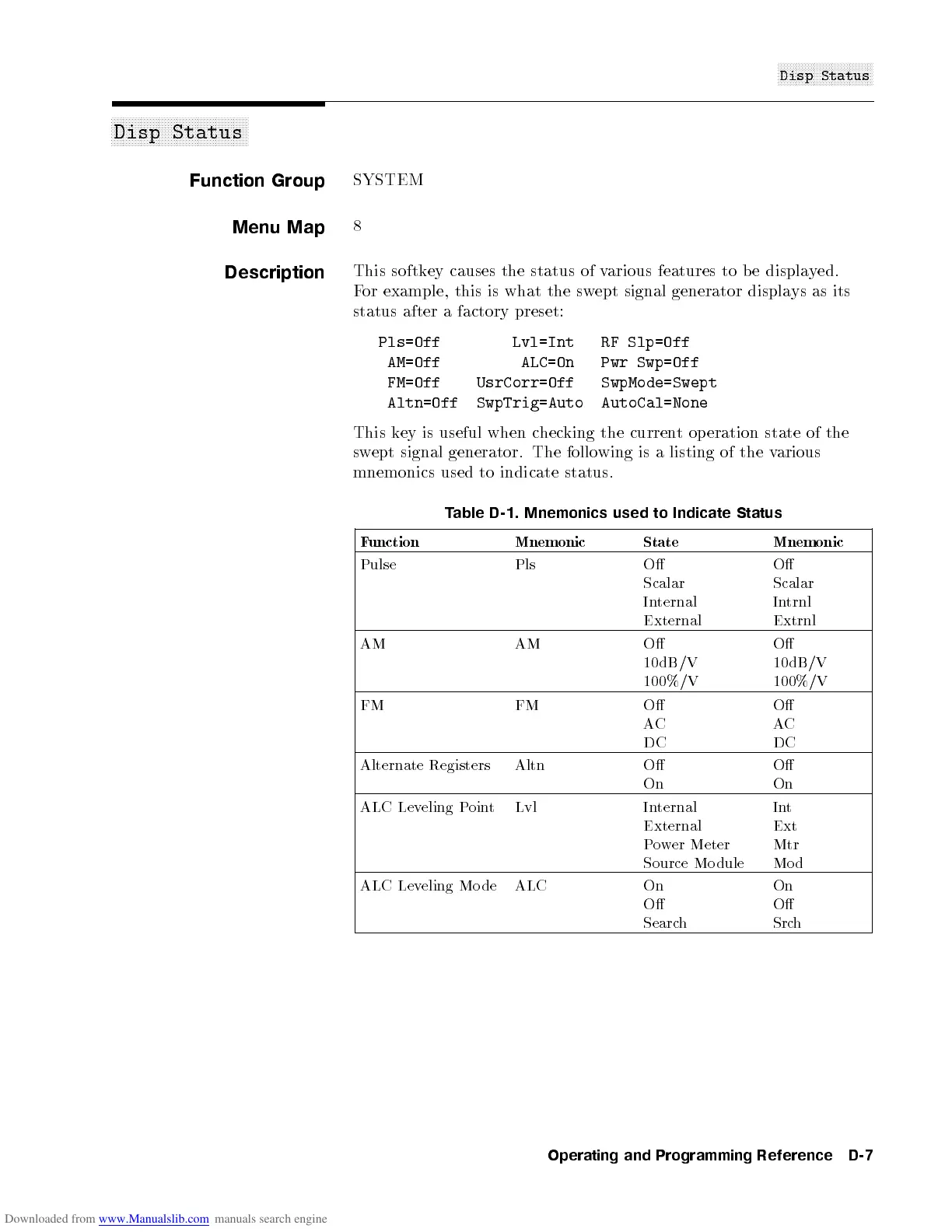

Disp Status
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
Disp Status
Function Group
SYSTEM
Menu Map
8
Description
This softkey causes the status of various features to b e displayed.
For example, this is what the swept signal generator displays as its
status after a factory preset:
Pls=Off Lvl=Int RF Slp=Off
AM=Off ALC=On Pwr Swp=Off
FM=Off UsrCorr=Off SwpMode=Swept
Altn=Off SwpTrig=Auto AutoCal=None
This key is useful when checking the current operation state of the
swept signal generator. The following is a listing of the various
mnemonics used to indicate status.
Table D-1. Mnemonics used to Indicate Status
Function Mnemonic State Mnemonic
Pulse Pls O O
Scalar Scalar
Internal Intrnl
External Extrnl
AM AM O O
10dB/V 10dB/V
100%/V 100%/V
FM FM O O
AC AC
DC DC
Alternate Registers Altn O O
On On
ALC Leveling Point Lvl Internal Int
External Ext
Power Meter Mtr
Source Module Mo d
ALC Leveling Mo de ALC On On
O O
Search Srch
Operating and Programming Reference D-7
