Agilent Technologies 83620B User Manual

I
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa

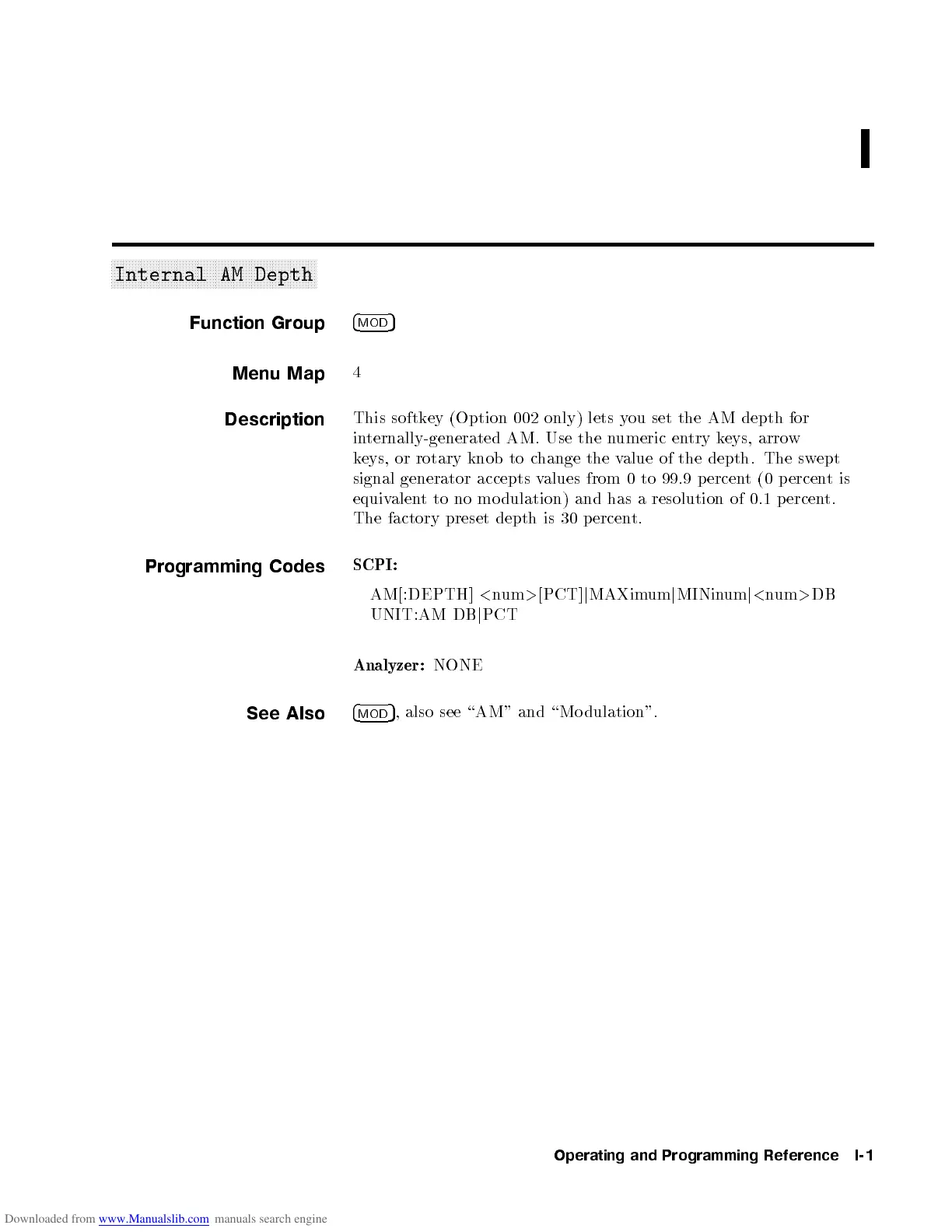

Internal AM Depth
Function Group
4
MOD
5
Menu Map
4
Description
This softkey (Option 002 only) lets you set the AM depth for
internally-generated AM. Use the numeric entry keys, arrow
keys, or rotary knob to change the value of the depth. The swept
signal generator accepts values from 0 to 99.9 p ercent (0 p ercentis
equivalent to no mo dulation) and has a resolution of 0.1 p ercen
t.
The factory preset depth is 30 p ercent.
Programming Codes
SCPI:
AM[:DEPTH] < num > [PCT] j MAXimum j MINinum j < num > DB
UNIT:AM DB j PCT
Analyzer: NONE
See Also
4
MOD
5 , also see \AM" and \Mo dulation".
Operating and Programming Reference I-1
