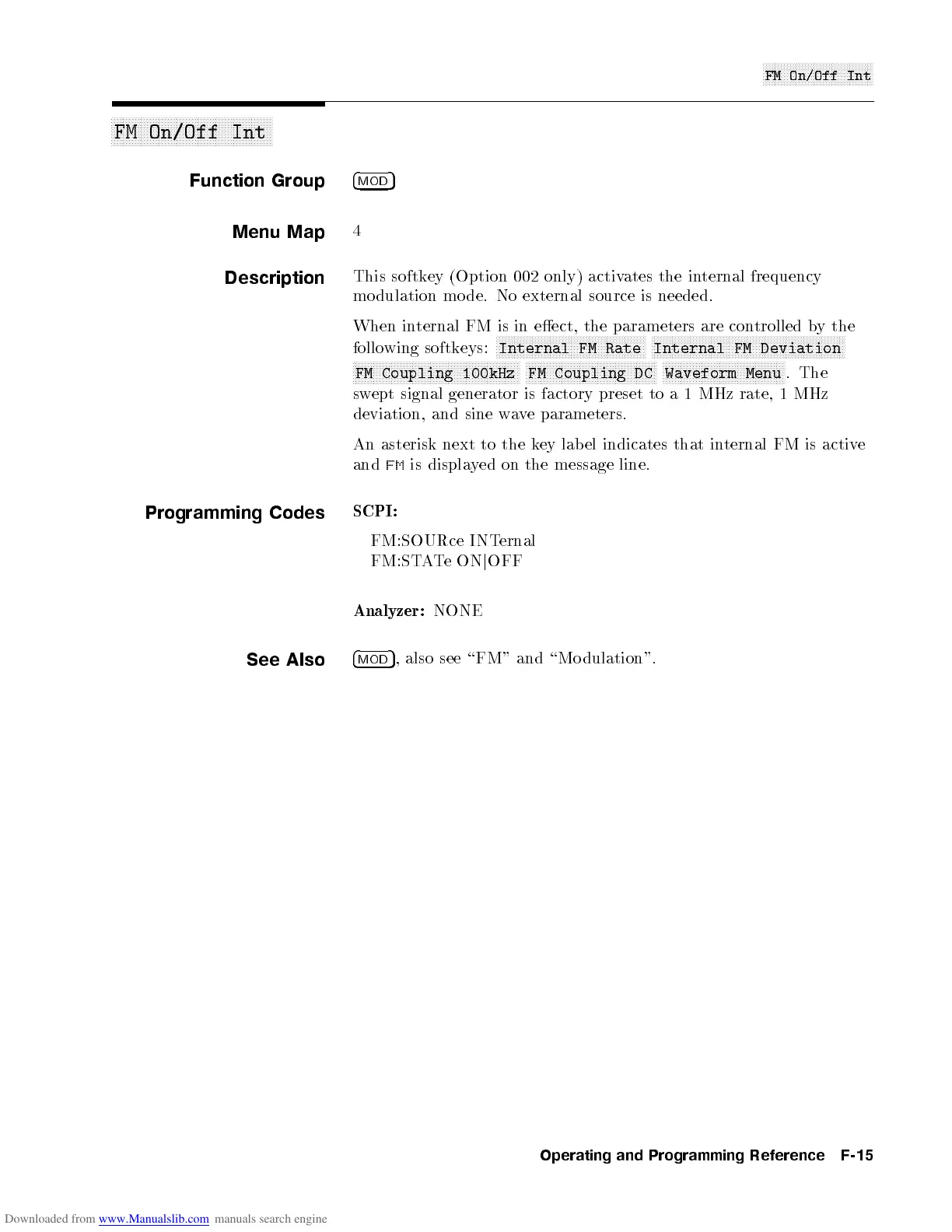

FM On/Off Int
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
FM On/Off Int
Function Group
4
MOD
5
Menu Map
4
Description
This softkey (Option 002 only) activates the internal frequency
mo dulation mo de. No external source is needed.
When internal FM is in eect, the parameters are controlled by the
following softkeys:
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Internal FM Rate
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Internal FM Deviation
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
FM Coupling 100kHz
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
FM Coupling DC
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Waveform Menu
. The
swept signal generator is factory preset to a 1 MHz rate, 1 MHz
deviation, and sine wave parameters.
An asterisk next to the key lab el indicates that internal FM is active
and
FM
is displayed on the message line.
Programming Codes
SCPI:
FM:SOURce INTernal
FM:STATeON
j
OFF
Analyzer:
NONE
See Also
4
MOD
5
, also see \FM" and \Mo dulation".
Operating and Programming Reference F-15
