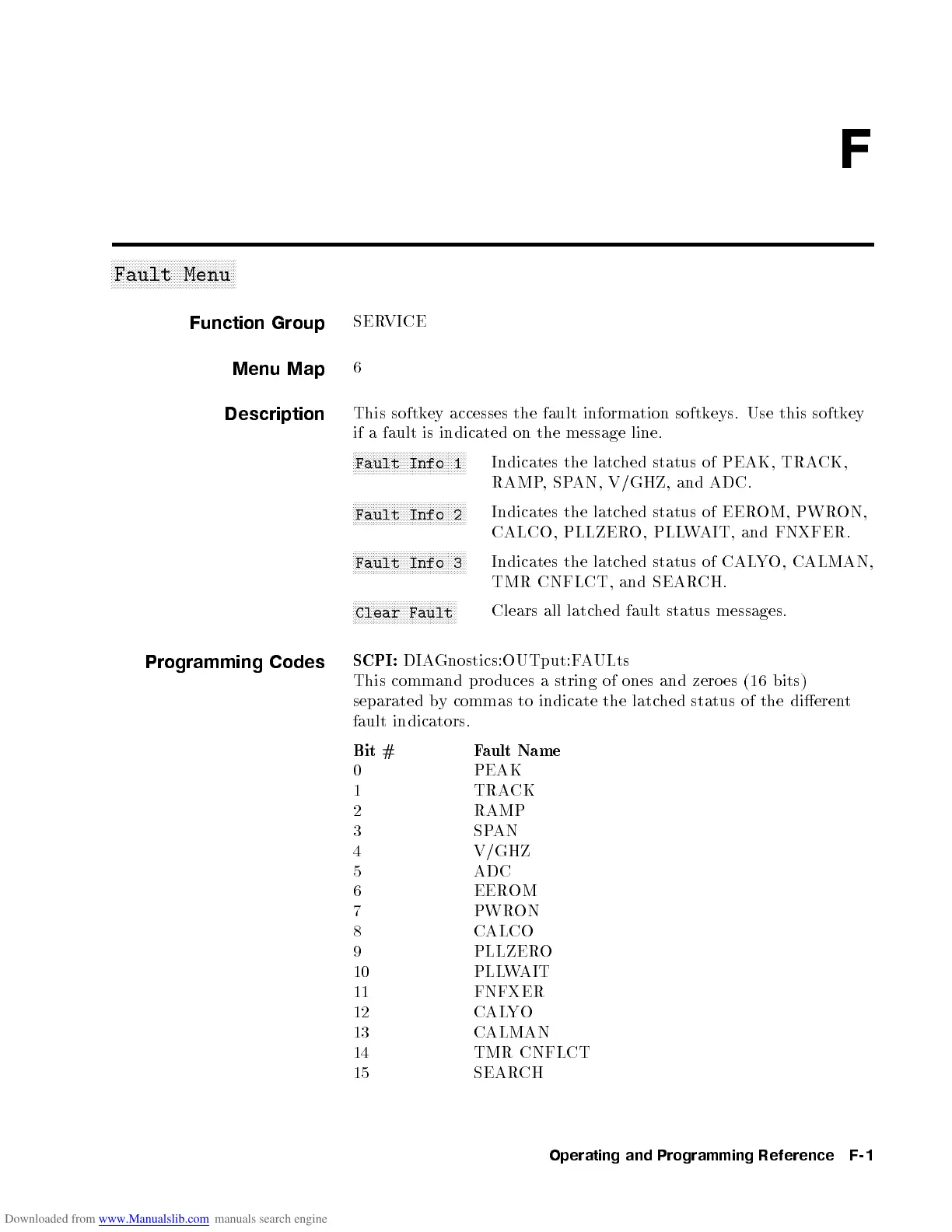

Fault Menu
Function Group
SERVICE
Menu Map
6
Description
This softkey accesses the fault information softkeys. Use this softkey
if a fault is indicated on the message line.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Fault Info 1
Indicates the latched status of PEAK, TRA
CK,
RAMP,SPAN, V/GHZ, and ADC.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Fault Info 2
Indicates the latched status of EEROM, PWRON,
CALCO, PLLZERO, PLLWAIT, and FNXFER.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Fault Info 3
Indicates the latched status of CALYO, CALMAN,
TMR CNFLCT, and SEARCH.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Clear Fault
Clears all latched fault status messages.
Programming Codes
SCPI: DIAGnostics:OUTput:FAULts
This command pro duces a string of ones and zeroes (16 bits)
separated by commas to indicate the latched status of the dieren
t
fault indicators.
Bit # Fault Name
0 PEAK
1 TRACK
2 RAMP
3 SPAN
4 V/GHZ
5 ADC
6 EEROM
7 PWRON
8 CALCO
9 PLLZERO
10 PLLWAIT
11 FNFXER
12 CALYO
13 CALMAN
14 TMR CNFLCT
15 SEARCH
