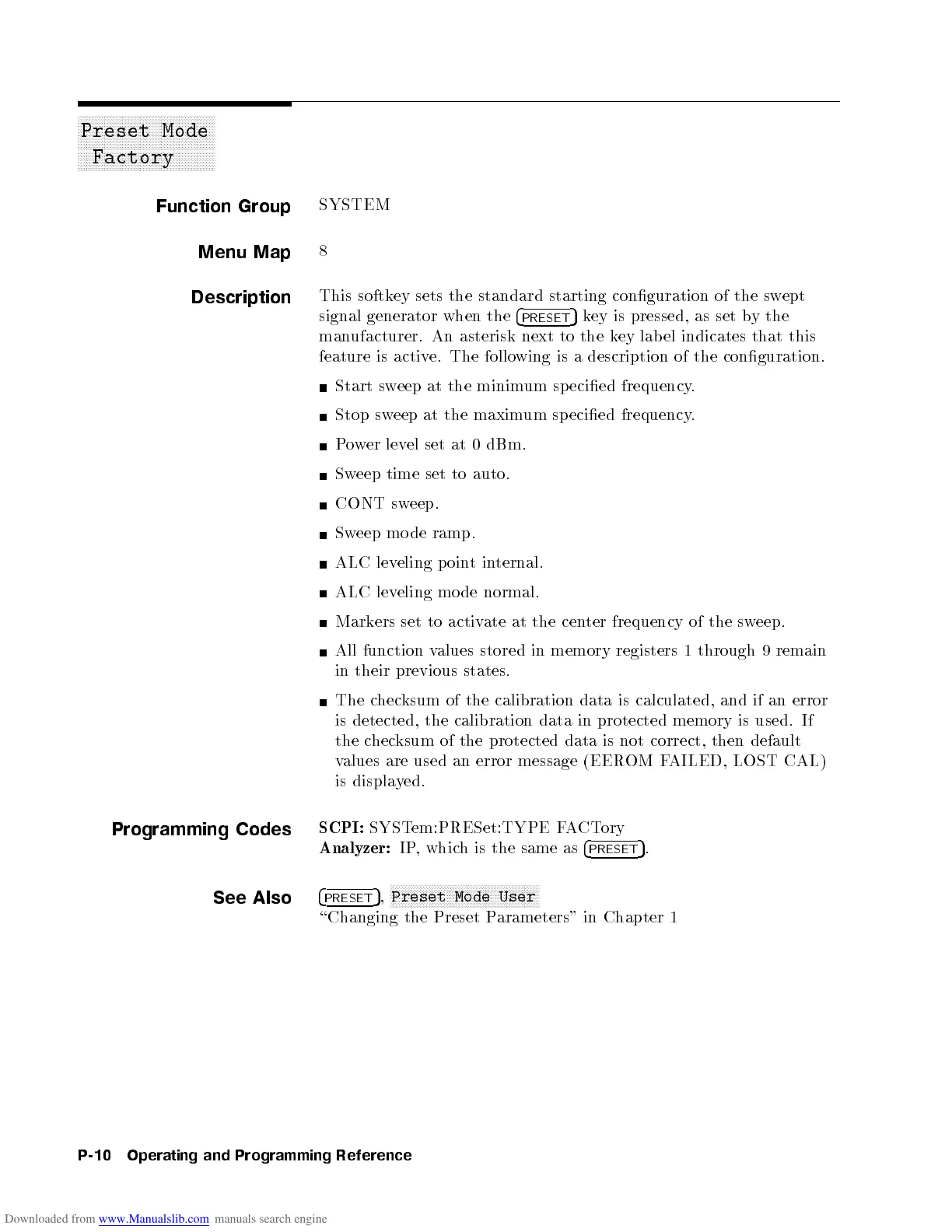

Preset Mode
Factory
Function Group
SYSTEM
Menu Map
8
Description
This softkey sets the standard starting conguration of the swept
signal generator when the
4
PRESET
5
key is pressed, as set by the
manufacturer. An asterisk next to the key lab el indicates that this
feature is active. The following is a description of the conguration.
Start sweep at the minimum specied frequency.
Stop sweep at the maximum sp ecied frequency.
Power level set at 0 dBm.
Sweep time set to auto.
CONT sweep.
Sweep mo de ramp.
ALC leveling pointinternal.
ALC leveling mode normal.
Markers set to activate at the center frequency of the sweep.
All function values stored in memory registers 1 through 9 remain
in their previous states.
The checksum of the calibration data is calculated, and if an error
is detected, the calibration data in protected memory is used. If
the checksum of the protected data is not correct, then default
values are used an error message (EEROM FAILED, LOST CAL)
is displayed.
Programming Codes
SCPI:
SYSTem:PRESet:TYPE FACTory
Analyzer:
IP, which is the same as
4
PRESET
5
.
See Also
4
PRESET
5
,
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Preset Mode User
\Changing the Preset Parameters" in Chapter 1
P-10 Operating and Programming Reference
To Next Page
