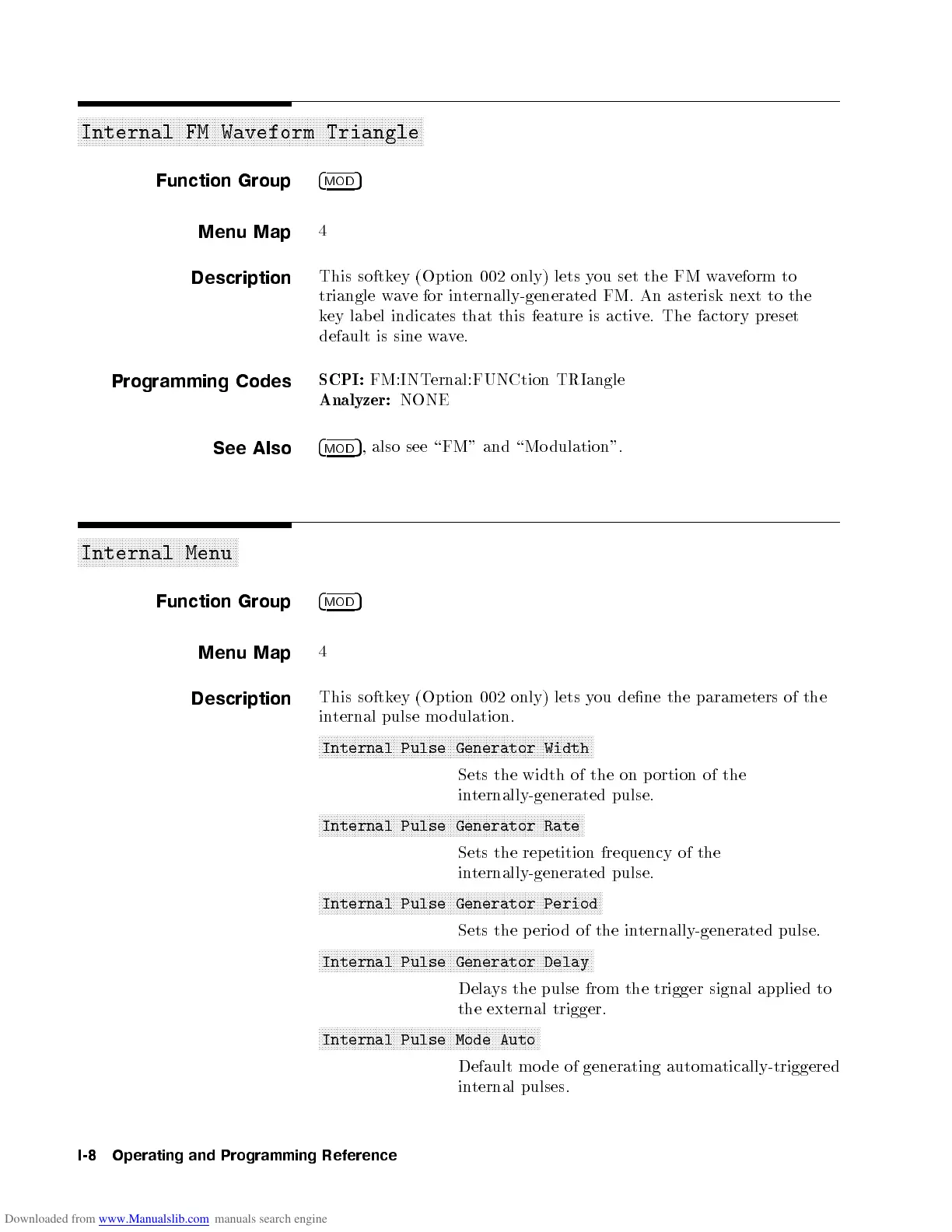

Internal FM Waveform Triangle
Function Group
4
MOD
5
Menu Map
4
Description
This softkey (Option 002 only) lets you set the FM waveform to
triangle wave for internally-generated FM. An asterisk next to the
key lab el indicates that this feature is active. The factory preset
default is sine wave.
Programming Codes
SCPI: FM:INTernal:FUNCtion TRIangle
Analyzer: NONE
See Also
4
MOD
5 , also see \FM" and \Mo dulation".
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
Internal Menu
Function Group
4
MOD
5
Menu Map
4
Description
This softkey (Option 002 only) lets you dene the parameters of the
internal pulse mo dulation.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Internal Pulse Generator Width
Sets the width of the on portion of the
internally-generated pulse.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Internal Pulse Generator Rate
Sets the rep etition frequency of the
internally-generated pulse.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Internal Pulse Generator Period
Sets the p erio d of the internally-generated pulse.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Internal Pulse Generator Delay
Delays the pulse from the trigger signal applied to
the external trigger.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Internal Pulse Mode Auto
Default mo de of generating automatically-triggered
internal pulses.
I-8 Operating and Programming Reference
