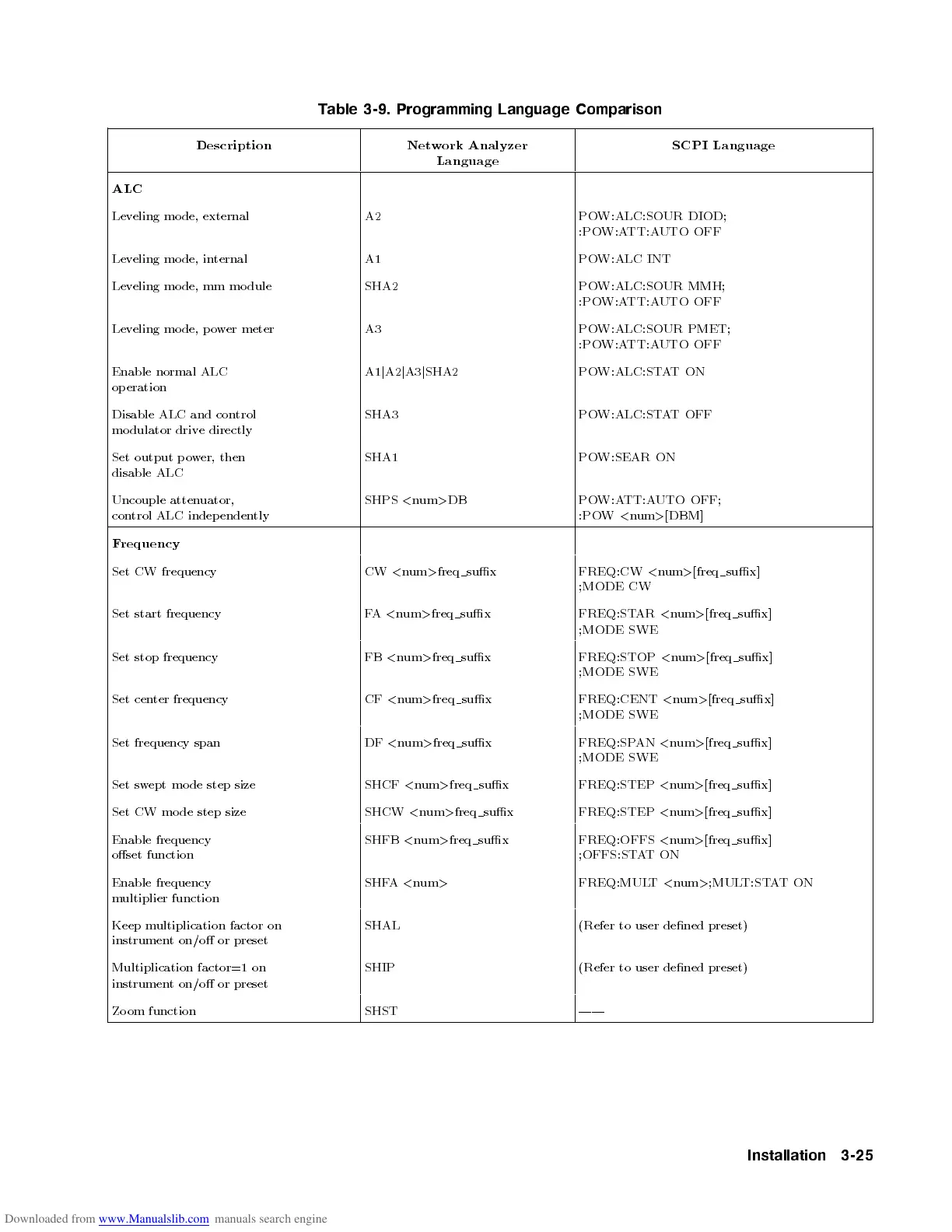

Table 3-9. Programming Language Comparison
Description Network Analyzer
Language
SCPI Language
ALC
Leveling mode, external A2 POW:ALC:SOUR DIOD;
:POW:ATT:AUTO OFF
Leveling mode, internal A1 POW:ALC INT
Leveling mode, mm mo dule SHA2 POW:ALC:SOUR MMH;
:POW:ATT:AUTO OFF
Leveling mode, p ower meter A3 POW:ALC:SOUR PMET;
:POW:ATT:AUTO OFF
Enable normal ALC
op eration
A1 j A2 j A3 j SHA2 POW:ALC:STATON
Disable ALC and control
modulator drive directly
SHA3 POW:ALC:STAT OFF
Set output p ower, then
disable ALC
SHA1 POW:SEAR ON
Uncouple attenuator,
control ALC indep endently
SHPS < num > DB POW:ATT:AUTO OFF;
:POW < num > [DBM]
Frequency
Set CW frequency CW < num > freq sux FREQ:CW < num > [freq sux]
;MODE CW
Set start frequency FA < num > freq sux FREQ:STAR < num > [freq sux]
;MODE SWE
Set stop frequency FB < num > freq sux FREQ:STOP < num > [freq sux]
;MODE SWE
Set center frequency CF < num > freq sux FREQ:CENT < num > [freq sux]
;MODE SWE
Set frequency span DF < num > freq sux FREQ:SPAN < num > [freq sux]
;MODE SWE
Set swept mo de step size SHCF < num > freq sux FREQ:STEP < num > [freq sux]
Set CW mode step size SHCW < num > freq sux FREQ:STEP < num > [freq sux]
Enable frequency
oset function
SHFB < num > freq sux FREQ:OFFS < num > [freq sux]
;OFFS:STATON
Enable frequency
multiplier function
SHFA < num > FREQ:MULT < num > ;MULT:STATON
Keep multiplication factor on
instrument on/o or preset
SHAL (Refer to user dened preset)
Multiplication factor=1 on
instrument on/o or preset
SHIP (Refer to user dened preset)
Zo om function SHST ||
