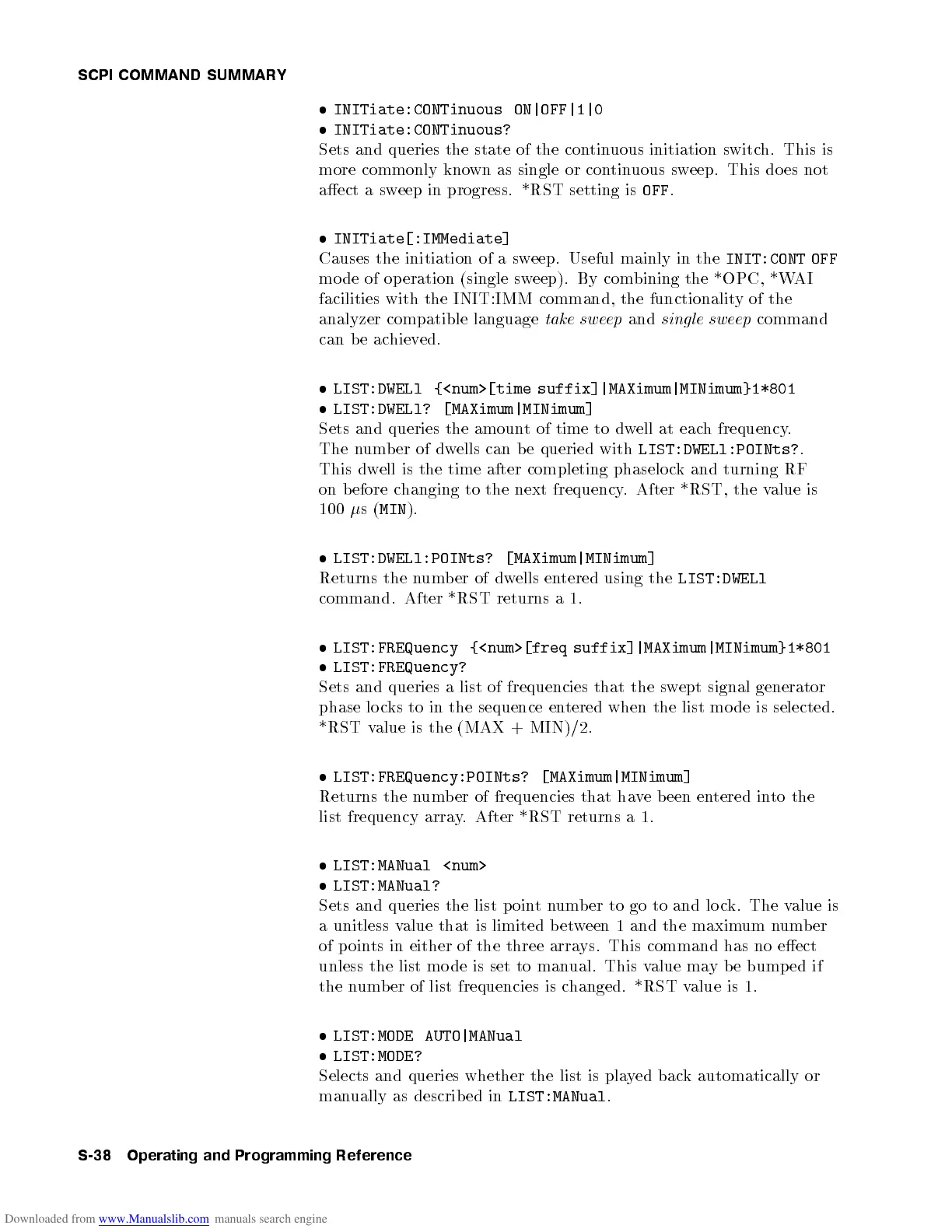

SCPI COMMAND SUMMARY
INITiate:CONTinuous ON|OFF|1|0
INITiate:CONTinuous?
Sets and queries the state of the continuous initiation switch. This is
more commonly known as single or continuous sweep. This do es not
aect a sweep in progress. *RST setting is
OFF
.
INITiate[:IMMediate]
Causes the initiation of a sweep. Useful mainly in the
INIT:CONT OFF
mo de of op eration (single sweep). By combining the *OPC, *WAI
facilities with the INIT:IMM command, the functionality of the
analyzer compatible language
take sweep
and
single sweep
command
can be achieved.
LIST:DWELl {<num>[time suffix]|MAXimum|MINimum}1*801
LIST:DWELl? [MAXimum|MINimum]
Sets and queries the amount of time to dwell at each frequency.
The number of dwells can b e queried with
LIST:DWELl:POINts?
.
This dwell is the time after completing phaselo ck and turning RF
on b efore changing to the next frequency. After *RST, the value is
100
s(
MIN
).
LIST:DWELl:POINts? [MAXimum|MINimum]
Returns the number of dwells entered using the
LIST:DWELl
command. After *RST returns a 1.
LIST:FREQuency {<num>[freq suffix]|MAXimum|MINimum}1*801
LIST:FREQuency?
Sets and queries a list of frequencies that the sw
ept signal generator
phase lo cks to in the sequence entered when the list mo de is selected.
*RST value is the (MAX + MIN)/2.
LIST:FREQuency:POINts? [MAXimum|MINimum]
Returns the number of frequencies that have b een entered into the
list frequency array. After *RST returns a 1.
LIST:MANual <num>
LIST:MANual?
Sets and queries the list p ointnumber to go to and lo ck. The value is
a unitless value that is limited b etween 1 and the maximum number
of p oints in either of the three arrays. This command has no eect
unless the list mo de is set to manual. This value may b e bumped if
the number of list frequencies is changed. *RST value is 1.
LIST:MODE AUTO|MANual
LIST:MODE?
Selects and queries whether the list is pla
yed back automatically or
manually as describ ed in
LIST:MANual
.
S-38 Operating and Programming Reference
