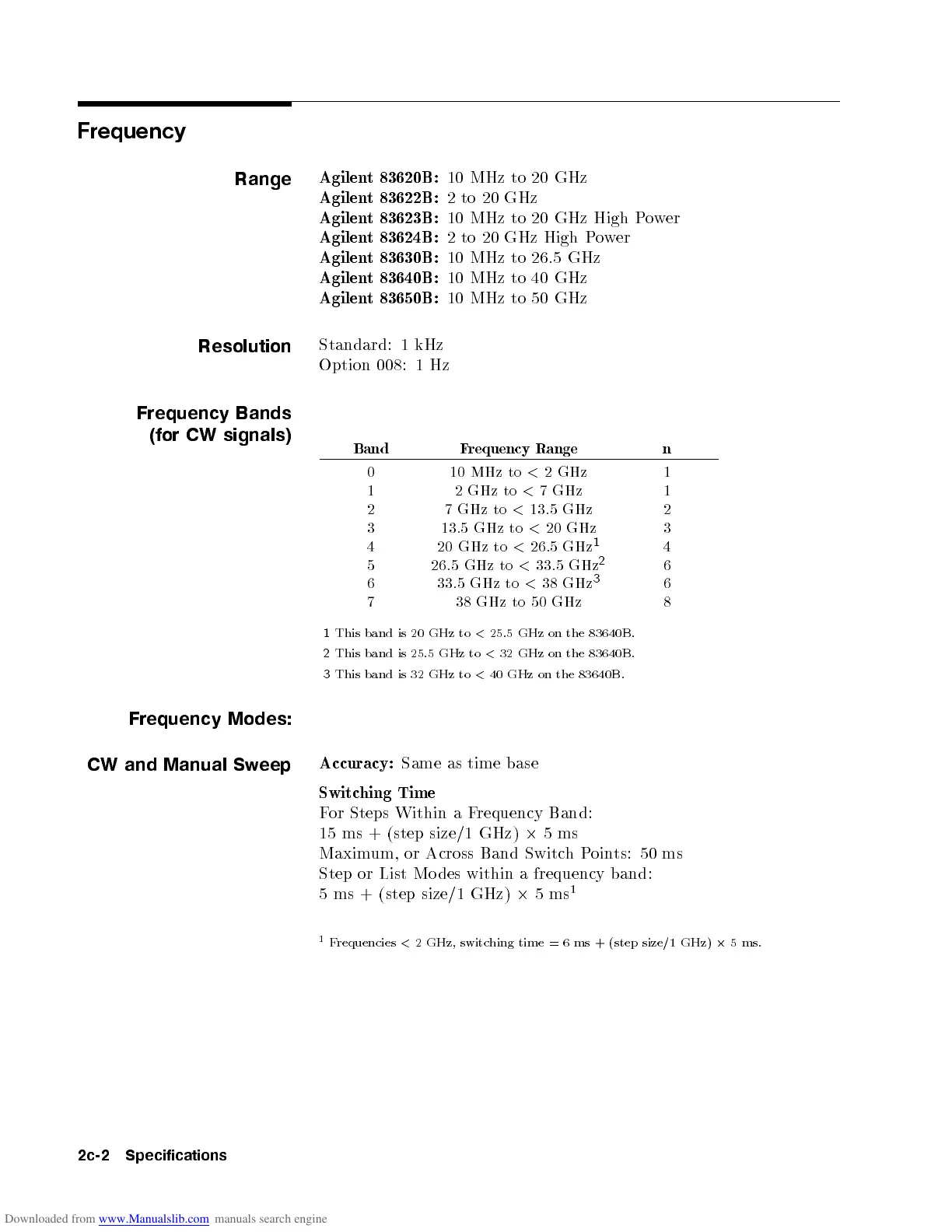

Agilent Technologies 83620B

Frequency
Range
Agilent 83620B: 10 MHz to 20 GHz
Agilent 83622B: 2 to 20 GHz
Agilent 83623B: 10 MHz to 20 GHz High Power
Agilent 83624B: 2 to 20 GHz High Power
Agilent 83630B: 10 MHz to 26.5 GHz
Agilent 83640B: 10 MHz to 40 GHz
Agilent 83650B: 10 MHz to 50 GHz
Resolution
Standard: 1 kHz
Option 008: 1 Hz
Frequency Bands
(for CW signals)
Band Frequency Range n
0 10 MHz to < 2 GHz 1
1 2 GHz to < 7 GHz 1
2 7 GHz to < 13.5 GHz 2
3 13.5 GHz to < 20 GHz 3
4 20 GHz to < 26.5 GHz
1
4
5 26.5 GHz to < 33.5 GHz
2
6
6 33.5 GHz to < 38 GHz
3
6
7 38 GHz to 50 GHz 8
1 This band is 20 GHz to < 25.5 GHz on the 83640B.
2 This band is 25.5 GHz to < 32 GHz on the 83640B.
3 This band is 32 GHz to < 40 GHz on the 83640B.
Frequency Modes:
CW and Manual Sweep
Accuracy: Same as time base
Switching Time
For Steps Within a Frequency Band:
15 ms + (step size/1 GHz) 2 5ms
Maximum, or Across Band SwitchPoints: 50 ms
Step or List Mo des within a frequency band:
5 ms + (step size/1 GHz) 2 5ms
1
1
Frequencies < 2 GHz, switching time = 6 ms + (step size/1 GHz) 2 5 ms.
2c-2 Specifications
