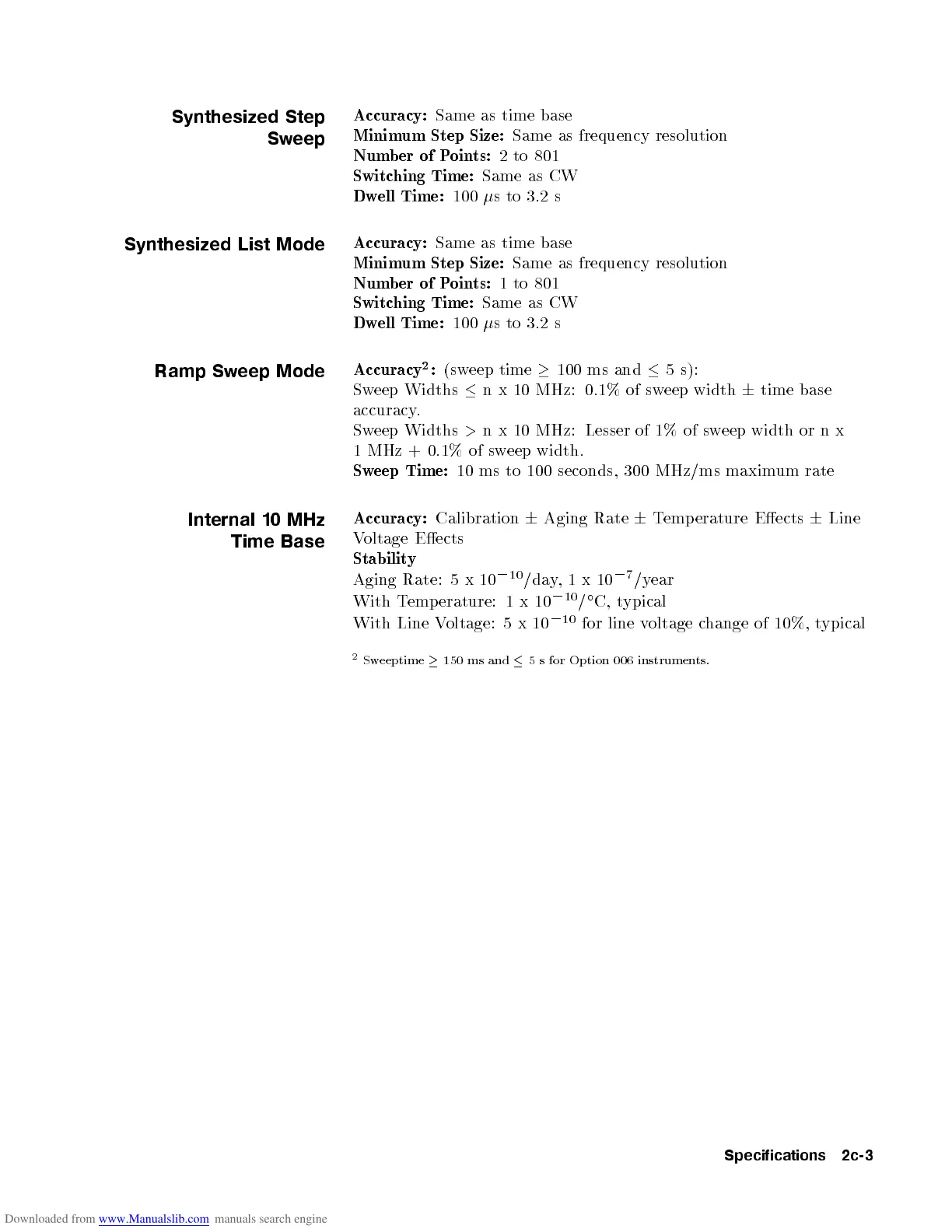

Synthesized Step
Sweep
Accuracy:
Same as time base
Minimum Step Size:
Same as frequency resolution
Number of Points:
2 to 801
Switching Time:
Same as CW
Dwell Time:
100
s to 3.2 s
Synthesized List Mode
Accuracy:
Same as time base
Minimum Step Size:
Same as frequency resolution
Number of Points:
1 to 801
Switching Time:
Same as CW
Dwell Time:
100
s to 3.2 s
Ramp Sweep Mode
Accuracy
2
:
(sweep time
100 ms and
5 s):
Sweep Widths
n x 10 MHz: 0.1% of sweep width
6
time base
accuracy.
Sweep Widths
>
n x 10 MHz: Lesser of 1% of sweep width or n x
1 MHz + 0.1% of sweep width.
Sweep Time:
10 ms to 100 seconds, 300 MHz/ms maximum rate
Internal 10 MHz
Time Base
Accuracy:
Calibration
6
Aging Rate
6
Temperature Eects
6
Line
Voltage Eects
Stability
Aging Rate: 5 x 10
0
10
/day,1 x10
0
7
/year
With Temperature: 1 x 10
0
10
/
C, typical
With Line Voltage: 5 x 10
0
10
for line voltage change of 10%, typical
2
Sweeptime
150 ms and
5 s for Option 006 instruments.
Specifications 2c-3
