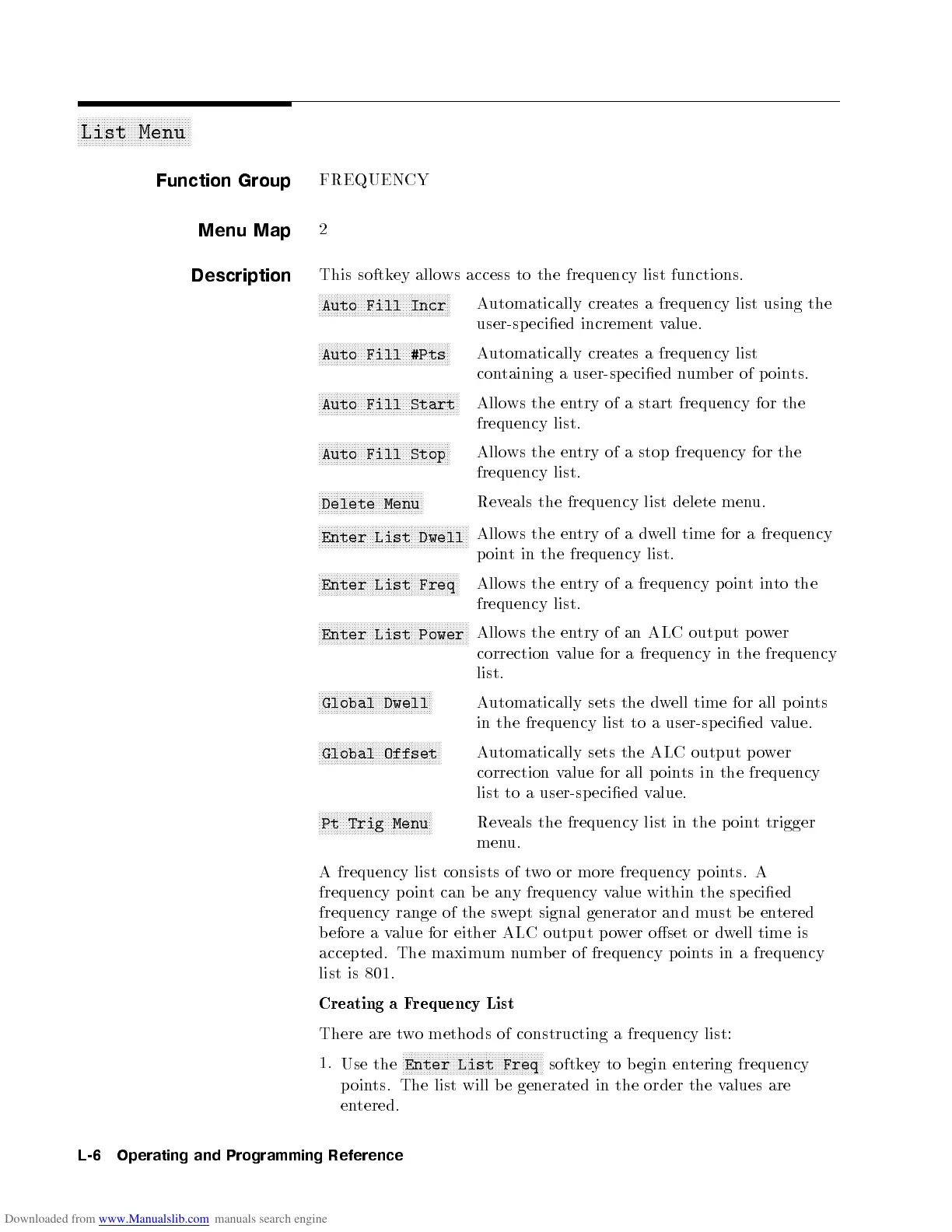

List Menu
Function Group
FREQUENCY
Menu Map
2
Description
This softkey allows access to the frequency list functions.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Auto Fill Incr
Automatically creates a frequency list using the
user-specied incrementvalue.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Auto Fill #Pts
Automatically creates a frequency list
containing a user-sp ecied numb er of p oints.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Auto Fill Start
Allows the entry of a start frequency for the
frequency list.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Auto Fill Stop
Allows the entry of a stop frequency for the
frequency list.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Delete Menu
Reveals the frequency list delete menu.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Enter List Dwell
Allows the entry of a dwell time for a frequency
point in the frequency list.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Enter List Freq
Allows the entry of a frequency p ointinto the
frequency list.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Enter List Power
Allows the entry of an ALC output power
correction value for a frequency in the frequency
list.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Global Dwell Automatically sets the dwell time for all points
in the frequency list to a user-specied value.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Global Offset
Automatically sets the ALC output p ower
correction value for all p oints in the frequency
list to a user-specied value.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Pt Trig Menu
Reveals the frequency list in the p oint trigger
menu.
A frequency list consists of two or more frequency p oints. A
frequency p oint can b e any frequency value within the sp ecied
frequency range of the swept signal generator and must b e entered
before a value for either ALC output p ower oset or dwell time is
accepted. The maximum number of frequency points in a frequency
list is 801.
Creating a Frequency List
There are two metho ds of constructing a frequency list:
1.
Use the
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Enter List Freq softkey to begin entering frequency
points. The list will be generated in the order the v
alues are
entered.
L-6 Operating and Programming Reference
