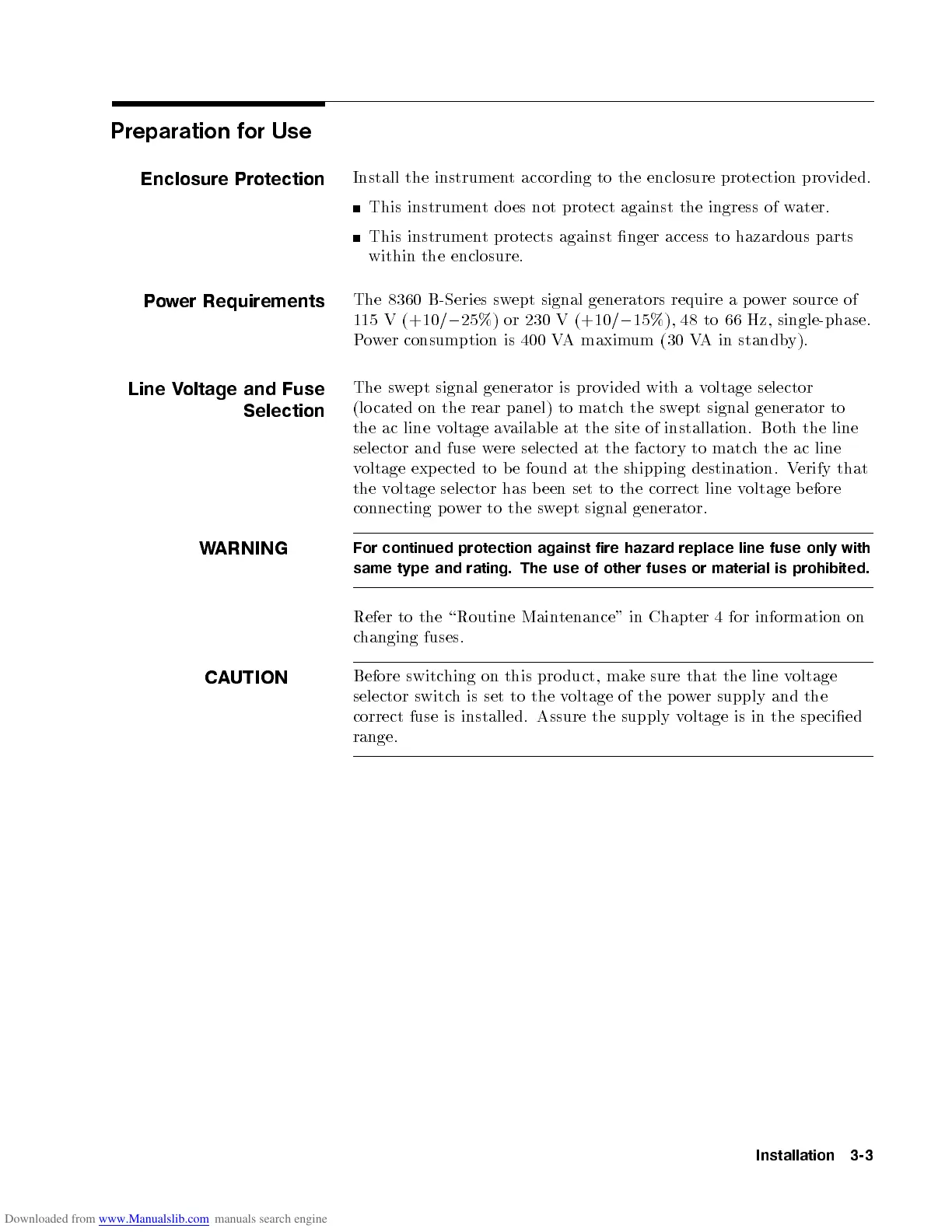

Preparation for Use
Enclosure Protection
Install the instrument according to the enclosure protection provided.
This instrument does not protect against the ingress of water.
This instrument protects against nger access to hazardous parts
within the enclosure.
Power Requirements
The 8360 B-Series swept signal generators require a p ower source of
115 V (+10/
0
25%) or 230 V (+10/
0
15%), 48 to 66 Hz, single-phase.
Power consumption is 400 VA maximum (30 VA in standby).
Line Voltage and Fuse
Selection
The swept signal generator is provided with a voltage selector
(lo cated on the rear panel) to match the swept signal generator to
the ac line voltage available at the site of installation. Both the line
selector and fuse were selected at the factory to match the ac line
voltage expected to be found at the shipping destination. V
erify that
the voltage selector has been set to the correct line v
oltage before
connecting power to the swept signal generator.
WARNING
For continued protection against fire hazard replace line fuse only with
same type and rating. The use of other fuses or material is prohibited.
Refer to the \Routine Maintenance" in Chapter 4 for information on
changing fuses.
CAUTION
Before switching on this pro duct, make sure that the line voltage
selector switch is set to the voltage of the p ower supply and the
correct fuse is installed. Assure the supply voltage is in the sp ecied
range.
Installation 3-3
