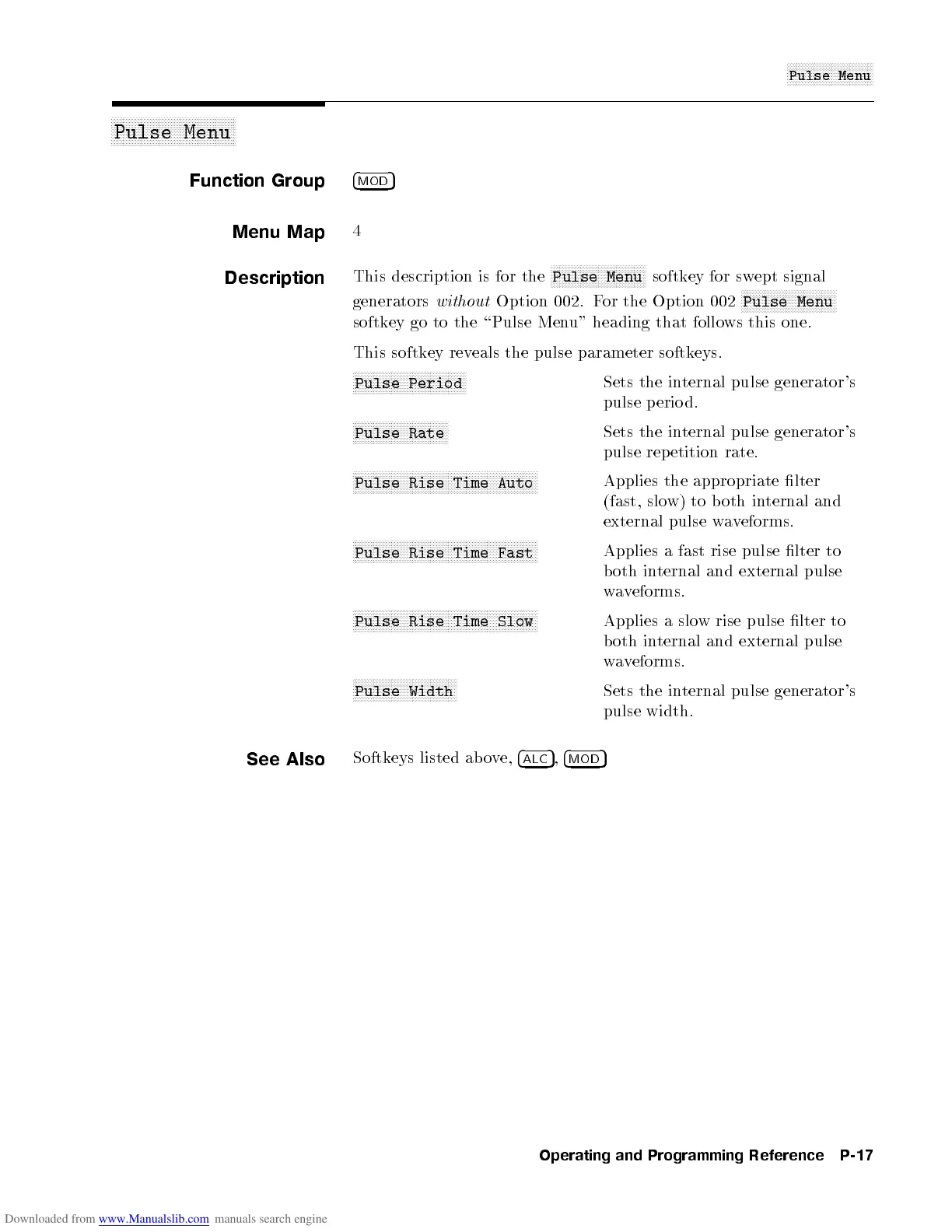

Pulse Menu
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
Pulse Menu
Function Group
4
MOD
5
Menu Map
4
Description
This description is for the
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Pulse Menu softkey for swept signal
generators without Option 002. For the Option 002
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Pulse Menu
softkey go to the \Pulse Menu" heading that follows this one.
This softkey reveals the pulse parameter softkeys.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Pulse Period
Sets the internal pulse generator's
pulse perio d.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Pulse Rate
Sets the internal pulse generator's
pulse repetition rate.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Pulse Rise Time Auto
Applies the appropriate lter
(fast, slow) to b oth internal and
external pulse waveforms.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Pulse Rise Time Fast
Applies a fast rise pulse lter to
both internal and external pulse
waveforms.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Pulse Rise Time Slow Applies a slow rise pulse lter to
both internal and external pulse
waveforms.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Pulse Width Sets the internal pulse generator's
pulse width.
See Also
Softkeys listed ab ove, 4
ALC
5 , 4
MOD
5
Operating and Programming Reference P-17
