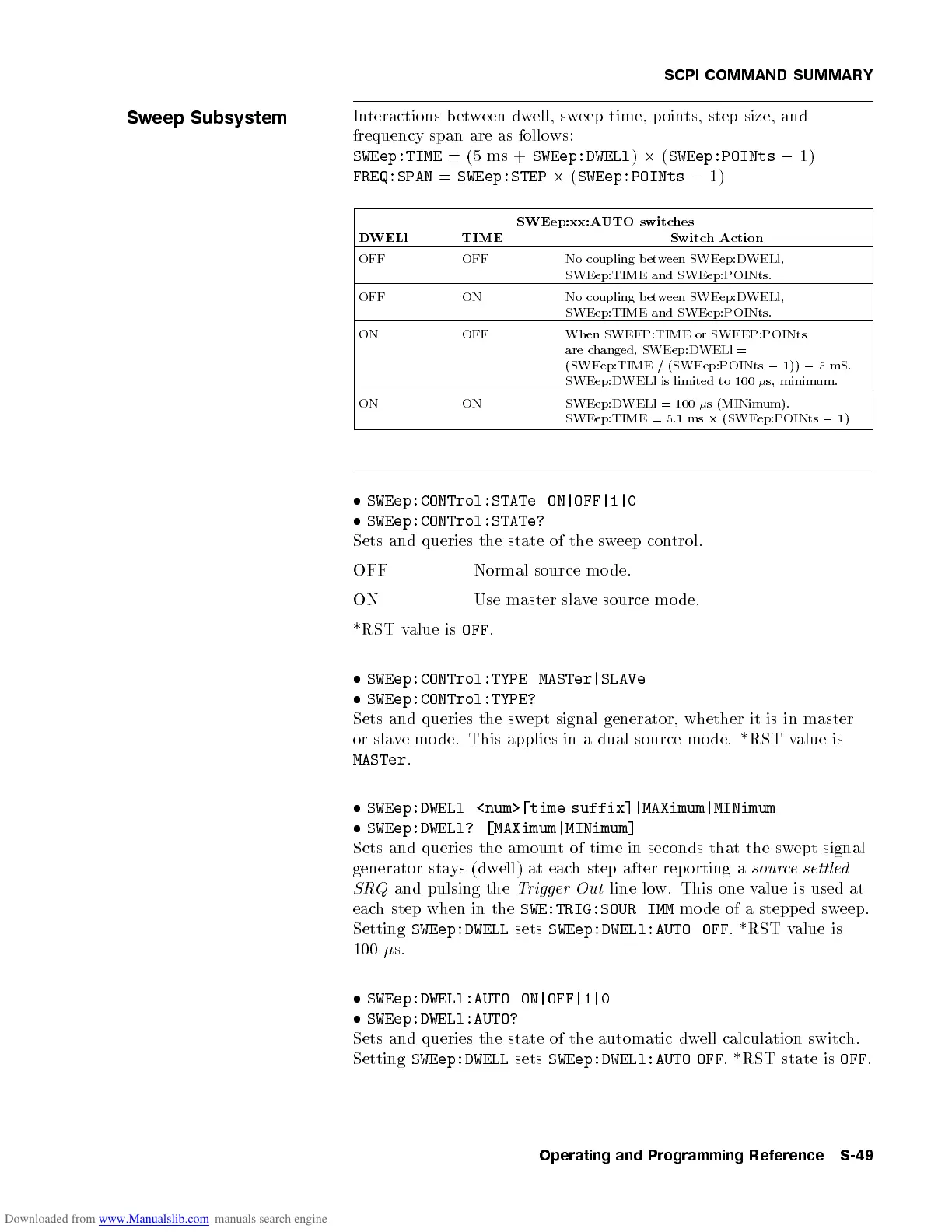

SCPI COMMAND SUMMARY
Sweep Subsystem
Interactions b etween dwell, sweep time, p oints, step size, and
frequency span are as follows:
SWEep:TIME
=(5ms+
SWEep:DWELl
)
2
(
SWEep:POINts
0
1)
FREQ:SPAN
=
SWEep:STEP
2
(
SWEep:POINts
0
1)
SWEep:xx:AUTO switches
DWELl TIME Switch Action
OFF OFF No coupling b etween SWEep:DWELl,
SWEep:TIME and SWEep:POINts.
OFF ON No coupling b etween SWEep:D WELl,
SWEep:TIME and SWEep:POINts.
ON OFF When SWEEP:TIME or SWEEP:POINts
are changed, SWEep:DWELl =
(SWEep:TIME / (SWEep:POINts
0
1))
0
5 mS.
SWEep:DWELl is limited to 100
s, minimum.
ON ON SWEep:DWELl = 100
s (MINimum).
SWEep:TIME = 5.1 ms
2
(SWEep:POINts
0
1)
SWEep:CONTrol:STATe ON|OFF|1|0
SWEep:CONTrol:STATe?
Sets and queries the state of the sweep control.
OFF Normal source mo de.
ON Use master slave source mo de.
*RST value is
OFF
.
SWEep:CONTrol:TYPE MASTer|SLAVe
SWEep:CONTrol:TYPE?
Sets and queries the swept signal generator, whether it is in master
or slave mo de. This applies in a dual source mo de. *RST v
alue is
MASTer
.
SWEep:DWELl <num>[time suffix]|MAXimum|MINimum
SWEep:DWELl? [MAXimum|MINimum]
Sets and queries the amount of time in seconds that the swept signal
generator stays (dwell) at each step after rep orting a
source settled
SRQ
and pulsing the
Trigger Out
line low. This one value is used at
each step when in the
SWE:TRIG:SOUR IMM
mo de of a stepp ed sweep.
Setting
SWEep:DWELL
sets
SWEep:DWELl:AUTO OFF
. *RST value is
100
s.
SWEep:DWELl:AUTO ON|OFF|1|0
SWEep:DWELl:AUTO?
Sets and queries the state of the automatic dw
ell calculation switch.
Setting
SWEep:DWELL
sets
SWEep:DWELl:AUTO OFF
. *RST state is
OFF
.
Operating and Programming Reference S-49
