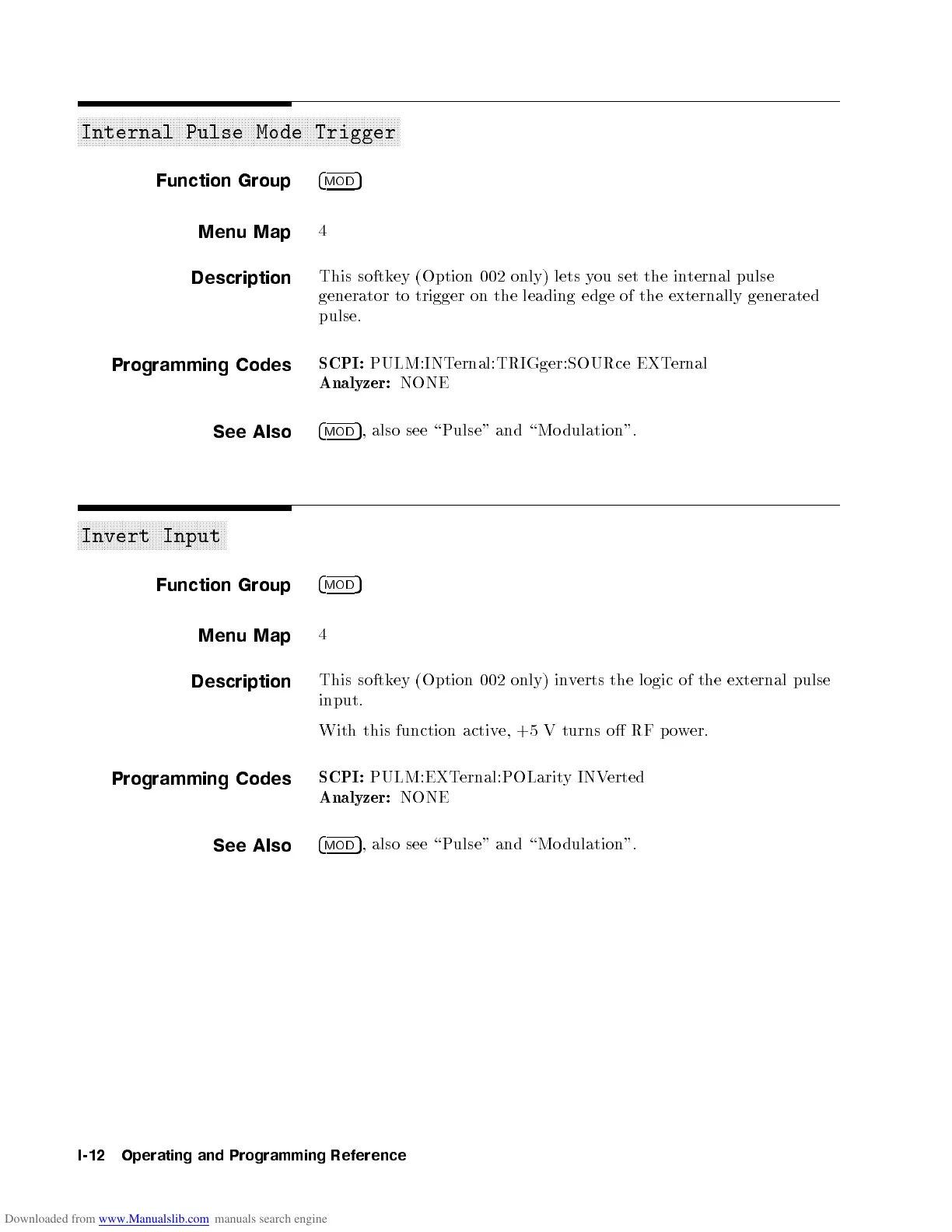

Internal Pulse Mode Trigger
Function Group
4
MOD
5
Menu Map
4
Description
This softkey (Option 002 only) lets you set the internal pulse
generator to trigger on the leading edge of the externally generated
pulse.
Programming Codes
SCPI: PULM:INTernal:TRIGger:SOURce EXTernal
Analyzer: NONE
See Also
4
MOD
5 , also see \Pulse" and \Mo dulation".
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
Invert Input
Function Group
4
MOD
5
Menu Map
4
Description
This softkey (Option 002 only) inverts the logic of the external pulse
input.
With this function active, +5 V turns o RF p o
wer.
Programming Codes
SCPI: PULM:EXTernal:POLarity INVerted
Analyzer: NONE
See Also
4
MOD
5 , also see \Pulse" and \Mo dulation".
