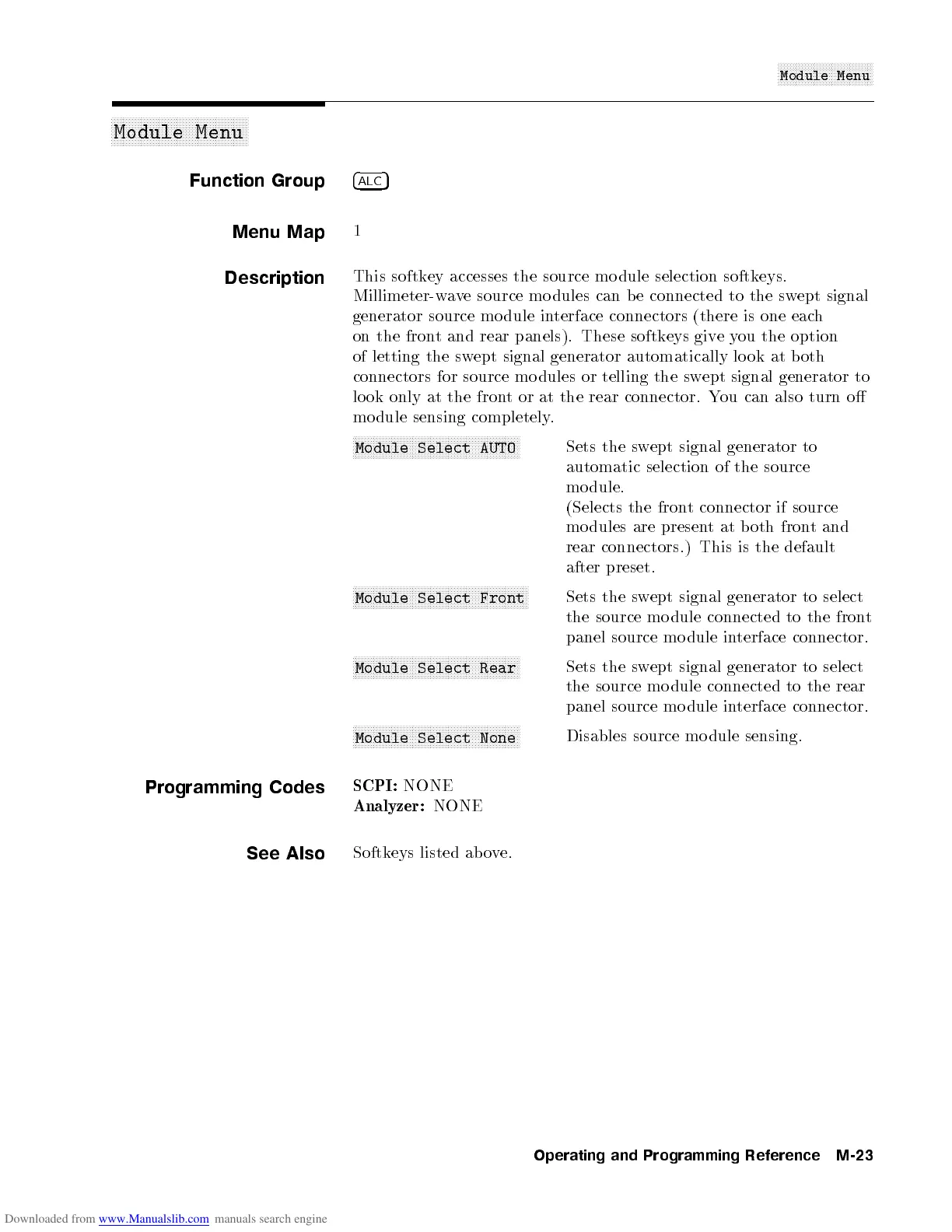

Module Menu
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
Module Menu
Function Group
4
ALC
5
Menu Map
1
Description
This softkey accesses the source mo dule selection softkeys.
Millimeter-wave source mo dules can be connected to the swept signal
generator source mo dule interface connectors (there is one each
on the front and rear panels). These softkeys giveyou the option
of letting the swept signal generator automatically lo ok at both
connectors for source mo dules or telling the swept signal generator to
lo ok only at the front or at the rear connector. You can also turn o
mo dule sensing completely.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Module Select AUTO
Sets the swept signal generator to
automatic selection of the source
mo dule.
(Selects the front connector if source
mo dules are present at both front and
rear connectors.) This is the default
after preset.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Module Select Front
Sets the swept signal generator to select
the source mo dule connected to the front
panel source mo dule interface connector.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Module Select Rear
Sets the swept signal generator to select
the source mo dule connected to the rear
panel source mo dule interface connector.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Module Select None
Disables source mo dule sensing.
Programming Codes
SCPI: NONE
Analyzer: NONE
See Also
Softkeys listed ab ove.
