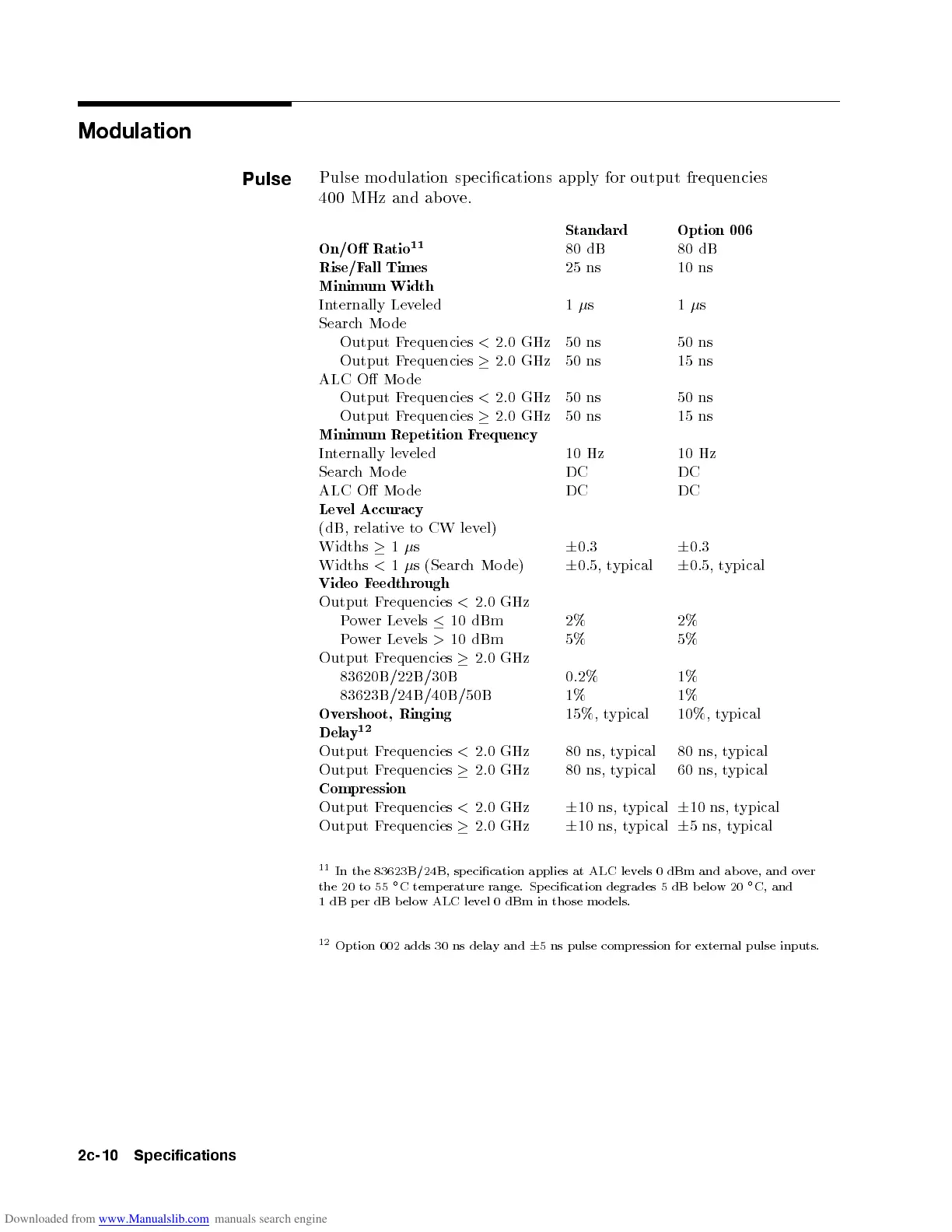

Modulation
Pulse
Pulse mo dulation sp ecications apply for output frequencies
400 MHz and ab ove.
Standard Option 006
On/O Ratio
11
80 dB 80 dB
Rise/Fall Times 25 ns 10 ns
Minimum Width
Internally Leveled 1  s 1  s
SearchMode
Output Frequencies < 2.0 GHz 50 ns 50 ns
Output Frequencies  2.0 GHz 50 ns 15 ns
ALC O Mode
Output Frequencies < 2.0 GHz 50 ns 50 ns
Output Frequencies  2.0 GHz 50 ns 15 ns
Minimum Rep etition Frequency
Internally leveled 10 Hz 10 Hz
SearchMode DC DC
ALC O Mode DC DC
Level Accuracy
(dB, relative to CW level)
Widths  1  s 6 0.3 6 0.3
Widths < 1  s (Search Mo de) 6 0.5, typical 6 0.5, typical
Video Feedthrough
Output Frequencies < 2.0 GHz
Power Levels  10 dBm 2% 2%
Power Levels > 10 dBm 5% 5%
Output Frequencies  2.0 GHz
83620B/22B/30B 0.2% 1%
83623B/24B/40B/50B 1% 1%
Oversho ot, Ringing 15%, typical 10%, typical
Delay
12
Output Frequencies < 2.0 GHz 80 ns, typical 80 ns, typical
Output Frequencies  2.0 GHz 80 ns, typical 60 ns, typical
Compression
Output Frequencies < 2.0 GHz 6 10 ns, typical 6 10 ns, typical
Output Frequencies  2.0 GHz 6 10 ns, typical 6 5 ns, typical
11
In the 83623B /24B, sp ecication applies at ALC levels 0 dBm and ab o
ve, and over
the 20 to 55

C temp erature range. Sp ecication degrades 5 dB b elow 20

C, and
1 dB p er dB b elow ALC level 0 dBm in those mo dels.
12
Option 002 adds 30 ns delay and 6 5 ns pulse compression for external pulse inputs.
2c-10 Specifications
