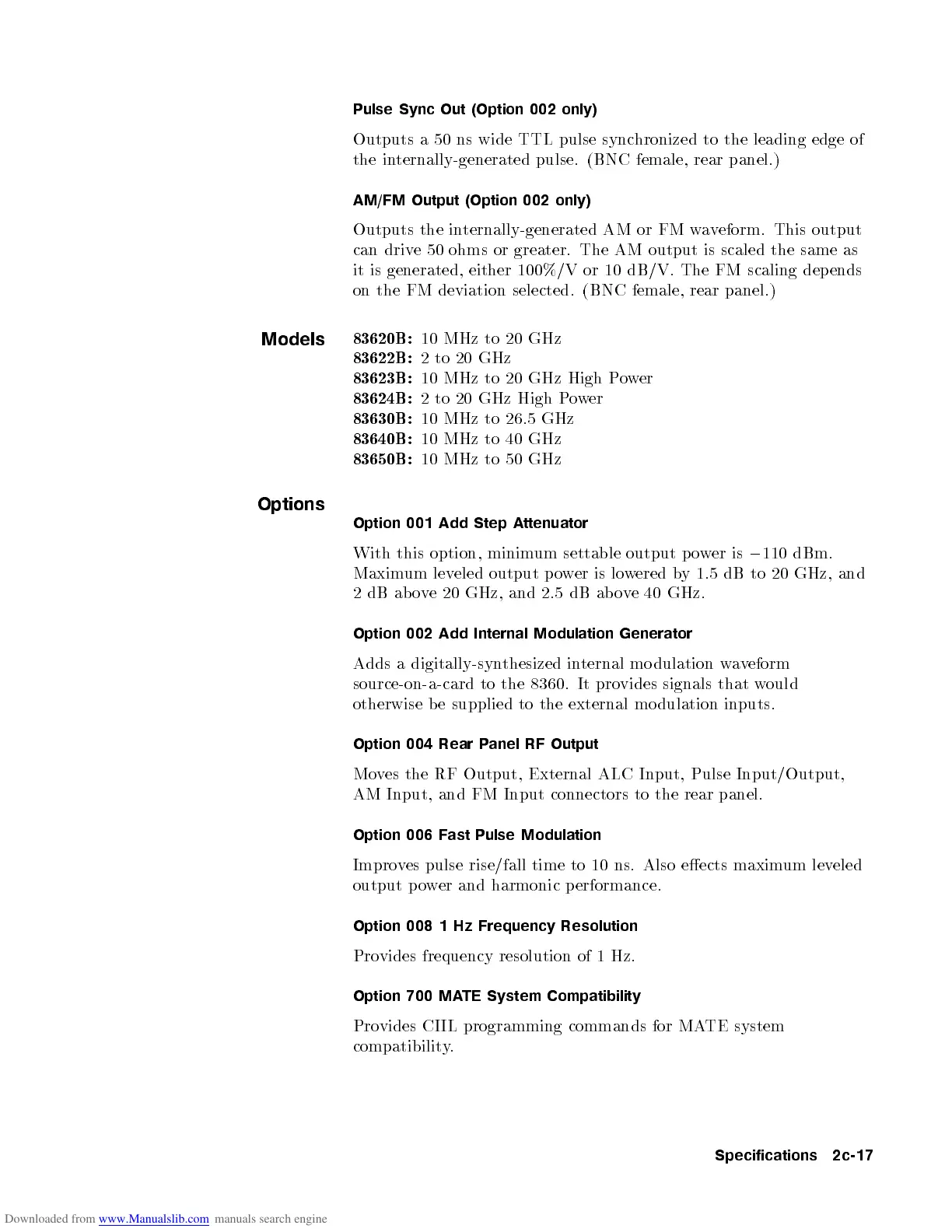

Pulse Sync Out (Option 002 only)
Outputs a 50 ns wide TTL pulse synchronized to the leading edge of
the internally-generated pulse. (BNC female, rear panel.)
AM/FM Output (Option 002 only)
Outputs the internally-generated AM or FM waveform. This output
can drive 50 ohms or greater. The AM output is scaled the same as
it is generated, either 100%/V or 10 dB/V. The FM scaling depends
on the FM deviation selected. (BNC female, rear panel.)
Models
83620B:
10 MHz to 20 GHz
83622B:
2 to 20 GHz
83623B:
10 MHz to 20 GHz High Power
83624B:
2 to 20 GHz High Power
83630B:
10 MHz to 26.5 GHz
83640B:
10 MHz to 40 GHz
83650B:
10 MHz to 50 GHz
Options
Option 001 Add Step Attenuator
With this option, minimum settable output p ower is
0
110 dBm.
Maximum leveled output power is lowered by 1.5 dB to 20 GHz, and
2dBabove 20 GHz, and 2.5 dB ab o
ve 40 GHz.
Option 002 Add Internal Modulation Generator
Adds a digitally-synthesized internal mo dulation waveform
source-on-a-card to the 8360. It provides signals that would
otherwise be supplied to the external mo dulation inputs.
Option 004 Rear Panel RF Output
Moves the RF Output, External ALC Input, Pulse Input/Output,
AM Input, and FM Input connectors to the rear panel.
Option 006 Fast Pulse Modulation
Improves pulse rise/fall time to 10 ns. Also eects maxim
um leveled
output p ower and harmonic performance.
Option 008 1 Hz Frequency Resolution
Provides frequency resolution of 1 Hz.
Option 700 MATE System Compatibility
Provides CIIL programming commands for MATE system
compatibility.
Specifications 2c-17
