Installation Procedure
1. Refer to Figure 3-6. Remove handle trim strips.
2. Remove the four screws on each side that attach the handles to
the instrument.
3. Using the longer screws provided, attach the rack mount anges to
the outside of the handles.
4. Remove the b ottom and back feet and the tilt stands b efore rack
mounting the instrument.

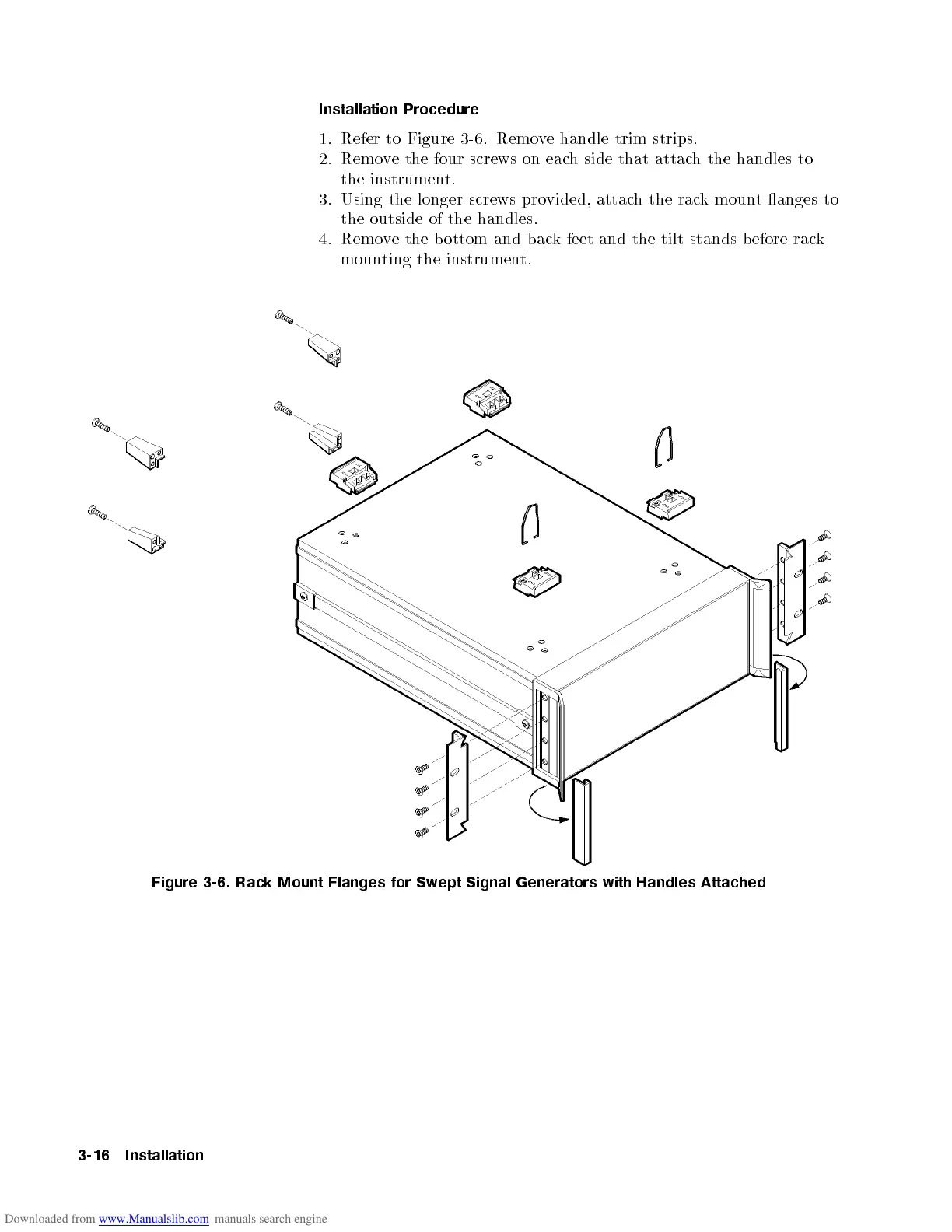

Figure 3-6. Rack Mount Flanges for Swept Signal Generators with Handles Attached
3-16 Installation
