Making Time Domain Measurements
Making Transmission Response Measurements
5. To transform the data from the frequency domain to the time domain and set the sweep from 0 s to 6 s,
press:
The other time domain modes, low pass step and low pass impulse, are described in "Time Domain Low
Pass Mode" on page 3-15.
6. To better view the measurement trace, press:
and turn the front panel knob, or enter a value from the front
panel keypad.
7. To measure the peak response from the main path, press:
The three responses shown in Figure 3-3 are the RF leakage near zero seconds, the main travel path
through the filter, and the triple travel path through the filter. Only the combination of these responses
was evident to you in the frequency domain.

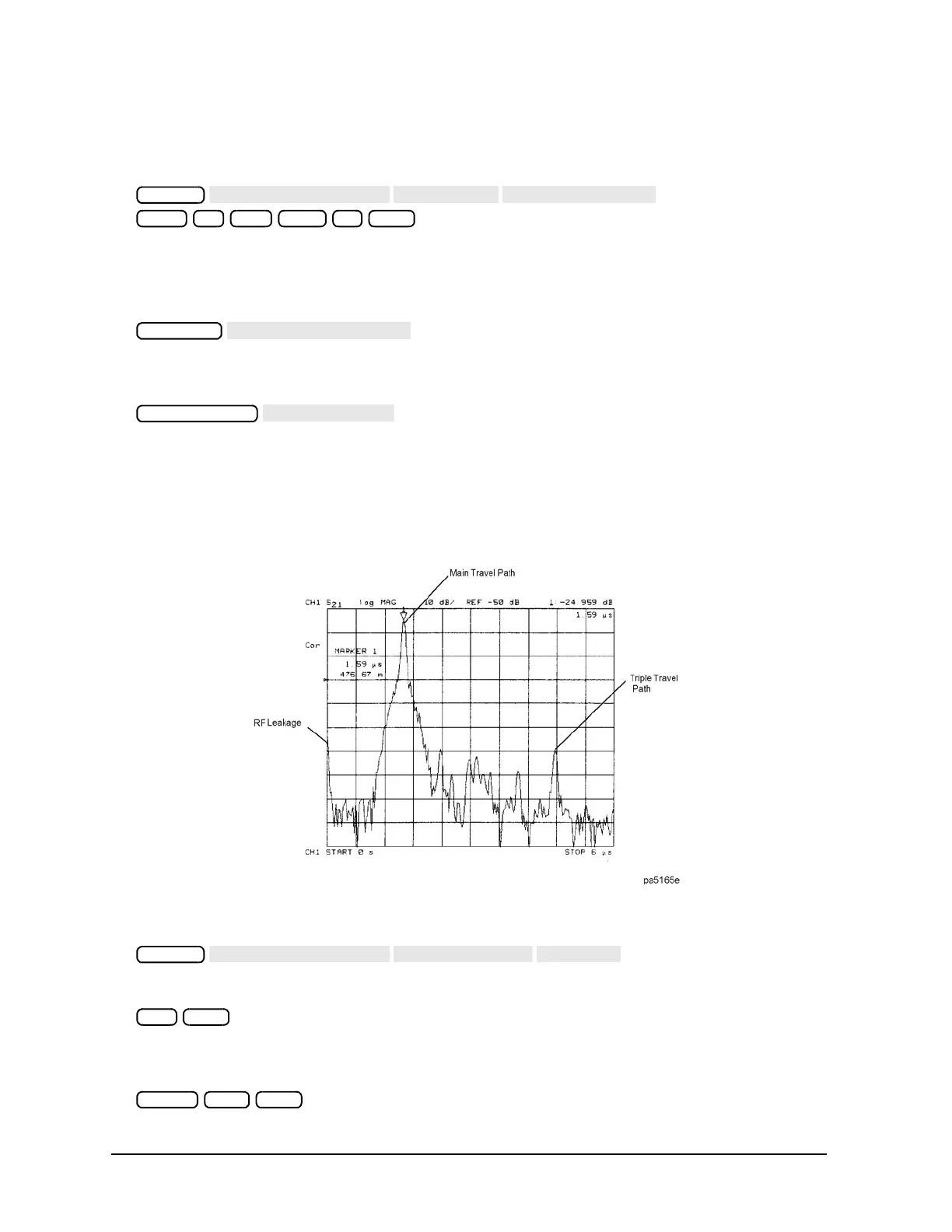

Figure 3-3 Time Domain Transmission Example Measurement
8. To access the gate function menu, press:
9. To set the gate parameters, by entering the marker value, press:
, or turn the front panel knob to position the center gate marker. This marker, shaped like a
“T”, is shown in Figure 3-4.
10. To set the gate span, press:
or turn the front panel knob to position the "flag" gate markers.
