Exploded Parts Views of the Flame Ionization Detector
Maintaining Your GC 143

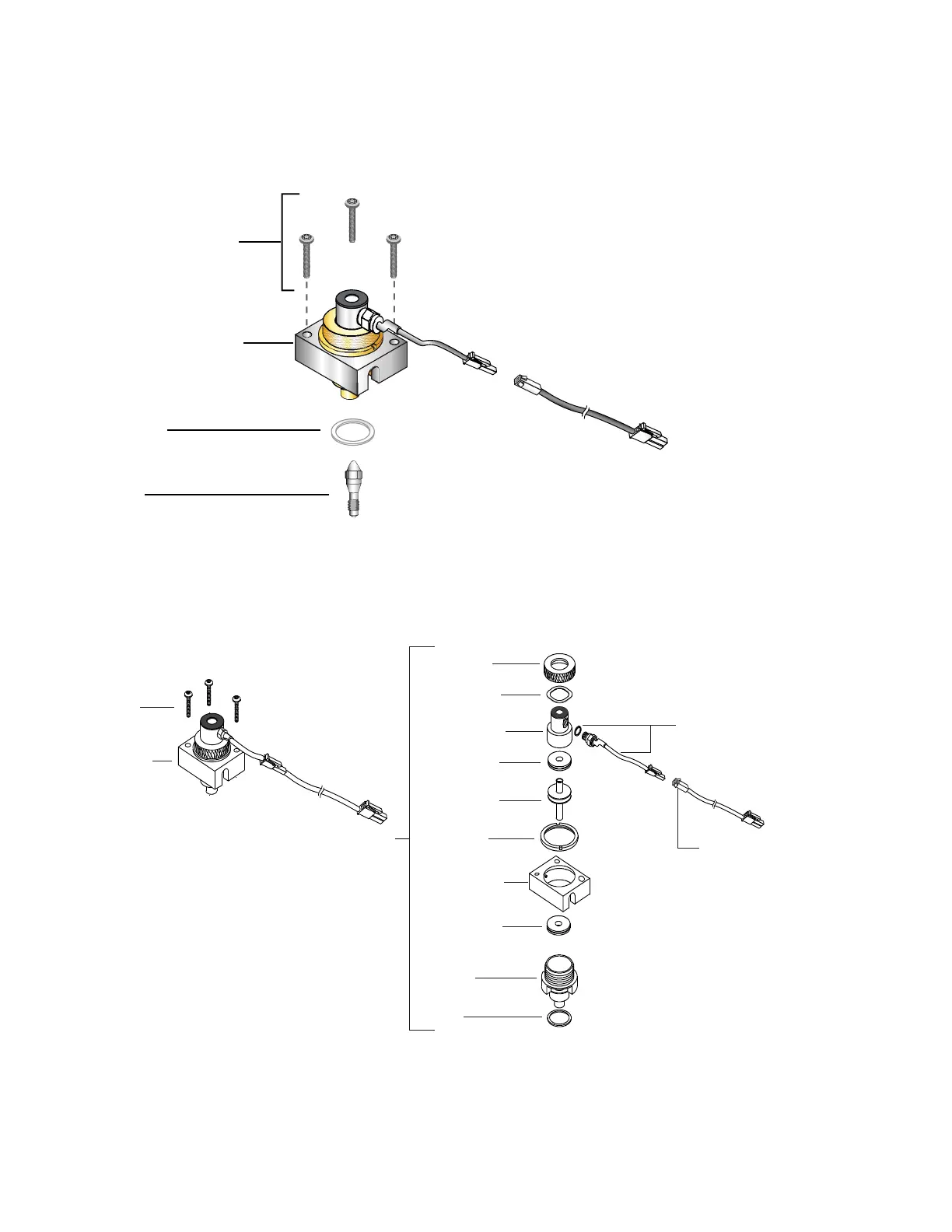

Figure 13. FID exploded parts view
Figure 14. FID collector assembly exploded parts view
25-mm screws
Collector assembly
Gasket
Jet
25-mm
screws
Collector
assembly
Collector nut
Spring washer
Ignitor castle
Upper collector
insulator
Collector body
Spanner nut
(collector)
Collector mount
Lower collector
insulator
Collector
housing
Gasket
Ignitor (glow plug)
assembly with
O-ring
Ignitor cable
assembly
