5 Maintaining the Split/Splitless Inlet
To Change the Septum on the Split/Splitless Inlet
50 Maintaining Your GC
To Change the Septum on the Split/Splitless Inlet
1 Gather the following:
• Replacement septum, see “Consumables and Parts for the Split/Splitless Inlet” on
page 42.
• Wrench, hex for changing septum
• 0- or 00-grade steel wool (optional)
• Tweezers
• Wrench, capillary inlet (optional)
2 Launch the GC maintenance wizard: Maintenance > Inlets, select the inlet, then select
Perform Maintenance > Replace Septum > Start Maintenance. The wizard will walk
through the steps needed to replace the septum (those same steps are repeated below).
Be careful! The oven and/or inlet may be hot enough to cause burns. If the inlet is hot, wear
heat-resistant gloves to protect your hands.
3 Remove the septum retainer nut or Merlin cap.
4 Use tweezers to remove the septum or Merlin Microseal from the insert assembly. Do not
gouge or scratch the interior of the insert assembly.
5 Firmly press the new septum or Merlin Microseal into the fitting. The metal parts side of
the Merlin Microseal should face down (toward the oven).
6 Install the septum retainer nut or Merlin cap and finger-tighten. Tighten the septum retainer
nut until the C-ring is about 1 mm above the nut.

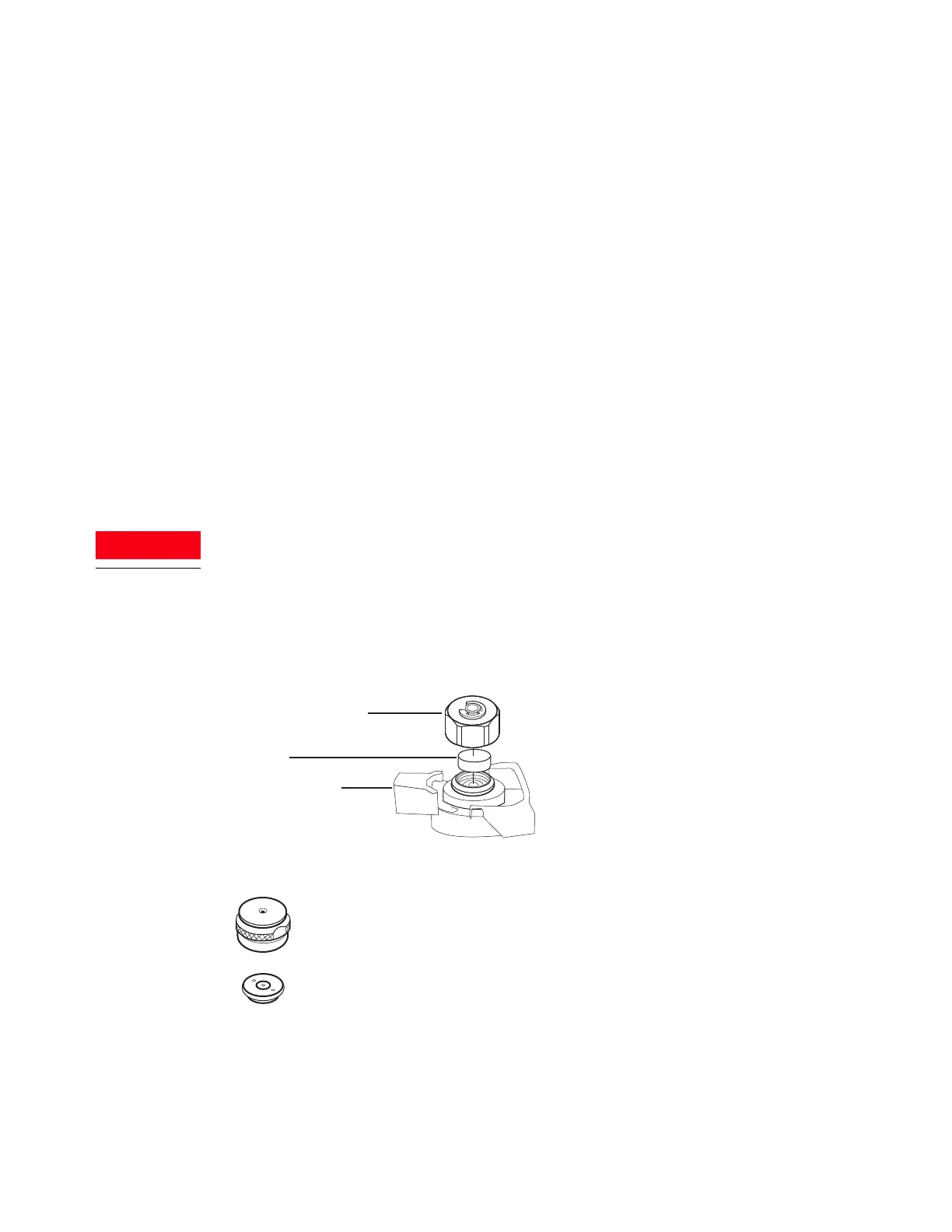

Septum retainer nut
Septum
Insert assembly
