Agilent Technologies 8860 - Exploded Parts Views of the Flame Ionization Detector

9 Maintaining the FID
Exploded Parts Views of the Flame Ionization Detector
142 Maintaining Your GC
Exploded Parts Views of the Flame Ionization
Detector

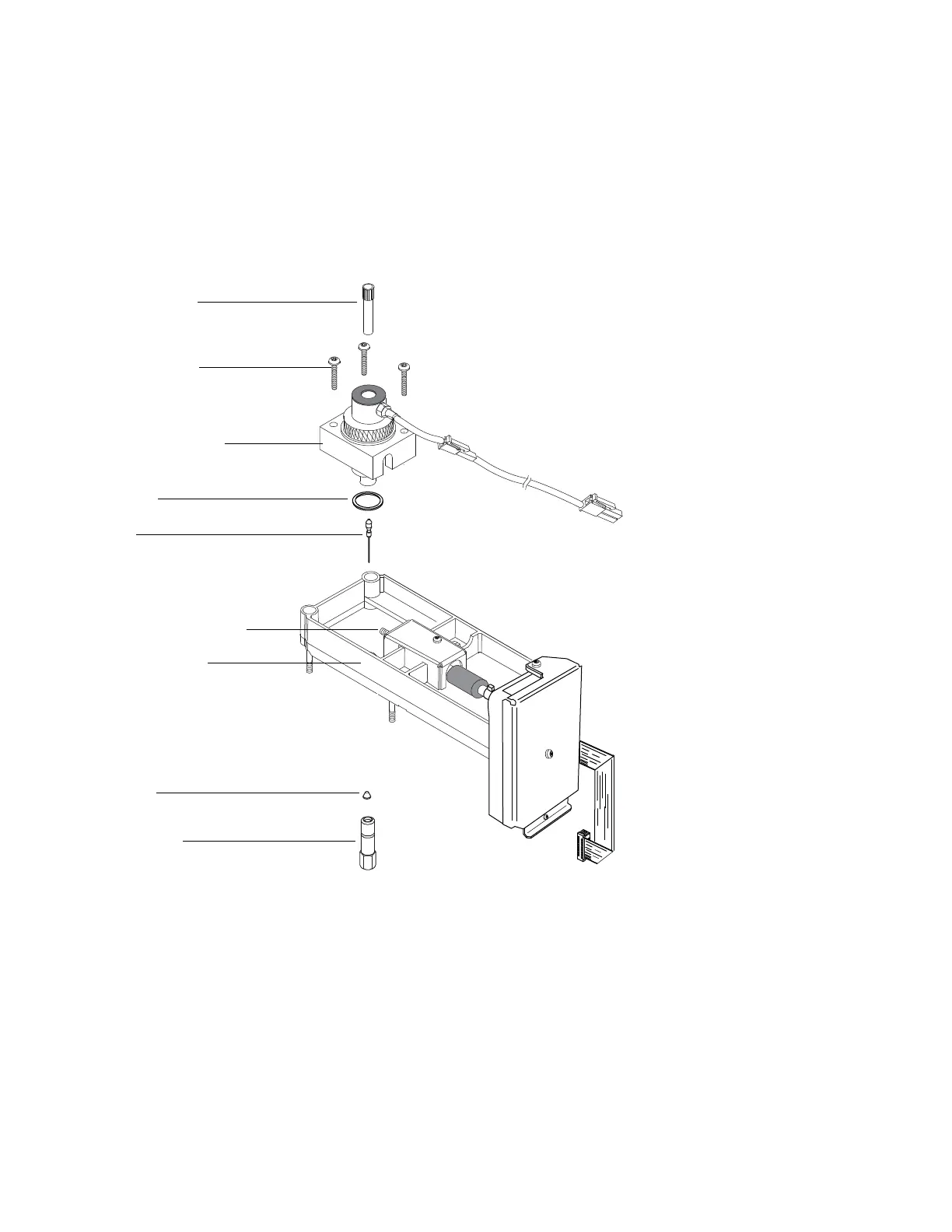

Figure 12. Flame ionization detector (FID) assembly exploded parts
PTFE chimney
25-mm screws
Collector assembly
Gasket
Jet
Spring, FID interconnect
Mounting pallet
Ferrule
Column adapter
Ferrule
Column nut
