74 Chapter 4
Troubleshooting
Troubleshooting Using Diagnostics Test

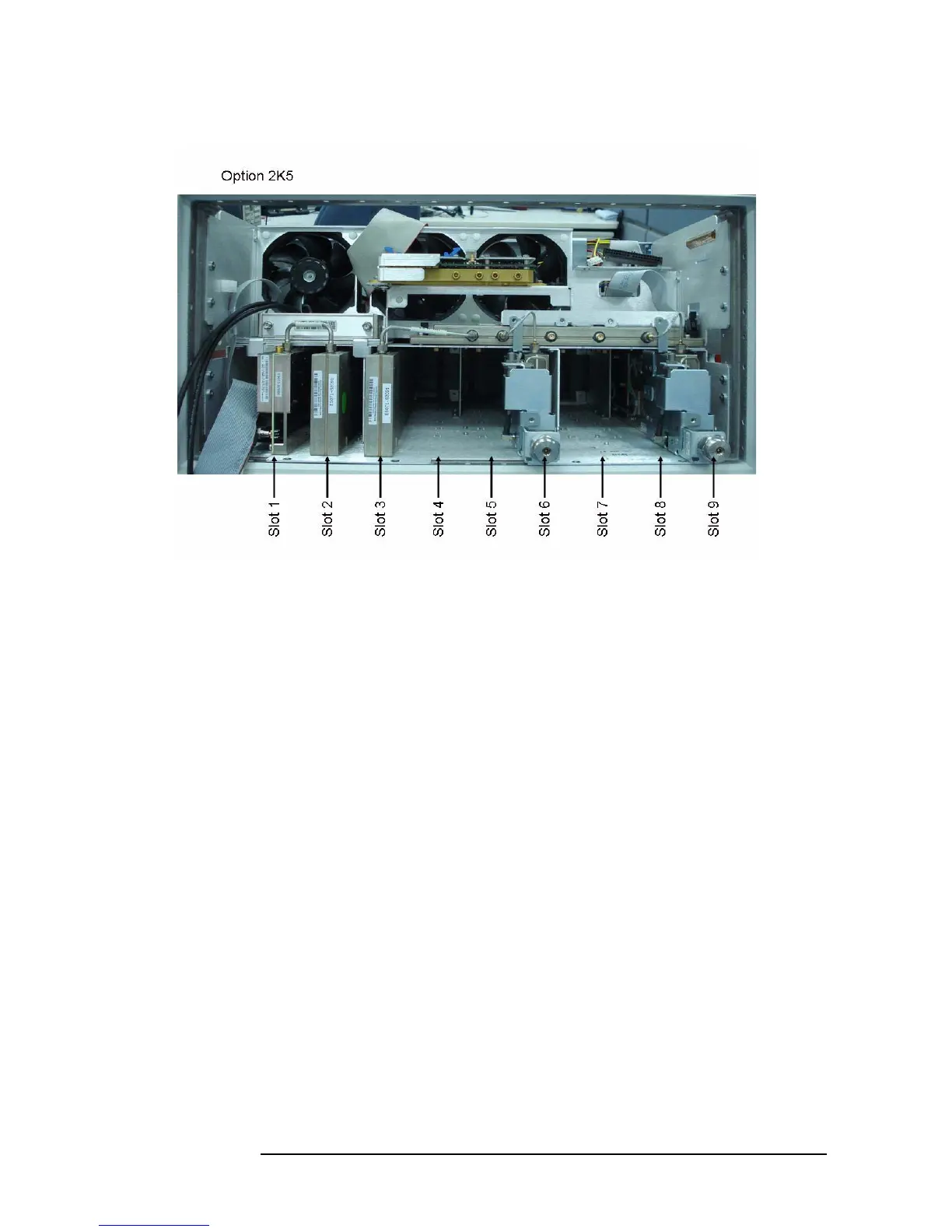

Figure 4-14 Module configulation for 2-port of option
Slot 1:TBR Tested Level Doubler Module
Slot 2: Synthesizer Module for Source
Slot 3: Synthesizer Module for Local
Slot 6: Receiver Board of port 1
Slot 9: Receiver Board of port 2
To Next Page
